Yamaha DSP-AZ2 Service Manual

31
RX-V3300/DSP-AZ2
RX-V3300/DSP-AZ2
Sub-menu CENTER SP REAR SP MAIN SP MAIN LEVEL LFE/BASS
1 MAIN: SMALL 0dB LARGE LARGE SMALL 0dB SWFR
2 MAIN: LARGE -10dB LARGE LARGE LARGE -10dB BOTH
3 CENTER: NONE NONE LARGE LARGE 0dB BOTH
4 LFE/BASS: MAIN SMALL SMALL LARGE 0dB MAIN
5 FRONT MIX: 5CH LARGE LARGE LARGE 0dB BOTH
6 REAR CENTER: MUTE LARGE LARGE LARGE 0dB BOTH
7 REAR L/R: MUTE LARGE LARGE LARGE 0dB BOTH

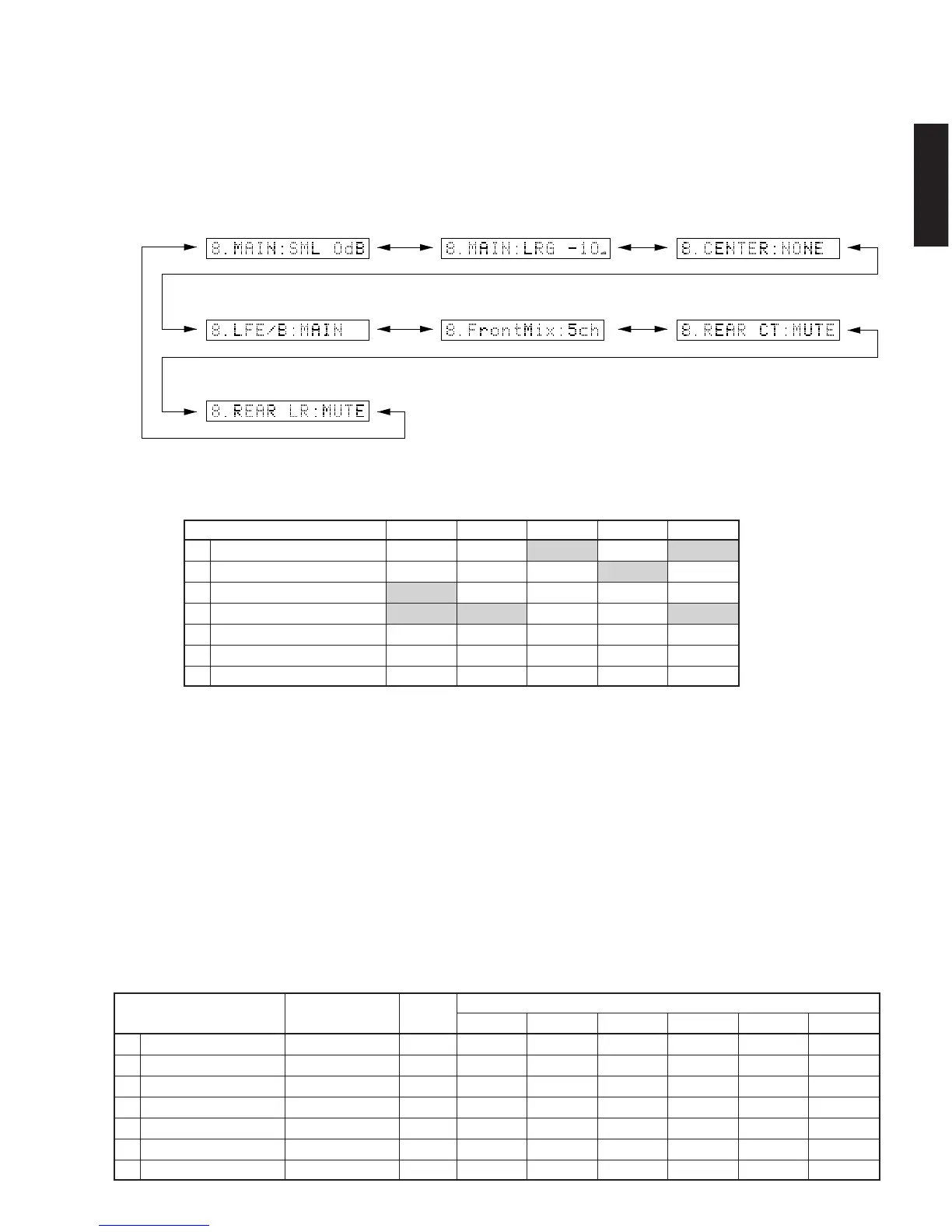

8. SPEAKERS SET
The input signal is automatically identified in the order
of dts → DOLBY DIGITAL → AAC→ PCM → Analog.
There are seven sub-menu items as follows. The
signals output from the DSP block are the same as 1.
YSS938: YSS 0dB.
LARGE: This mode is used with a speaker with high
bass reproduction performance (a large
unit). Full bandwidth signals are output.
SMALL: This mode is used with a speaker with low
bass reproduction performance (a small
unit). The signals of 90Hz or less are mixed
into the channel specified by LFE/BASS.
NONE: This mode is used with no center speaker.
The center content is reduced by 3dB and
distributed to MAIN L/R.
The analog switch settings for each sub-menu are as
shown in the table below.
MAIN: SMALL 0dB MAIN: LARGE -10dB 
LFE: BASS:MAIN Front Mix: 5ch REAR CENTER: MUTE
REAR L/R: MUTE
Reference data
INPUT: DVD ANALOG
SUBWOOFER: 50Hz, Others: 1kHz
Sub-menu Input level Volume
PRE OUTPUT
MAIN L/R FRONT L/R CENTER REAR L/R REAR CENTER SUBWOOFER
1 MAIN: SMALL 0dB Both ch, -20 dBV -10 dB -14.3 dBV -16.9 dBV -15.2 dBV -15.2 dBV -15.7 dBV +5.1 dBV
2 MAIN: LARGE -10dB Both ch, -20 dBV -10 dB -24.3 dBV -16.9 dBV -15.2 dBV -15.2 dBV -15.7 dBV +0.9 dBV
3 CENTER: NONE Both ch, -20 dBV -10 dB -18.7 dBV -16.9 dBV - ∞ -15.2 dBV -15.7 dBV +0.9 dBV
4 LFE/BASS: MAIN Both ch, -20 dBV -10 dB -20.2 dBV -16.9 dBV -15.2 dBV -15.2 dBV -15.7 dBV - ∞
5 FRONT MIX: 5CH Both ch, -20 dBV -10 dB -17.0 dBV -16.9 dBV -15.2 dBV -15.2 dBV -15.7 dBV +0.9 dBV
6 REAR CENTER: MUTE Both ch, -20 dBV -10 dB -14.3 dBV -16.9 dBV -15.2 dBV -15.2 dBV -15.7 dBV +0.9 dBV
7 REAR L/R: MUTE Both ch, -20 dBV -10 dB -14.3 dBV -16.9 dBV -15.2 dBV - ∞ -15.7 dBV +0.9 dBV
8. SPEAKERSSET





 


 



 




