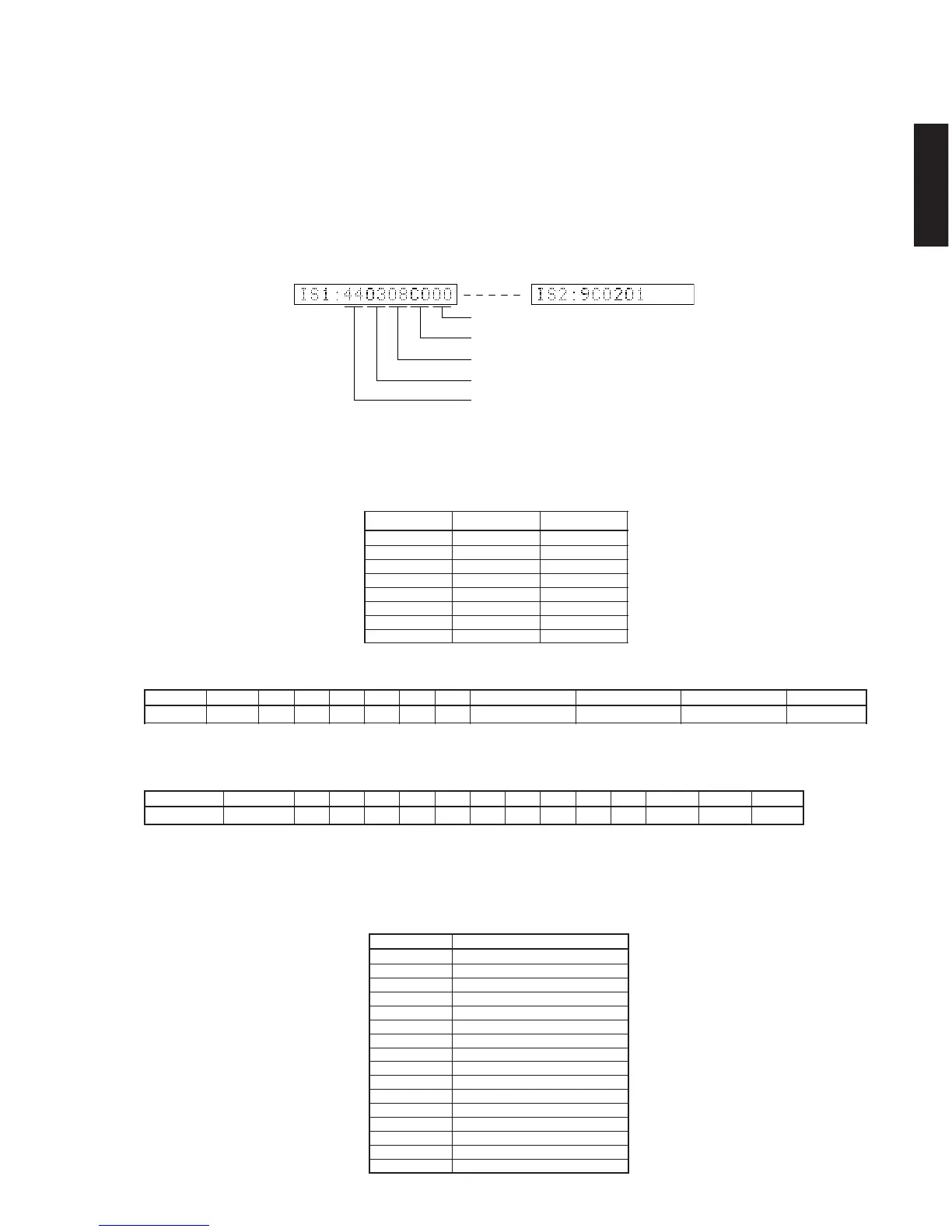

14. IF STATUS (Input function status)
Using the sub-menu, the status data is displayed one after
another in the hexadecimal notation.
During signal processing, the status before execution of
this menu is maintained.
* Numeric values in the figure example are for reference.
<1st byte> Digital input/output setting value
Upper 4 bits: REC OUT selected /
lower 4 bits: INPUT selected
Display 00 01 02 03 04 05 06 0A 0B 0C 0D
Fs (kHz) Analog 32 44.1 48 64 88.2 96 Unknown NRM Unknown DBL Unknown QUAD Not defined
<4th byte> Format information of reproduction signal
*1: Analog processing used for digital reproduction is not
possible because of a commercial bit or 4-ch audio
reason.
<2nd byte> Fs information of reproduction signal
<3rd byte> Audio code mode information of
reproduction signal
Display 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D
Audio Code
MULTI MONO
1+1 1/0 2/0 3/0 2/1 3/1 2/2 3/2 2/3 3/3
OVER 6.1
MULTI PCE Unknown
Display Signal format
00 Analog (Unlock)
01 Incorrect digital (*1)
10 PCM Audio
20 Digital Data
21 IEC1937 Data
22 None PCM
23 Unknown
50 dts
51 Red dts
54 dts-ES MATRIX
58 dts-ES DISCRETE
5C dts-ES (Both flag)
60 AAC
C0 Dolby Digital
C1 D.D. Karaoke
C4 D.D.6.1 (D.D.EX)
IS1-2 (Internal status):
Indicates the status information of the microprocessor.
14.IFSTATUS
IS1-2（内部ステータス）:
1st byte
5th byte
4th byte
3rd byte
2nd byte
Value Choice Preset name
0 NONE
1 OPT A V-AUX
2 OPT B CD
3 OPT C CD-R
4 OPT D DVD
6 OPT F D-TV/LD
8 COAX A CD
9 COAX B CBL/SAT
