Yamaha DSP-AZ2 - DIAG Menu Details (Continued); 2. YSS-SD Function Details; YSS-SD Full Bit Output Details

24
RX-V3300/DSP-AZ2
RX-V3300/DSP-AZ2


 








 
   



















Analog
Digital



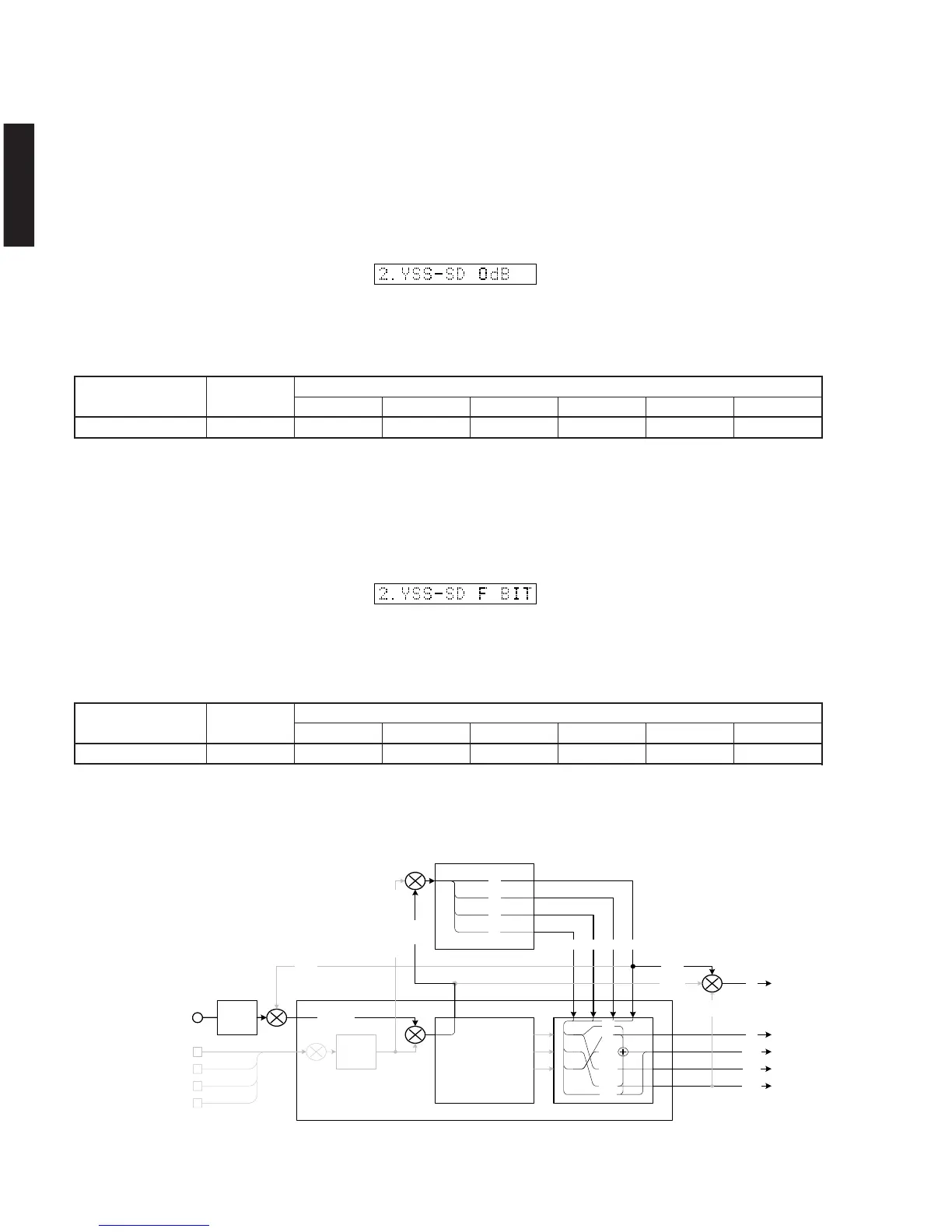

2. YSS-SD
8 channels are made usable by AP32. The signal
enters YSS938 through the Sub DSP passage and then
undergoes through-output.
CS49329 is selected for the Main L/R output. Using the
sub-menu, it is possible to select full bit output at 0dB
output level.
2. YSS-SD
 

 


Reference data
INPUT: DVD ANALOG
SUBWOOFER: 50Hz, Others: 1kHz
DSP THROUGH ~
YSS-SD (Analog)
YSS-SD FULL BIT
• The signal is output in digital full bit without including
the head margin.
• The SWFR signal is output but not in digital full bit.
YSS-SD 0dB YSS-SD0dB
YSS-SDFULLBIT

 

Reference data
INPUT: DVD ANALOG
SUBWOOFER: 50Hz, Others: 1kHz
Input level Volume
PRE OUTPUT
MAIN L/R FRONT L/R CENTER REAR L/R REAR CENTER SUBWOOFER
Both ch, -20 dBV -10 dB -13.6 dBV -14.8 dBV -13.5 dBV -13.6 dBV -13.6 dBV +2.8 dBV
Input level Volume
PRE OUTPUT
MAIN L/R FRONT L/R CENTER REAR L/R REAR CENTER SUBWOOFER
Both ch, -20 dBV -10 dB -13.6 dBV -8.8 dBV -7.5 dBV -1.6 dBV -7.6 dBV +2.8 dBV
(Shaded items not used in this example)
