26
RX-V3300/DSP-AZ2
RX-V3300/DSP-AZ2
Analog
Digital

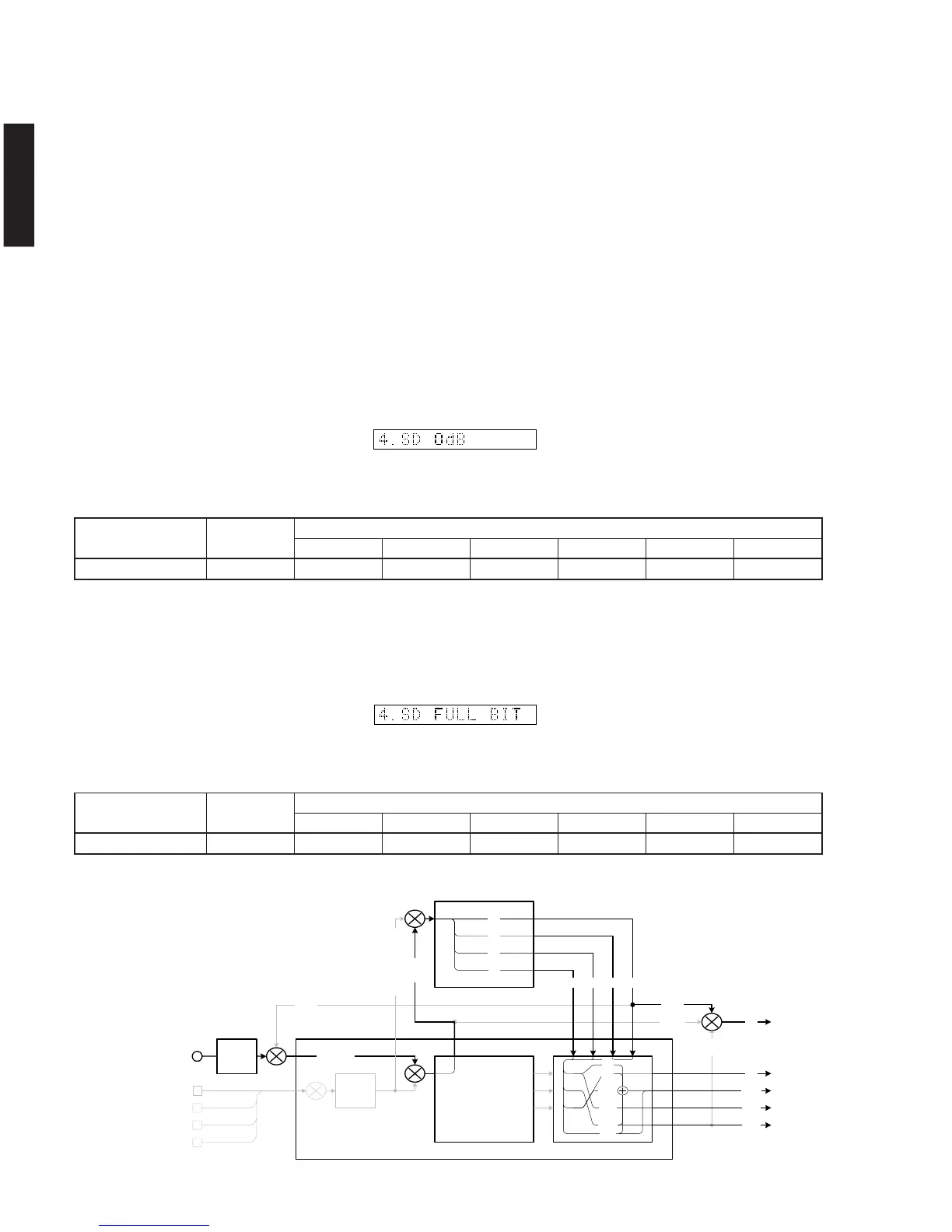

4. SECOND DECODER
8 channels are made usable by AP32. The signal
enters YSS938 through the Sub DSP passage and then
undergoes through-output.
CS49329 is selected for the Main L/R output. Using the
sub-menu, it is possible to select full bit output at 0dB
output level.
* As a 3dB margin of CS is always effective for RC
when decoding dts ES, even when the output in full
bit is specified, the RC output remains up to 0dBFS
when 0dBFS is input to LS/RS.
DSP THROUGH ~
CS (Analog)
(Use of SD only is not available
due to restriction of the passage.)
SD FULL BIT
• The signal is output in digital full bit without including
the head margin.
• The SWFR signal is output but not in digital full bit.
SD 0dB
• The signal is output including the head margin.
Head margin:
Main L/R: -18dBFS, Center: -6dBFS, Rear Center:
-6dBFS, FL/FR: -6dBFS, RL/RR: -18dBFS, SWFR:
Add L/R signal at -20dBFS.
Reference data
INPUT: DVD ANALOG
SUBWOOFER: 50Hz, Others: 1kHz
4. SECONDDECODER
SDFULLBIT
SD0dB
Reference data
INPUT: DVD ANALOG
SUBWOOFER: 50Hz, Others: 1kHz
Input level Volume
PRE OUTPUT
MAIN L/R FRONT L/R CENTER REAR L/R
REAR CENTER
SUBWOOFER
Both ch, -20 dBV -10 dB -13.6 dBV -14.8 dBV -13.5 dBV -13.6 dBV -13.6 dBV +2.8 dBV
Input level Volume
PRE OUTPUT
MAIN L/R FRONT L/R CENTER REAR L/R
REAR CENTER
SUBWOOFER
Both ch, -20 dBV -10 dB -13.6 dBV -8.8 dBV -7.5 dBV -1.6 dBV -7.6 dBV +2.8 dBV
(Shaded items not used in this example)
