RX-V3300/DSP-AZ2
59
FUNCTION P. C. B.
(Surface Mount Device)

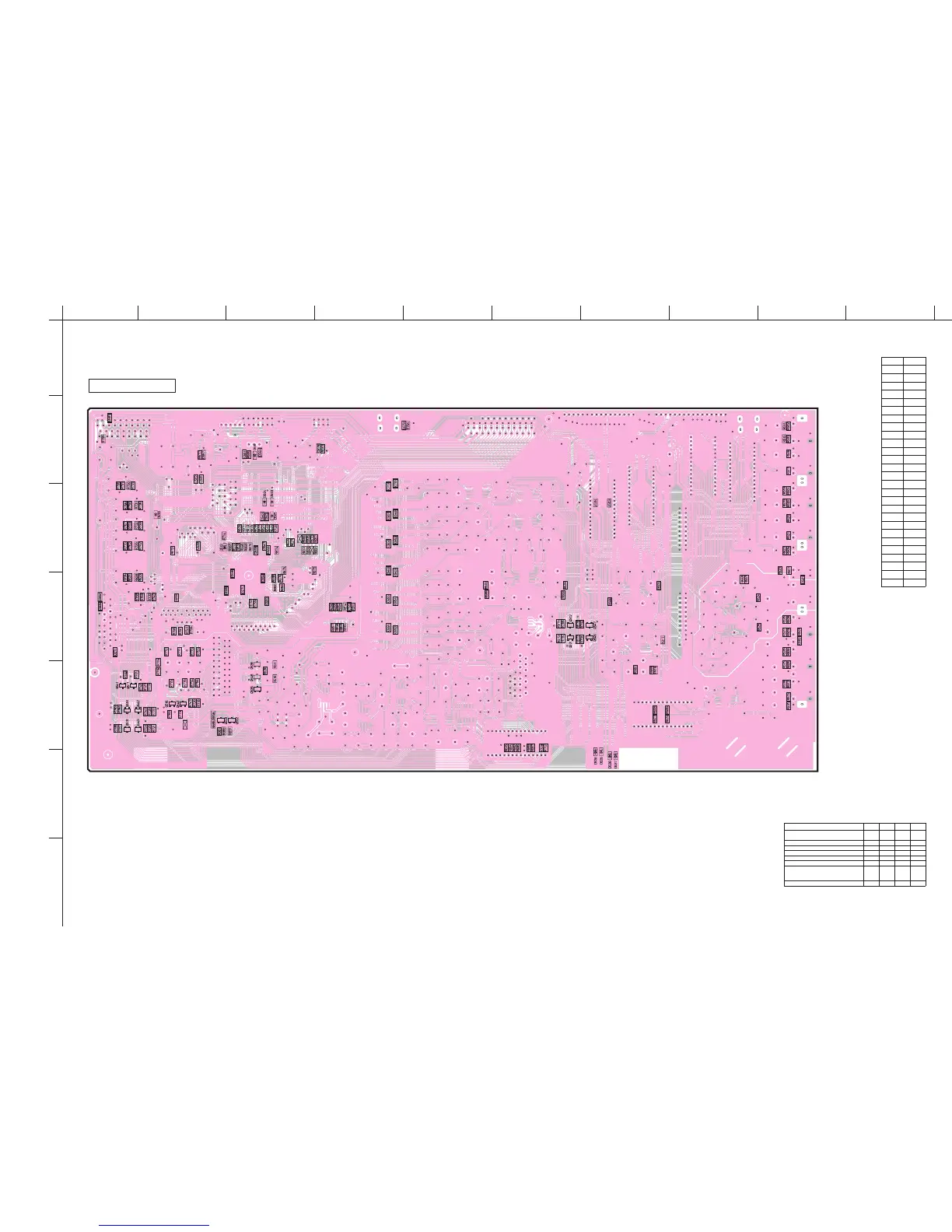

■ PRINTED CIRCUIT BOARD (Foil side)
Ref. No. Location
D503 C3
D504 C3
D505 C3
D510 C2
D513 B3
D535 G6
D536 G6
D537 G6
D538 G6
D539 B3
Q501 F4
Q502 F4
Q516 B5
Q517 A5
Q518 A5
Q519 A5
Q535 C5
Q536 C5
Q540 B5
Q541 A5
Q542 A5
Q543 A5
Q546 G4
Q547 G4
Q548 C5
Q550 B5
Q552 C5
• Semiconductor Location
Circuit No. J, R, T, K UAB, G
C501, 502, 504, 505, 517, 518, 533, 666, 671, X O O X
676, 678, 684~690, 693, 694, 747, 748
C603, 604 X X O O
D533~539 X O O X
IC526~528 X O O X
J501~504 O X X O
Q501, 502, 507, 508, 535, 536, 546~548 X O O X
R510, 511, 534~537, 573, 574, 577, 578, 594,
598, 601, 623, 628, 647, 649, 657, 665, 671, X O O X
700, 710, 786, 791, 792, 833
R661, 672, 806 O X X O
X: NOT USED
O: USED / APPLICABLE
