POWR
Power unit
5-7
60C5D11

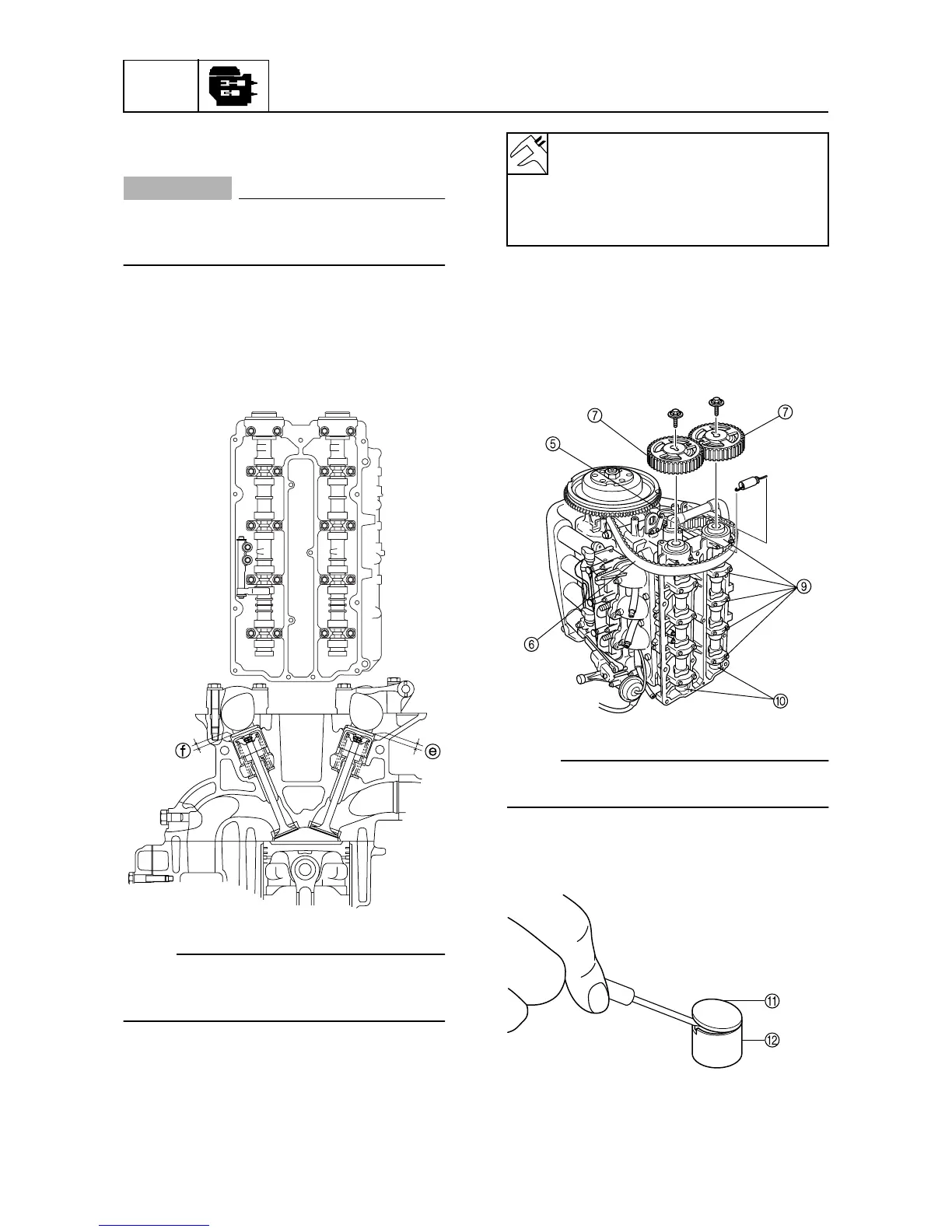

6. Turn the flywheel magnet 360° clock-
wise.
CAUTION:
Do not turn the flywheel magnet counter-
clockwise, otherwise the valve system
may be damaged.
7. Check the intake valve clearance for cyl-
inders #3 and #4, and the exhaust valve
clearance for cylinders #2 and #4. Adjust
if out of specification.
NOTE:
• Check the valve clearance when the engine
is cold.
• Note the measurement.
8. Adjust the valve clearance if out of speci-
fication. Loosen the tensioner bolt
5
,
and then remove the timing belt
6
,
driven sprockets
7
, camshaft caps
9
,
and camshafts
0
.
NOTE:
Do not mix the valve train parts. Keep them
organized in their proper groups.
9. Remove the valve pad
A
from the valve
lifter
B
using a thin screwdriver.
S60C3250
INEX
#1
#2
#3
#4
Valve clearance:
Intake
e
:
0.20
±
0.03 mm (0.008
±
0.001 in)
Exhaust
f
:
0.34
±
0.03 mm (0.013
±
0.001 in)
S60C3260
S60C3270
