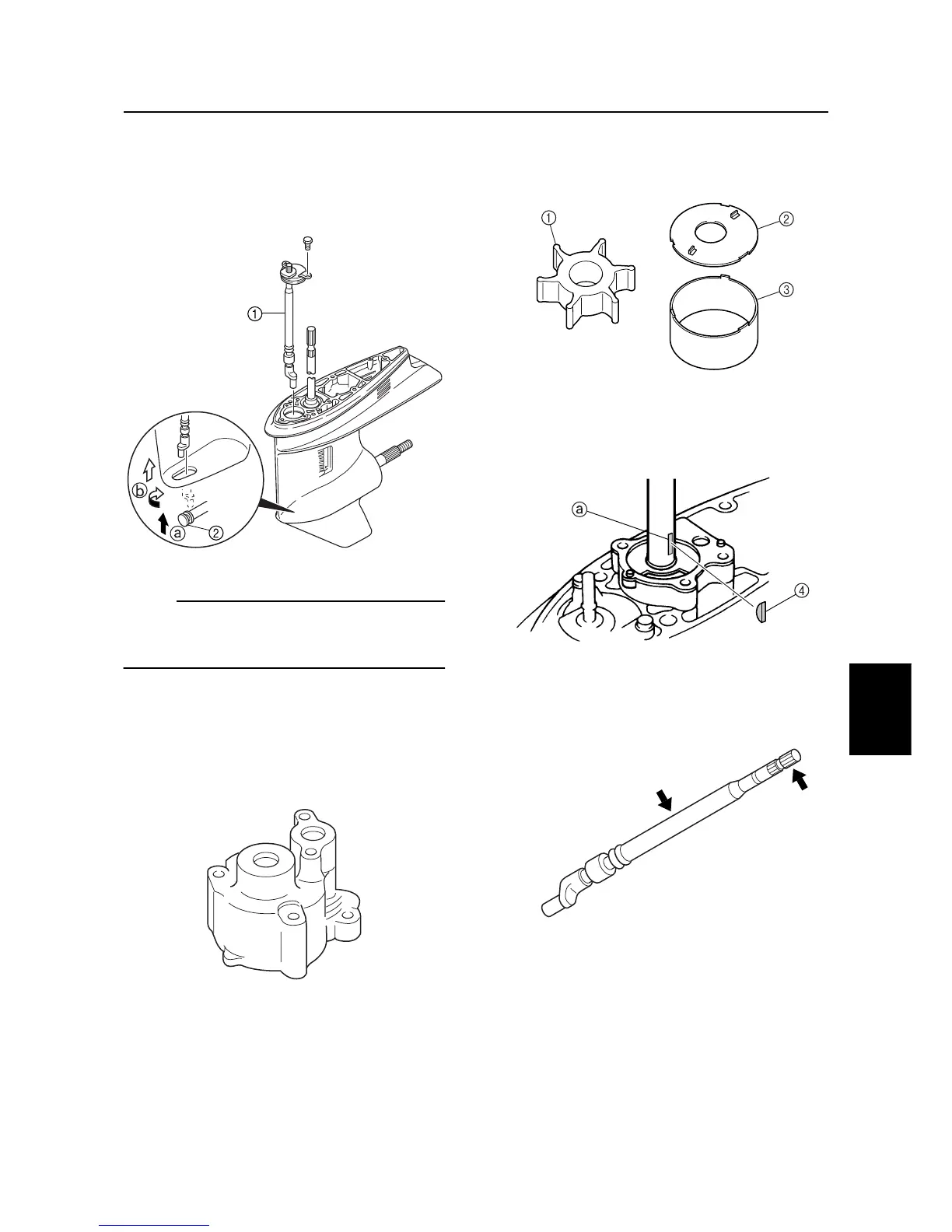

Removing the water pump and shift
rod
1. Remove the water pump assembly and
shift rod assembly
1
.
NOTE:
Pull up the shift rod assembly a little
a
to dis-
connect it from the shift slider
2
, turn it clock-
wise 90°
b
, and then remove it.
Checking the water pump and shift
rod
1. Check the pump housing for deforma-
tion. Replace if necessary.
2. Check the impeller
1
, inner plate car-
tridge
2
and insert plate cartridge
3
for
cracks or wear. Replace if necessary.
3. Check the Woodruff key
4
and the
groove
a
on the drive shaft for wear.
Replace if necessary.
4. Check the shift rod for cracks or wear.
Replace if necessary.
S60C6405
S60C6410
S60C6415
S60C6420
S60C6425
