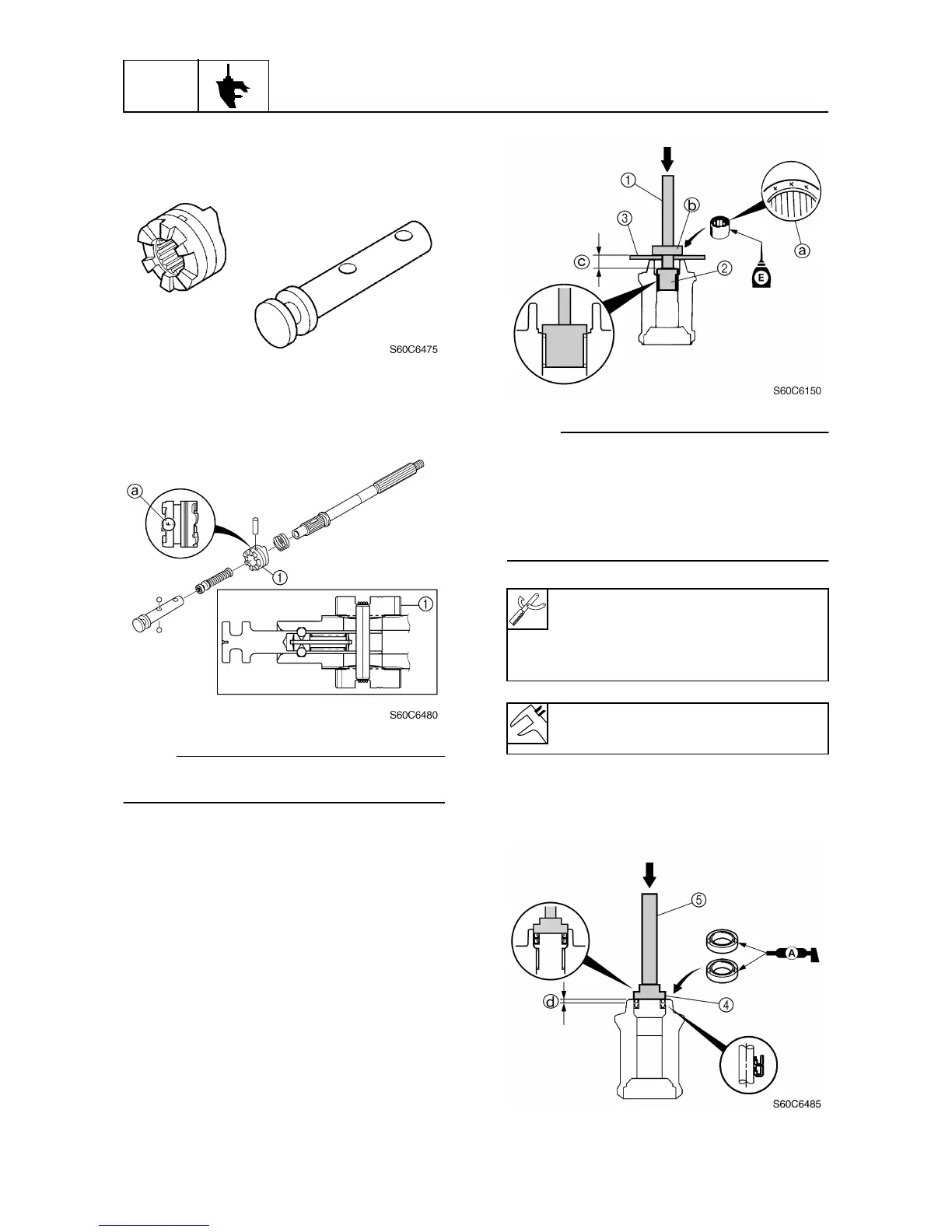

Yamaha F100B - Assembling the Propeller Shaft Assembly; Assembling the Propeller Shaft Housing

LOWR
Lower unit
6-41
60C5D11
2. Check the dog clutch and shift slider for
cracks or wear. Replace if necessary.
Assembling the propeller shaft
assembly
1. Install the dog clutch as shown.
NOTE:
Install the dog clutch
1
with the “F” mark
a
facing toward the shift slider.
Assembling the propeller shaft
housing
1. Install the needle bearing into the propel-
ler shaft housing to the specified depth.
NOTE:
• Install the needle bearing with the manufac-
ture identification mark
a
facing toward the
oil seal (propeller side).
• When using the driver rod, do not strike the
special tool in a manner that will force the
stopper
b
out of place.
2. Apply grease to the new oil seals, and
then install them into the propeller shaft
housing to the specified depth.
Driver rod SS
1
: 90890-06604
Needle bearing attachment
2
:
90890-06612
Bearing depth plate
3
: 90890-06603
Depth
c
:
25.0–25.5 mm (0.98–1.00 in)
