Yamaha F100B - Removing the Clamp Brackets; Installing the Clamp Brackets

BRKT
Bracket unit
7-67
60C5D11

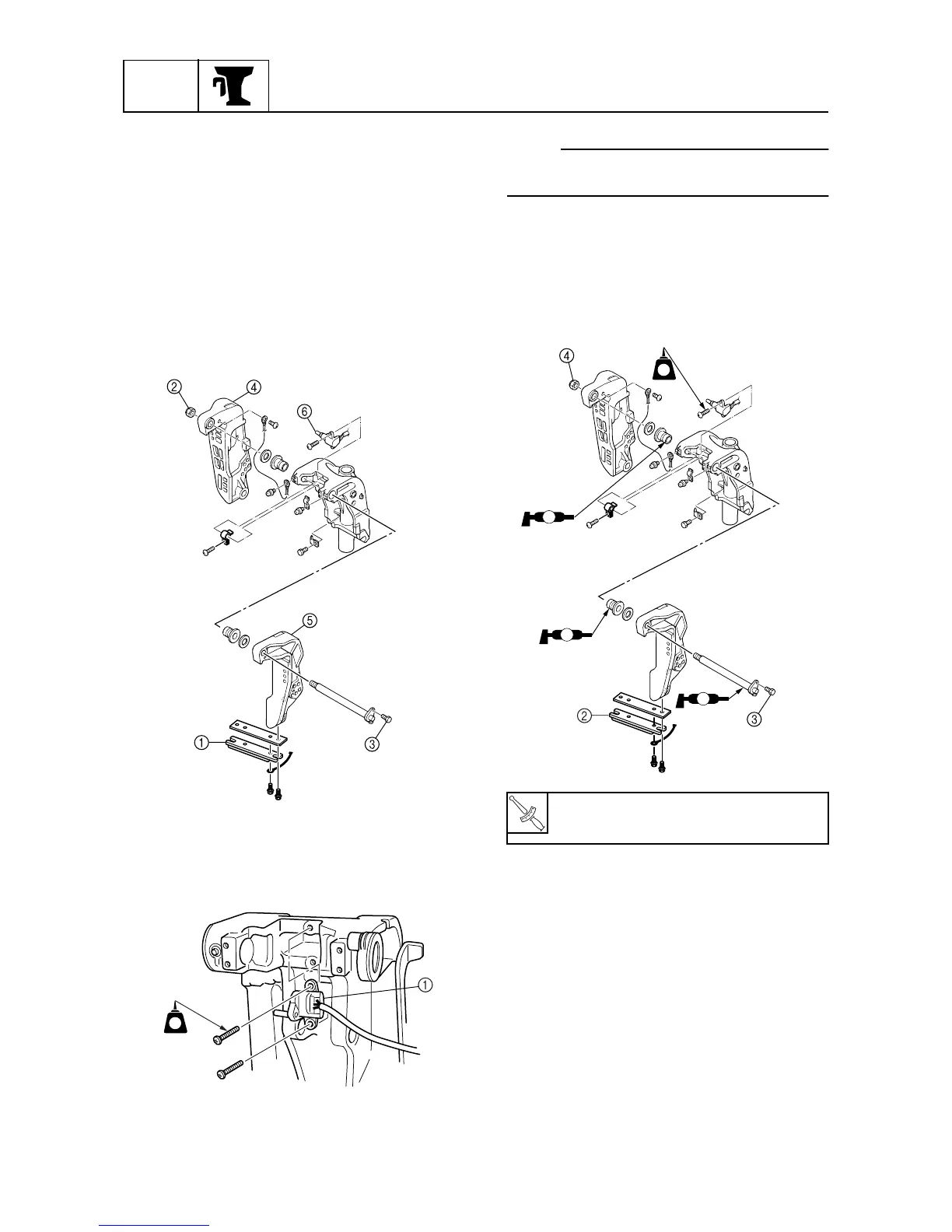

Removing the clamp brackets
1. Remove the power trim and tilt unit. For
removal procedures, see “Removing the
power trim and tilt unit” in this chapter.
2. Remove the anode
1
.
3. Loosen the self-locking nuts
2
and bolt
3
, and then remove clamp brackets
4
and
5
.
4. Remove the trim sensor
6
.
Installing the clamp brackets
1. Install the trim sensor
1
onto the swivel
bracket assembly.
NOTE:
Adjust the trim sensor after installing the
power trim and tilt unit.
2. Assemble the clamp brackets and the
swivel bracket by installing the anode
2
,
bolt
3
, and self-locking nuts
4
, then
tightening the nuts to the specified
torque.
3. Install the power trim and tilt unit. For
installation procedures, see “Installing
the power trim and tilt unit” in this chap-
ter.
S60C7265
S60C7160
LT
271
T
R
.
.
Self-locking nut
4
:
15 N·m (1.5 kgf·m, 11 ft·lb)
S60C7270
AA
AA
LT
572
LT
AA
