Yamaha F100B - Removing the Propeller Shaft Housing Assembly; Disassembling the Propeller Shaft Housing

LOWR
Lower unit
6-11
60C5D11

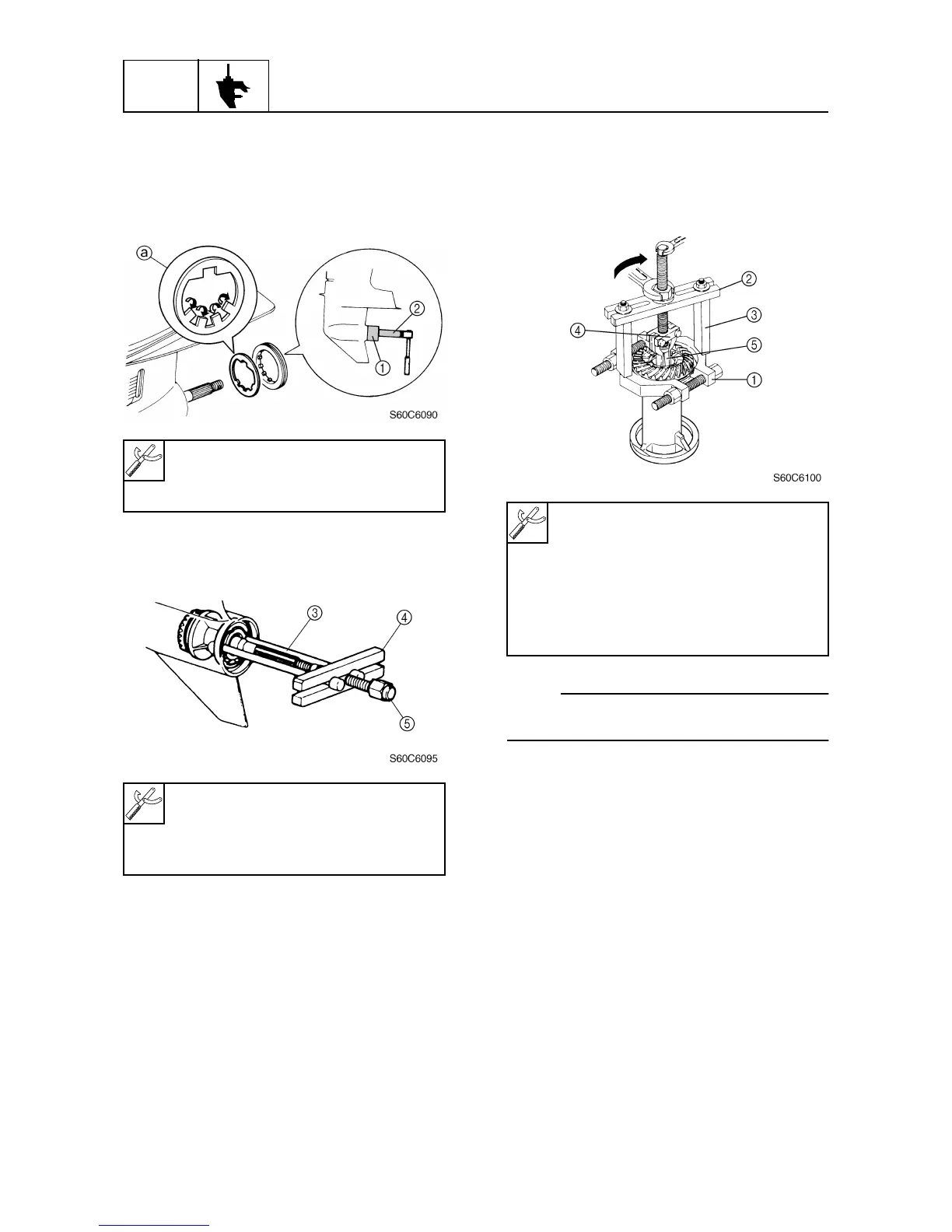

Removing the propeller shaft
housing assembly
1. Straighten the claw washer tabs
a
, and
then remove the ring nut and claw
washer.
2. Pull out the propeller shaft housing
assembly.
Disassembling the propeller shaft
housing
1. Remove the reverse gear and thrust
washer.
NOTE:
Install the bearing separator
1
between the
reverse gear and thrust washer completely.
Ring nut wrench 3
1
: 90890-06511
Ring nut wrench extension
2
:
90890-06513
Bearing housing puller claw L
3
:
90890-06502
Stopper guide plate
4
: 90890-06501
Center bolt
5
: 90890-06504
Bearing separator
1
: 90890-06534
Stopper guide plate
2
: 90890-06501
Stopper guide stand
3
:
90890-06538
Bearing puller
4
: 90890-06535
Bearing puller claw 1
5
:
90890-06536
