Yamaha F100B - Starting System; Electrical Systems

ELEC
Electrical systems
– +
8-13
60C5D11

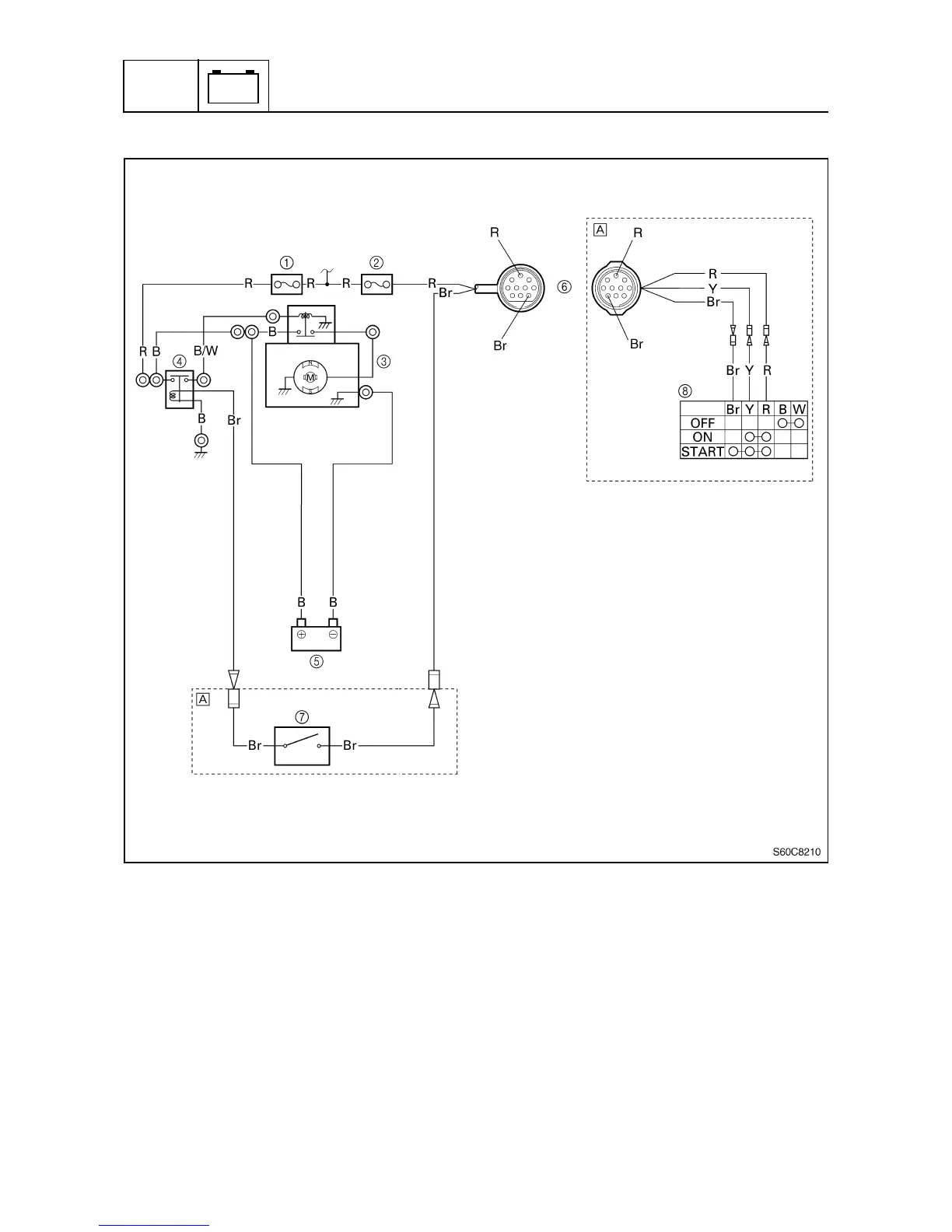

Starting system
8
1
Fuse (30 A)
2
Fuse (20 A)
3
Starter motor
4
Starter relay
5
Battery
6
10-pin coupler
7
Neutral switch
8
Engine start switch
È
Tiller handle model
B: Black
Br : Brown
R: Red
W: White
Y : Yellow
B/W : Black/white
