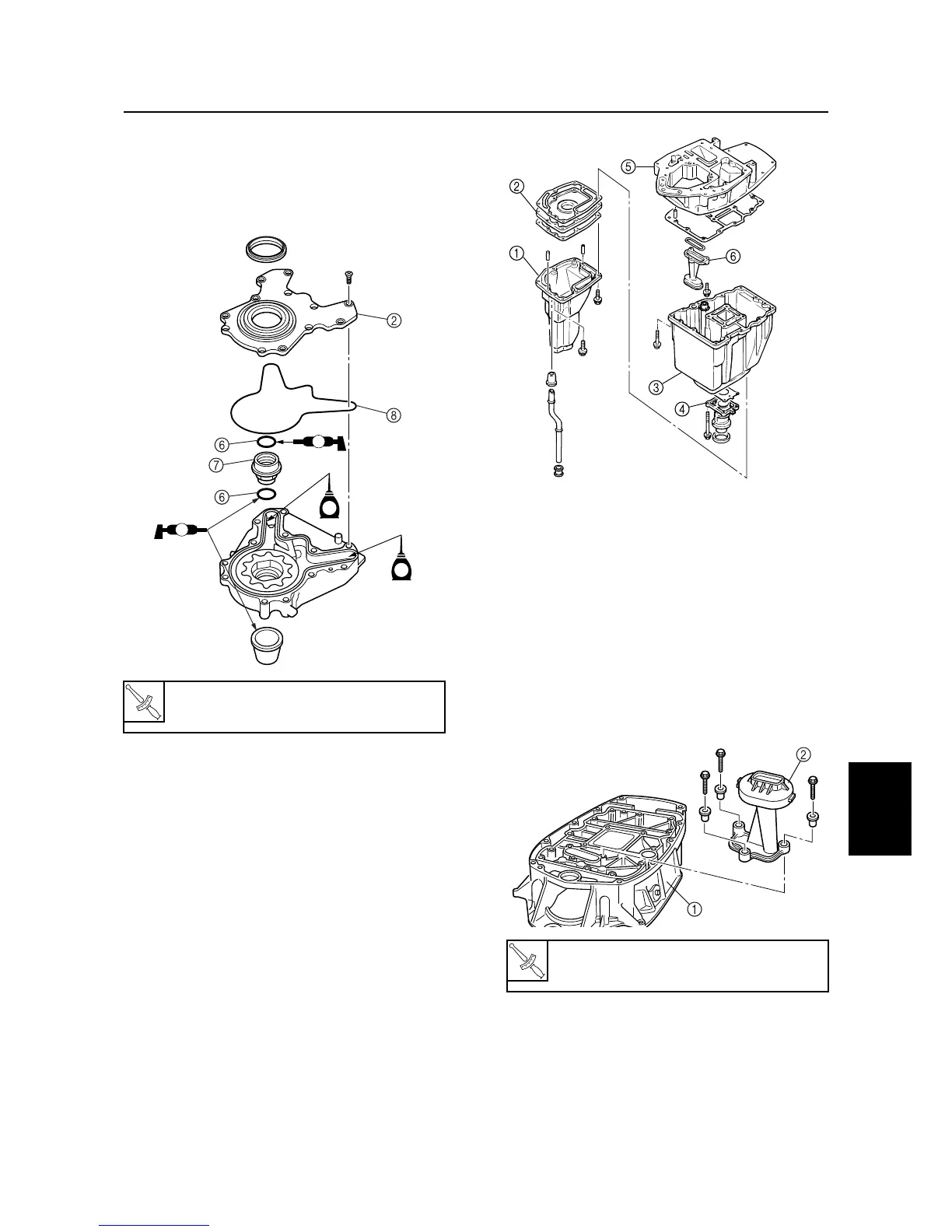

Yamaha F100B - Disassembling the Oil Pan; Checking the Oil Strainer; Assembling the Oil Pan

60C5D11
7-60
1
2
3
4
5
6
7
8
9
3. Install the O-rings
6
into the shaft
7
.
4. Install the gasket
8
and cover
2
, and
then tighten the cover screws to the
specified torque.
Disassembling the oil pan
1. Remove the muffler
1
and plate
2
from
the oil pan
3
.
2. Remove the exhaust manifold
4
from
the oil pan
3
.
3. Remove the oil pan
3
from the exhaust
guide
5
.
4. Remove the oil strainer
6
.
Checking the oil strainer
1. Check the oil strainer for dirt and residue.
Clean if necessary.
Assembling the oil pan
1. Install the gaskets onto the exhaust
guide
1
.
2. Install the oil strainer
2
and bolts, and
then tighten the bolts to the specified
torque.
T
R
.
.
Oil pump cover screw:
4 N·m (0.4 kgf·m, 2.9 ft·lb)
S60C7070
AA
E
A
E
T
R
.
.
Oil strainer bolt:
11 N·m (1.1 kgf·m, 8.0 ft·lb)
S60C7205
S60C7080
Upper case (F100C)
