Yamaha F100B - Removing the Power Trim and Tilt Unit

60C5D11
7-30
1
2
3
4
5
6
7
8
9

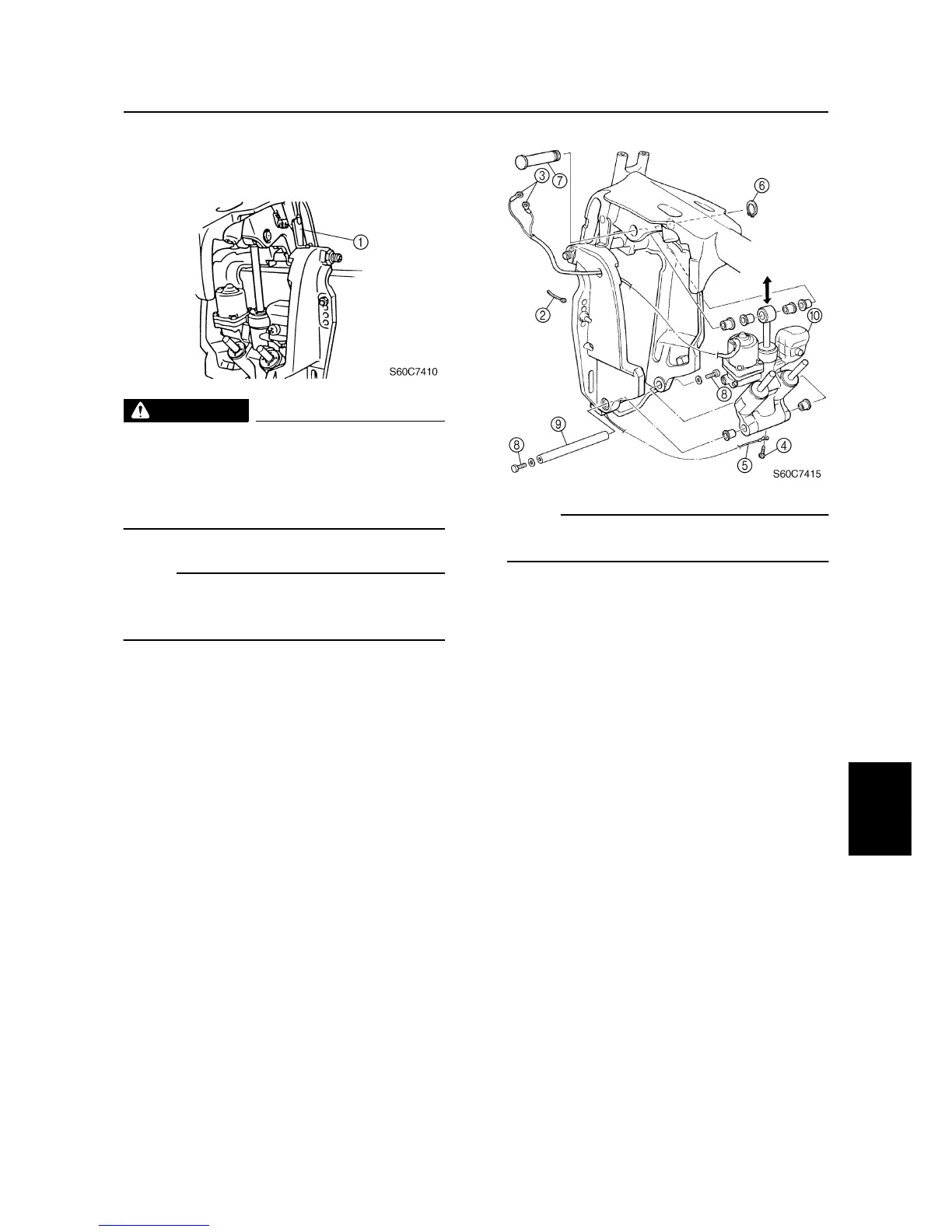

Removing the power trim and tilt unit
1. Fully tilt the outboard motor up, and then
support it with the tilt stop lever
1
.
WARNING
After tilting up the outboard motor, be
sure to support it with the tilt stop lever.
Otherwise, the outboard motor could sud-
denly lower if the power trim and tilt unit
should lose fluid pressure.
NOTE:
If the power trim and tilt does not operate,
loosen the manual valve and tilt the outboard
motor up manually.
2. Loosen the plastic ties
2
, and then pull
out the PTT motor lead
3
.
3. Remove the bolt
4
and disconnect the
ground lead
5
.
4. Remove the circlip
6
, then the shaft
7
.
5. Loosen the bolts
8
, and then remove the
shaft
9
.
6. Remove the power trim and tilt unit
0
.
NOTE:
To remove the power trim and tilt unit, lower
the tilt ram slightly.
Power trim and tilt unit (F100B)
