Yamaha F100B - Checking the Engine Start Switch; Checking the Engine Shut-Off Switch

60C5D11
8-12
1
2
3
4
5
6
7
8
9

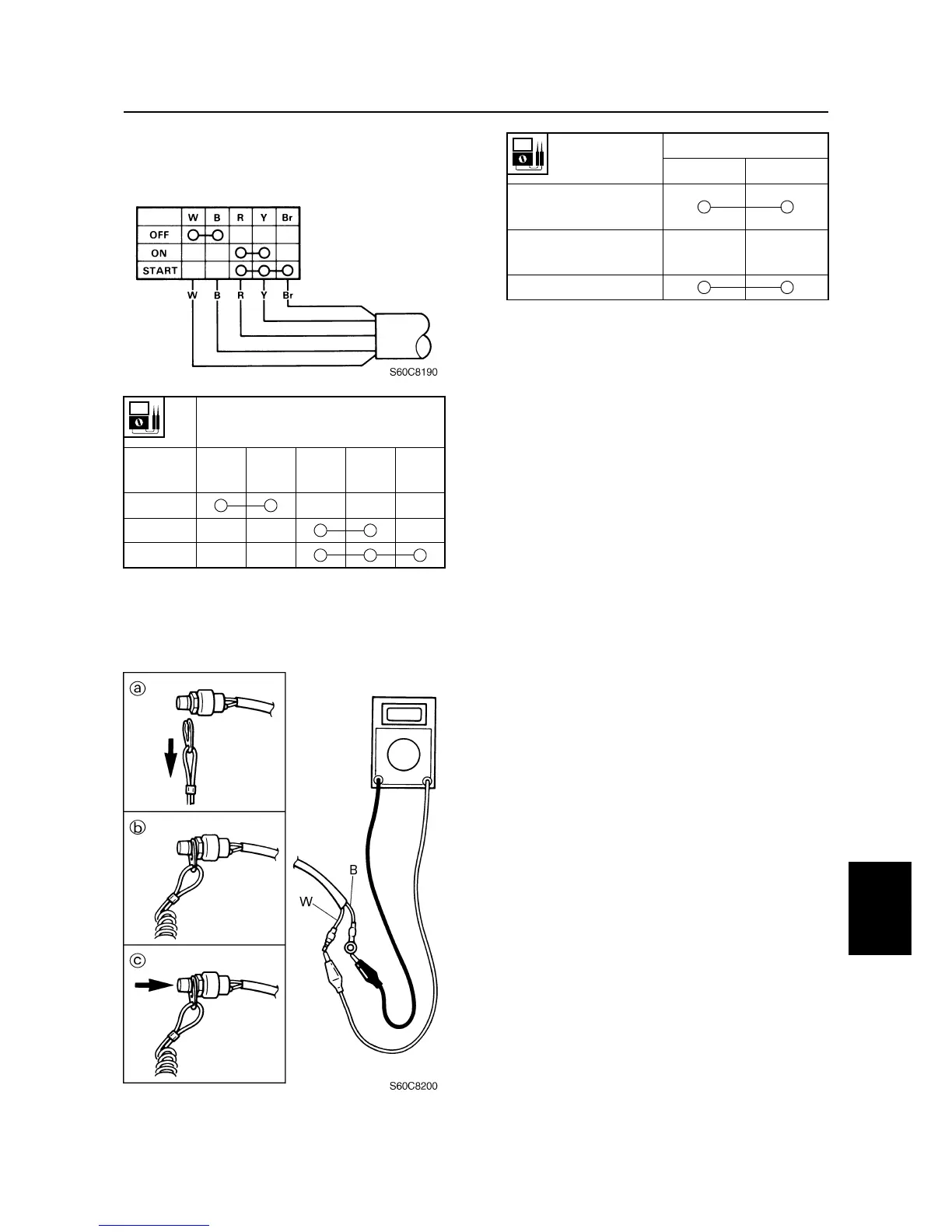

Checking the engine start switch
1. Check the engine start switch for continu-
ity. Replace if there is no continuity.
Checking the engine shut-off switch
1. Check the engine shut-off switch for con-
tinuity. Replace if there is no continuity.
Lead color
Switch
position
White
(W)
Black
(B)
Red
(R)
Yellow
(Y)
Brown
(Br)
OFF
ON
START
Lead color
White (W)
Black (B)
Remove the lock
plate
a
Install the lock
plate
b
Push the button
c
Ignition system and ignition control system
