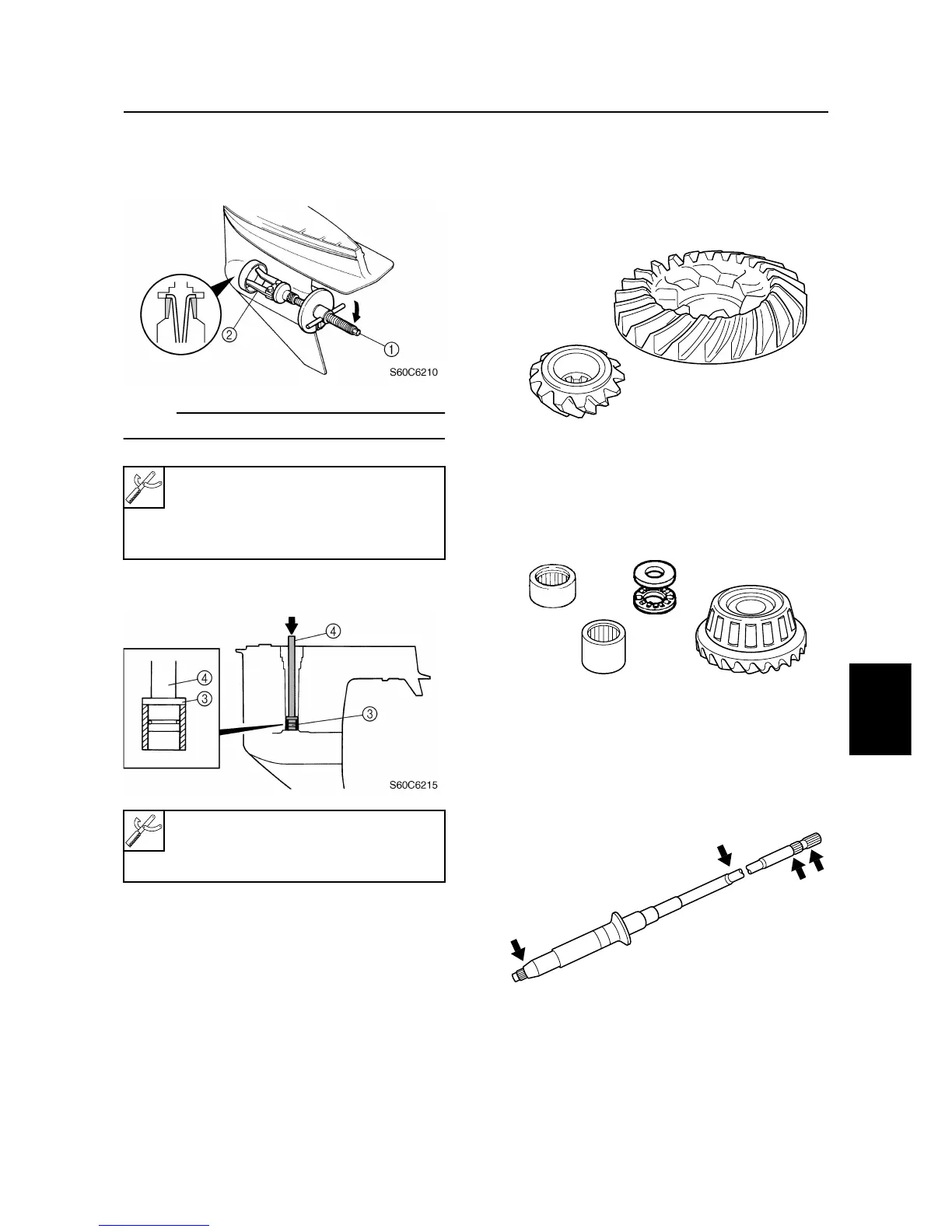

Disassembling the lower case
1. Remove the taper roller bearing outer
race and shim(s).
NOTE:
Install the claws as shown.
2. Remove the needle bearing.
Checking the pinion and forward
gear
1. Check the teeth of the pinion, and the
teeth and dogs of the forward gear for
cracks or wear. Replace if necessary.
Checking the bearings
1. Check the bearings for pitting or rum-
bling. Replace if necessary.
Checking the drive shaft
1. Check the drive shaft for bends or wear.
Replace if necessary.
Bearing outer race puller
1
:
90890-06523
Outer race puller claw A
2
:
90890-06532
Ball bearing attachment
3
:
90890-06636
Driver rod LL
4
: 90890-06605
S60C6220
S60C6225
S60C6230
Drive shaft and lower case (F100B)
