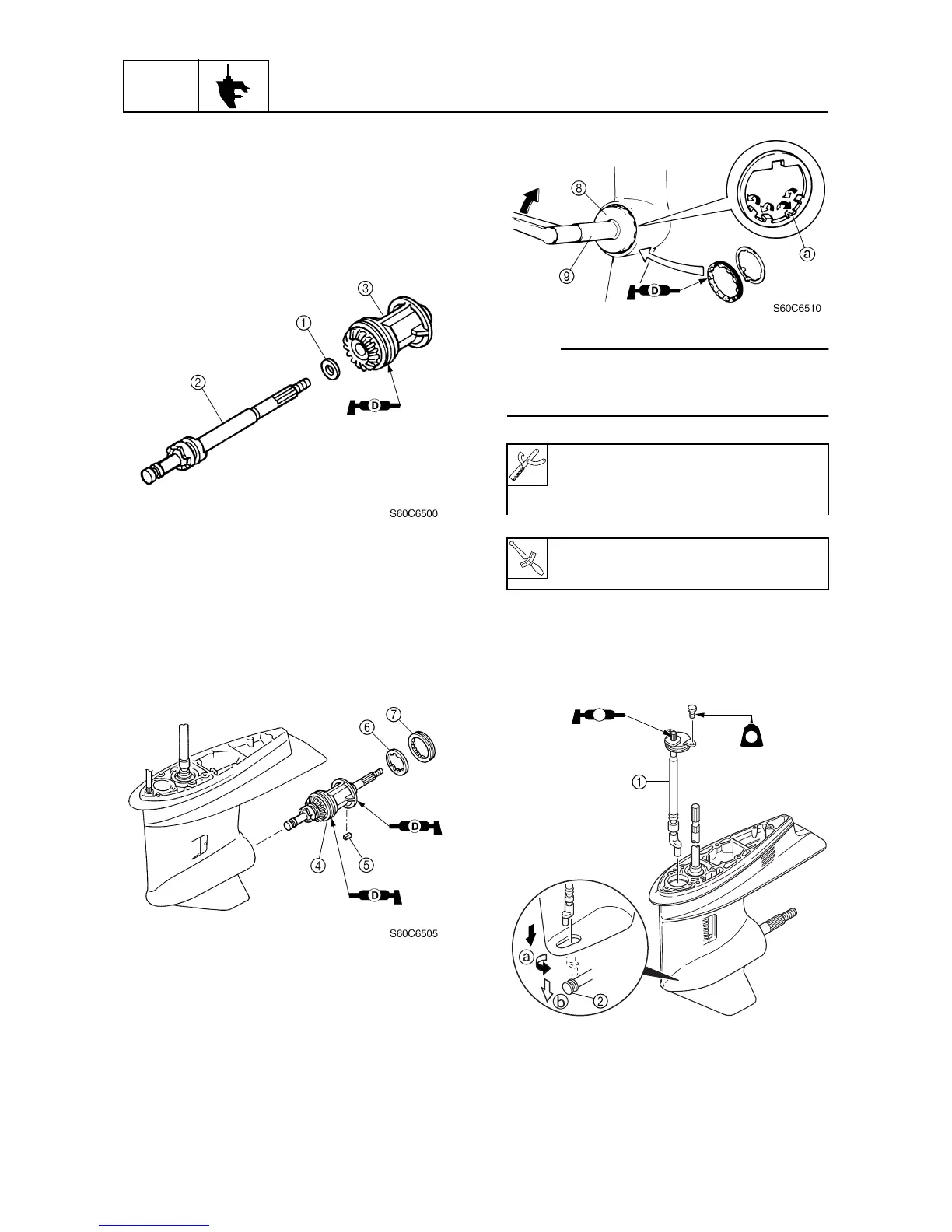

Installing the propeller shaft housing
1. Install the washer
1
, propeller shaft
assembly
2
, into the propeller shaft
housing assembly
3
.
2. Apply grease to the new O-rings.
3. Install the propeller shaft housing assem-
bly
4
into the lower case, and then
install the straight key
5
, claw washer
6
, and ring nut
7
.
4. Tighten the nut to the specified torque.
NOTE:
Secure the ring nut by bending one tab
a
into the slot in the ring nut and the other tabs
toward the propeller shaft housing assembly.
Installing the water pump and shift
rod
1. Install the shift rod assembly
1
.
Ring nut wrench 3
8
: 90890-06511
Ring nut wrench extension
9
:
90890-06513
T
R
.
.
Ring nut
7
:
103 N·m (10.3 kgf·m, 74 ft·lb)
