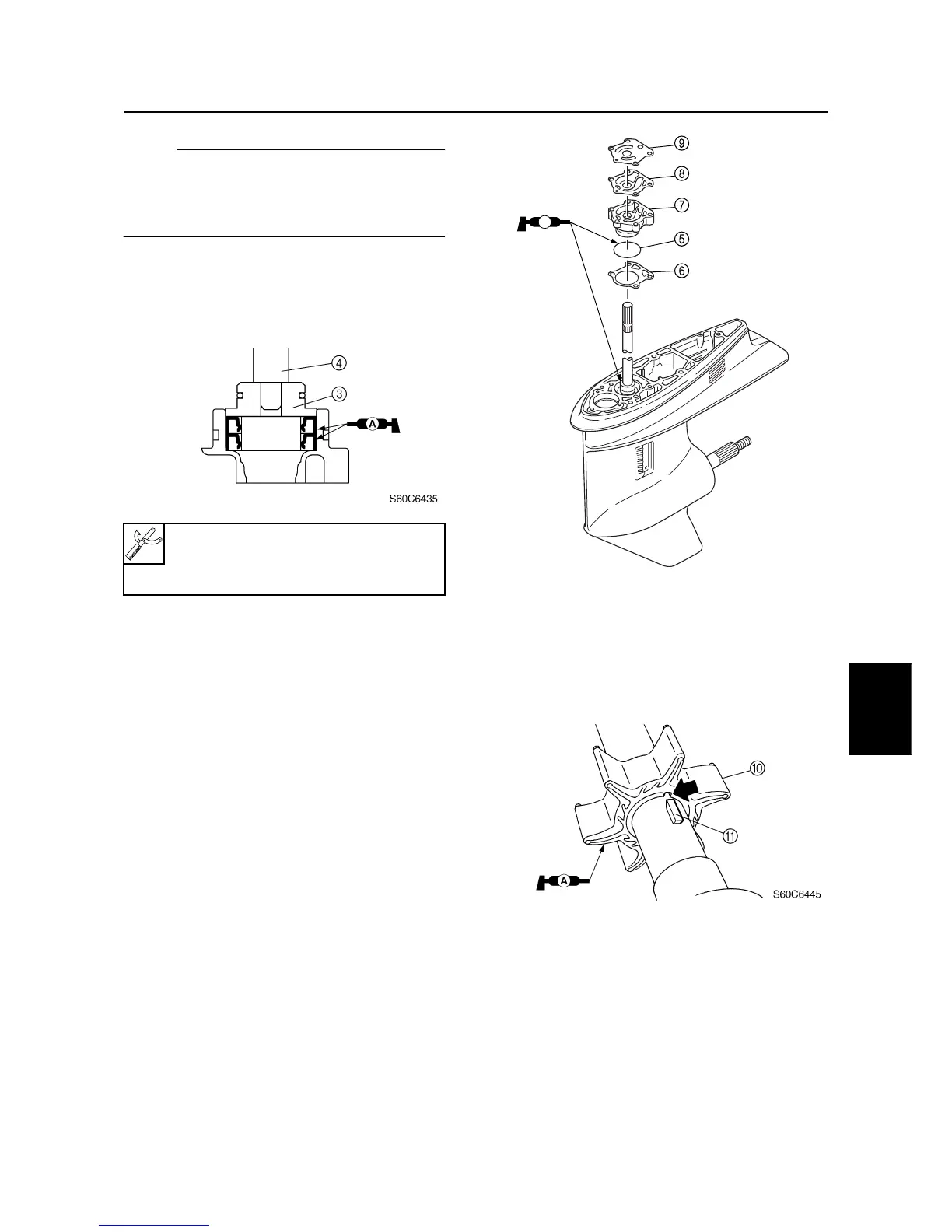

NOTE:
Install the shift rod assembly into the lower
case, turn it counterclockwise 90°
a
, and
then push it down
b
to connect it to the shift
slider
2
.
2. Install the new oil seals into the oil seal
housing as shown.
3. Install the new O-ring
5
.
4. Install the new gasket
6
, oil seal housing
7
, new gasket
8
, and outer plate car-
tridge
9
.
5. Install the Woodruff key into the drive
shaft.
6. Align the groove on the impeller
0
with
the Woodruff key
A
, and then install it to
the drive shaft.
Ball bearing attachment
3
:
90890-06636
Driver rod LS
4
: 90890-06606
S60C6440
A
Drive shaft and lower case (F100C)
