Yamaha F100B - Checking the Filters; Checking the Gear Pump; Assembling the Gear Pump

60C5D11
7-84
1
2
3
4
5
6
7
8
9
3. Check main valves
3
and
4
for dirt or
residue. Clean if necessary.
4. Check the manual valve seat
5
and
relief valve seat
6
for dirt or residue.
Clean if necessary.
Checking the filters
1. Check the filters for dirt or residue. Clean
if necessary.
Checking the gear pump
1. Check the gear pump for damage.
Replace if necessary.

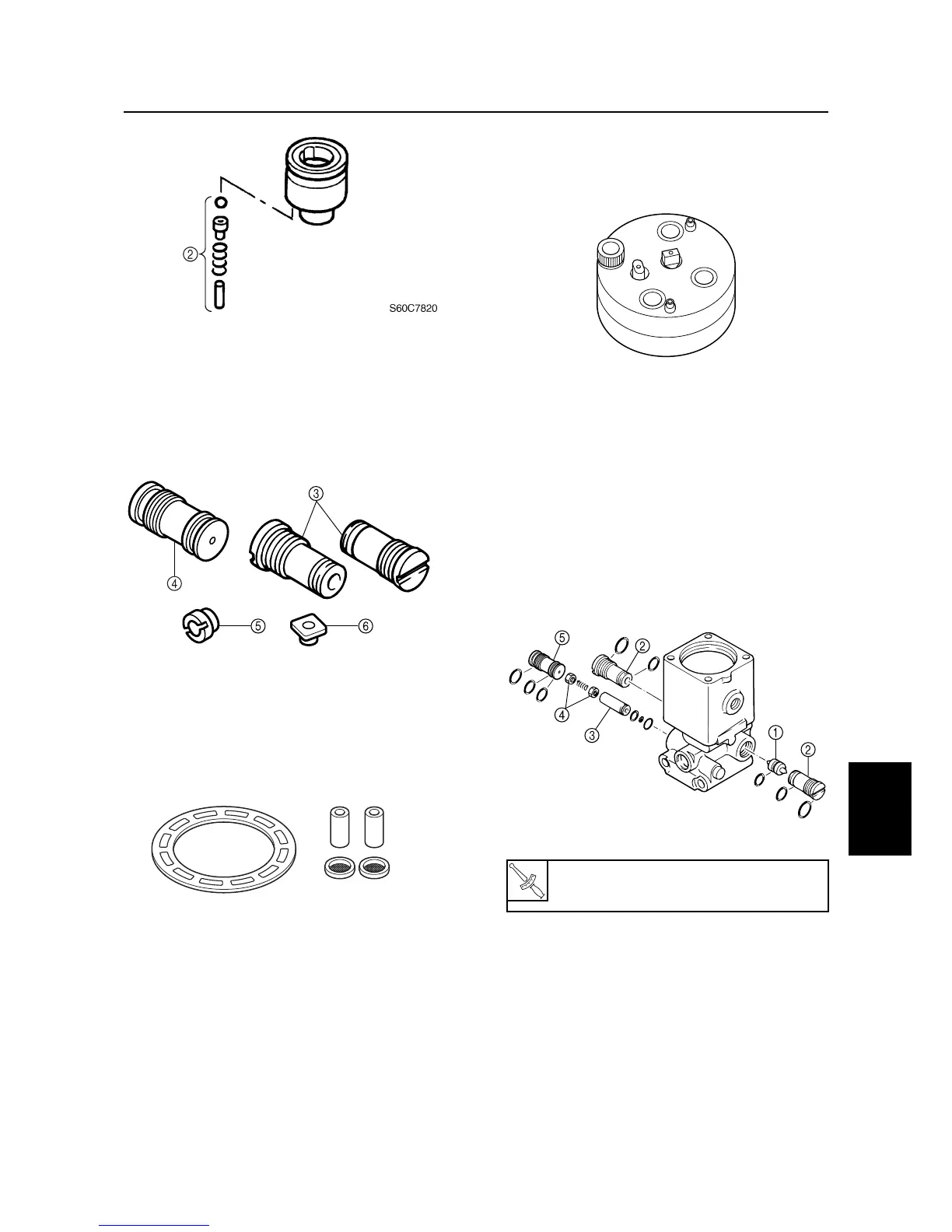

Assembling the gear pump
1. Install the shuttle piston
1
and main
valves
2
, and then tighten the valves to
the specified torque.
2. Install the relief valve seat
3
, valve seats
4
, and main valve
5
, and then tighten
the valve to the specified torque.
S60C7825
S60C7830
T
R
.
.
Main valve
2
and
5
:
11 N·m (1.1 kgf·m, 8.0 ft·lb)
S60C7835
S60C7840
Gear pump (F100C)
