Yamaha F100B - Removing the Steering Arm; Installing the Steering Arm

BRKT
Bracket unit
7-23
60C5D11

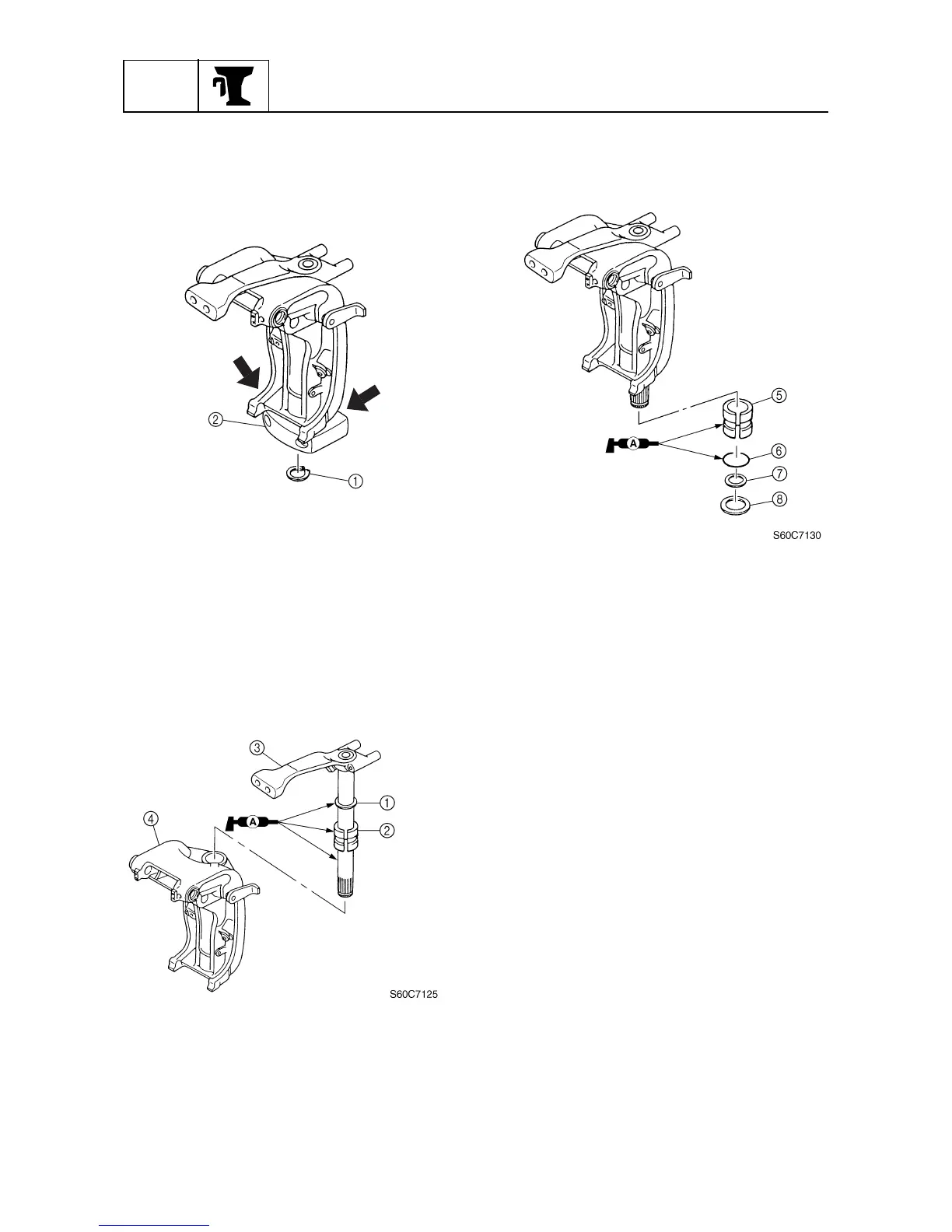

Removing the steering arm
1. Remove the circlip
1
.
2. Remove the steering yoke
2
by striking
it with a plastic hammer.
3. Remove the steering arm from the swivel
bracket by pulling the arm off the bracket.
Installing the steering arm
1. Install the washer
1
and bushing
2
onto
the steering arm
3
.
2. Place the swivel bracket
4
in an upright
position, and then install the steering arm
onto the swivel bracket.
3. Install the bushing
5
, O-ring
6
, bushing
7
, and washer
8
onto the swivel
bracket.
S60C7120
