60C5D11
7-24
1
2
3
4
5
6
7
8
9

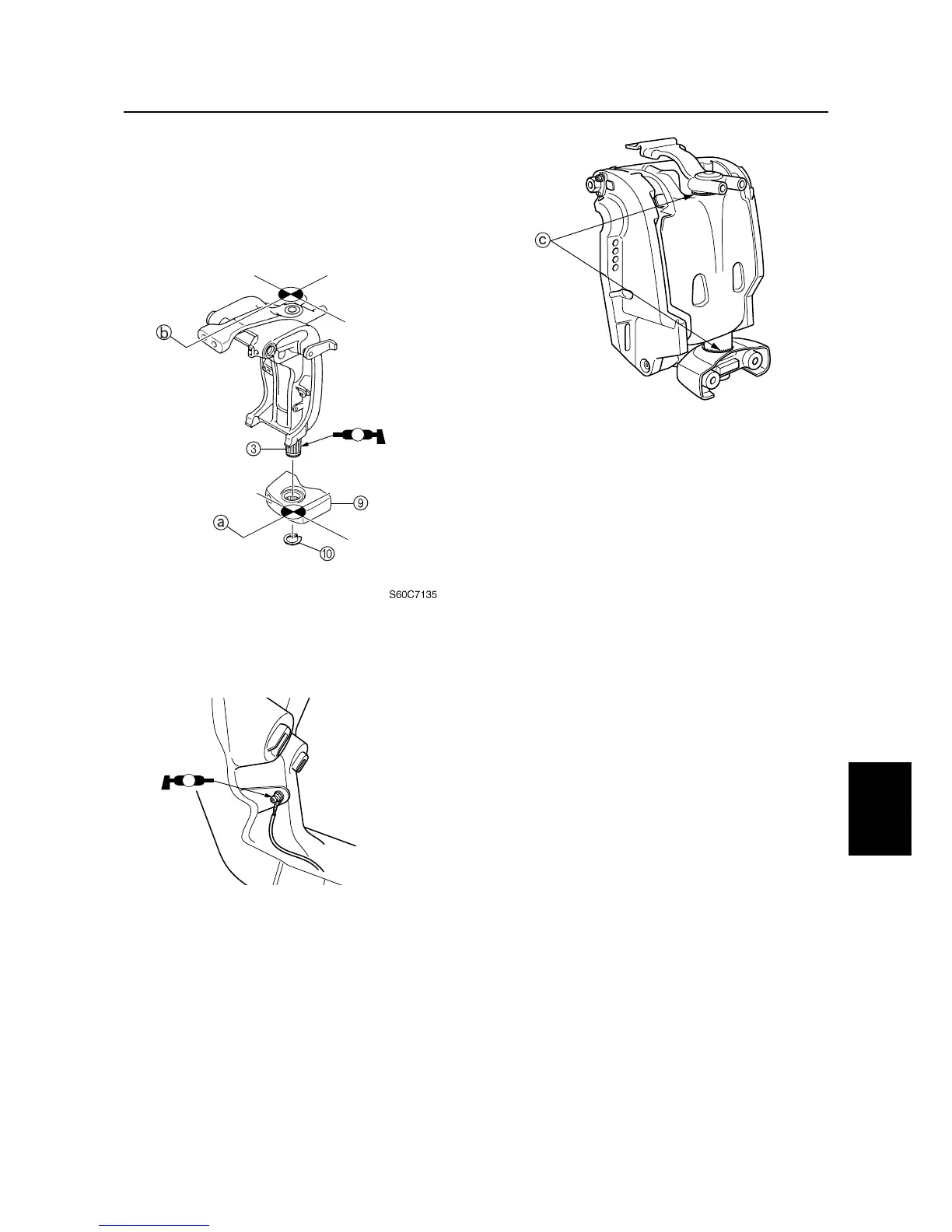

4. Install the steering arm
3
into the steer-
ing yoke
9
by aligning the center
a
of
the yoke with the center
b
of the steer-
ing arm.
5. Install the circlip
0
.
6. Inject grease into the grease nipple until
grease comes out from both the upper
and lower bushings
c
.
A
S60C7140
AA
S60C7145
Swivel bracket and steering arm (F100B)
