Yamaha F100B - Disassembling the Power Trim and Tilt Motor

60C5D11
7-44
1
2
3
4
5
6
7
8
9

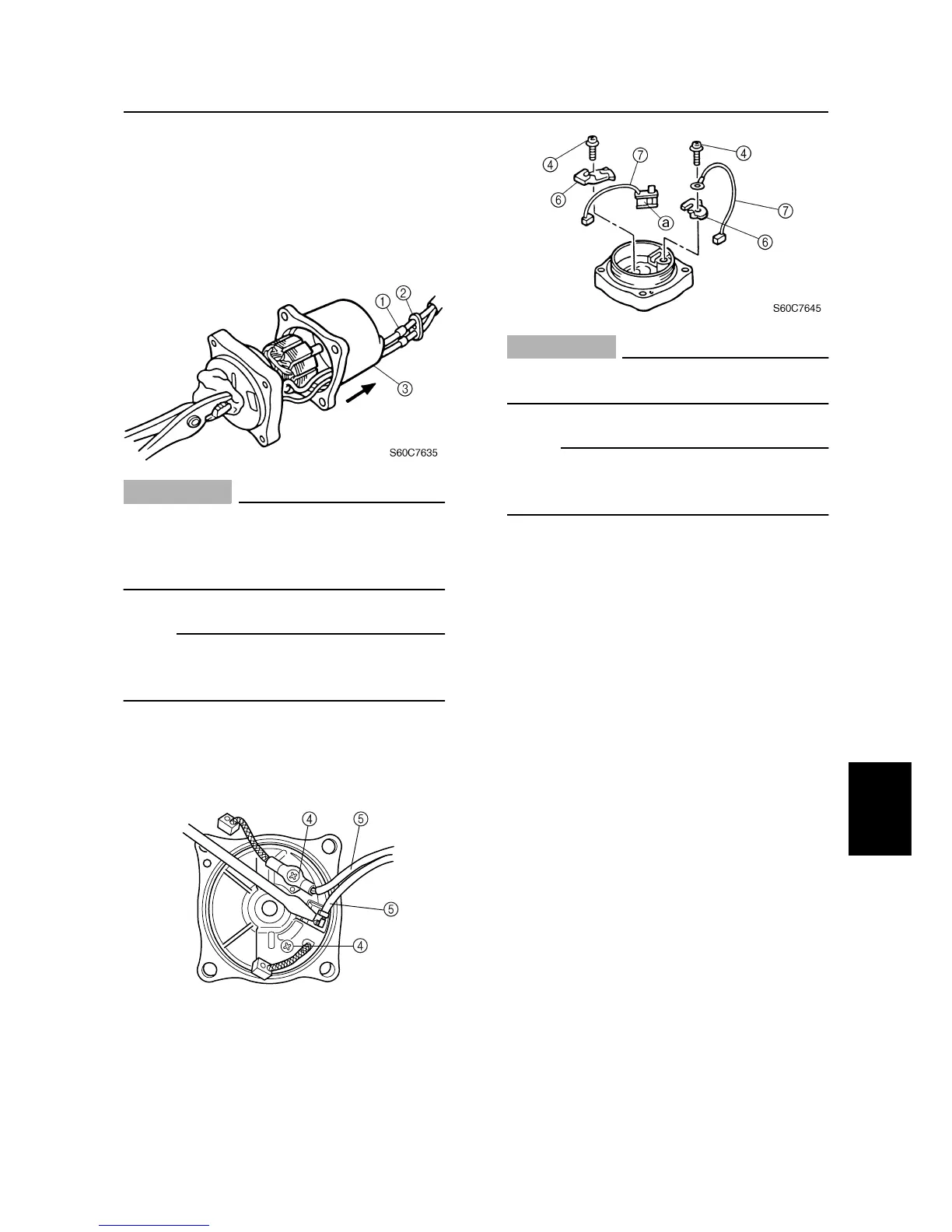

Disassembling the power trim and
tilt motor
1. Remove the PTT motor screws.
2. Remove the lead holder
1
and spacer
2
from the yoke
3
, and then slide them
towards the leads.
CAUTION:
• Keep the PTT motor leads inside the
yoke.
• Do not allow grease or oil to contact the
commutator.
NOTE:
Place a clean cloth over the end of the arma-
ture shaft and carefully pull the armature from
the yoke with a pair of pliers as shown.
3. Remove the screws
4
, disconnect the
PTT motor leads
5
, and then remove
the brush holders
6
and brushes
7
.
CAUTION:
Do not touch the bimetal
a
, otherwise the
operation of the breaker may be affected.
NOTE:
Hold the brush with a screwdriver as shown,
and then disconnect the PTT motor lead
(blue).
S60C7640
Power trim and tilt motor (F100B)
