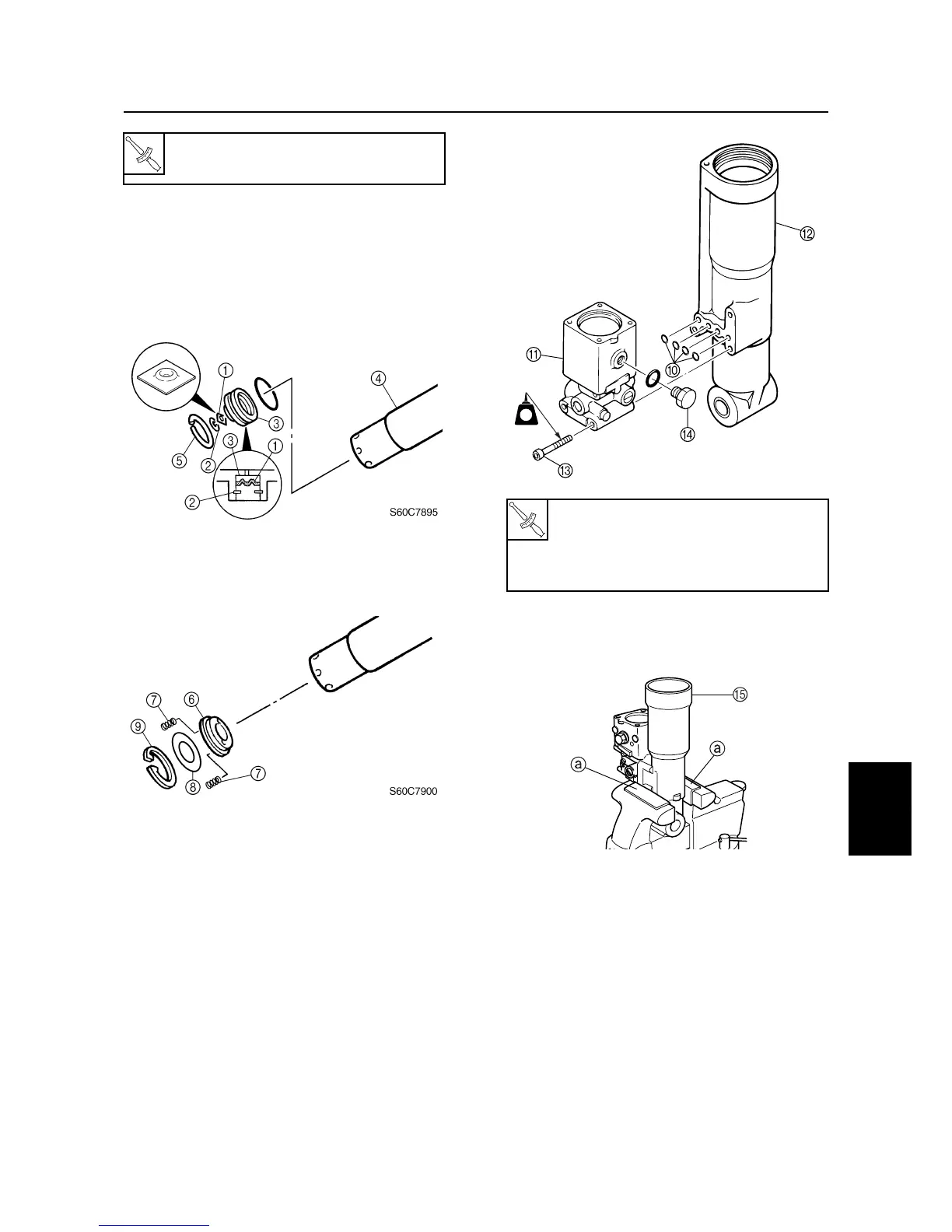

Assembling the tilt cylinder
1. Install the valve seal
1
and the circlip
2
into the free piston
3
as shown.
2. Install the free piston into the trim cylin-
der
4
by installing the circlip
5
.
3. Install the trim cylinder base
6
, springs
7
, and plate
8
into the trim cylinder with
the circlip
9
.
4. Install the O-rings
0
and pump housing
assembly
A
to the tilt cylinder
B
by
installing the bolts
C
, then tightening
them to the specified torque.
5. Install the reservoir cap
D
to the speci-
fied torque.
6. Hold the power trim
E
in a vise using
aluminum plates
a
on both sides.
T
R
.
.
Trim cylinder end screw
8
:
80 N·m (8.0 kgf·m, 58 ft·lb)
T
R
.
.
Pump housing bolt
C
:
9 N·m (0.9 kgf·m, 6.5 ft·lb)
Reservoir cap
D
:
7 N·m (0.7 kgf·m, 5.1 ft·lb)
S60C7905
LT
572
LT
572
S60C7910
Tilt cylinder and trim cylinder (F100C)
