BRKT
Bracket unit
7-79
60C5D11

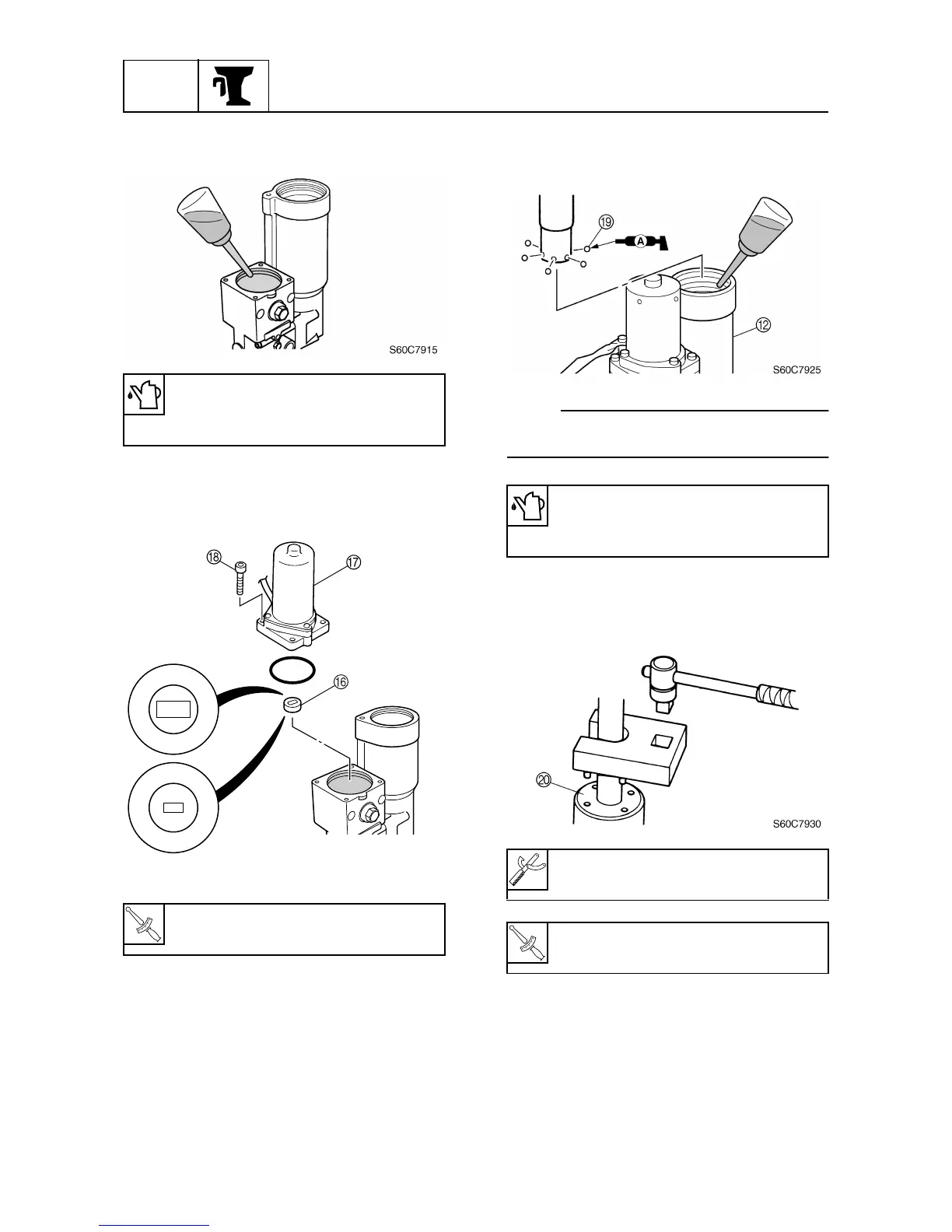

7. Fill the reservoir with the recommended
fluid to the correct level as shown.
8. Install the joint
F
and power trim and tilt
motor
G
by installing the bolts
H
, then
tightening them to the specified torque.
9. Add fluid of the recommended type to the
first level at the bottom of the tilt cylinder
B
.
10. Install the balls
I
into the trim cylinder,
and then insert the trim cylinder into the
tilt cylinder
B
.
NOTE:
Apply grease to the balls to prevent them
from falling out of the cylinder.
11. Pull the tilt ram until it is fully extended,
install the tilt cylinder end screw
J
, and
then tighten it to the specified torque.
Recommended power trim and tilt
fluid:
ATF Dexron
II
T
R
.
.
PTT motor bolt
H
:
7 N·m (0.7 kgf·m, 5.1 ft·lb)
S60C7920
Recommended power trim and tilt
fluid:
ATF Dexron
II
Cylinder-end screw wrench:
90890-06544
