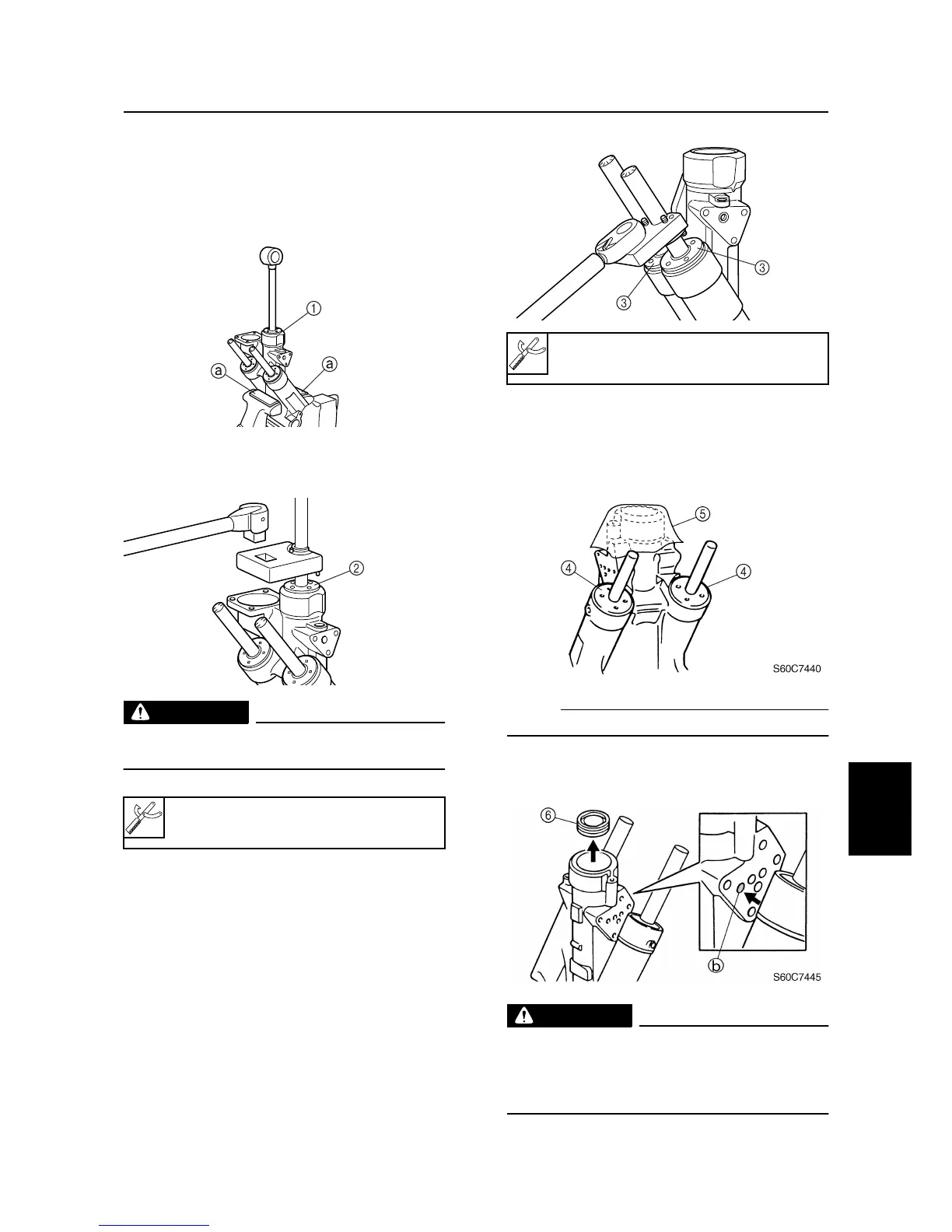

Disassembling the tilt cylinder and
trim cylinders
1. Hold the power trim and tilt unit
1
in a
vise using aluminum plates
a
on both
sides.
2. Loosen the tilt cylinder end screw
2
, and
then remove it.
WARNING
Make sure that the rams are fully
extended before removing the end screw.
3. Drain the fluid.
4. Loosen the trim cylinder end screws
3
,
and then remove them.
5. Drain the power trim and tilt fluid.
6. Install the trim cylinder end screws
4
and tighten them finger tight.
NOTE:
Cover the tilt cylinder with a clean cloth
5
.
7. Remove the free piston
6
.
WARNING
Never look into the tilt cylinder opening
because the free piston and power trim
and tilt fluid may be expelled out force-
fully.
Trim & tilt wrench: 90890-06548
S60C7425
S60C7430
Trim & tilt wrench: 90890-06548
S60C7435
