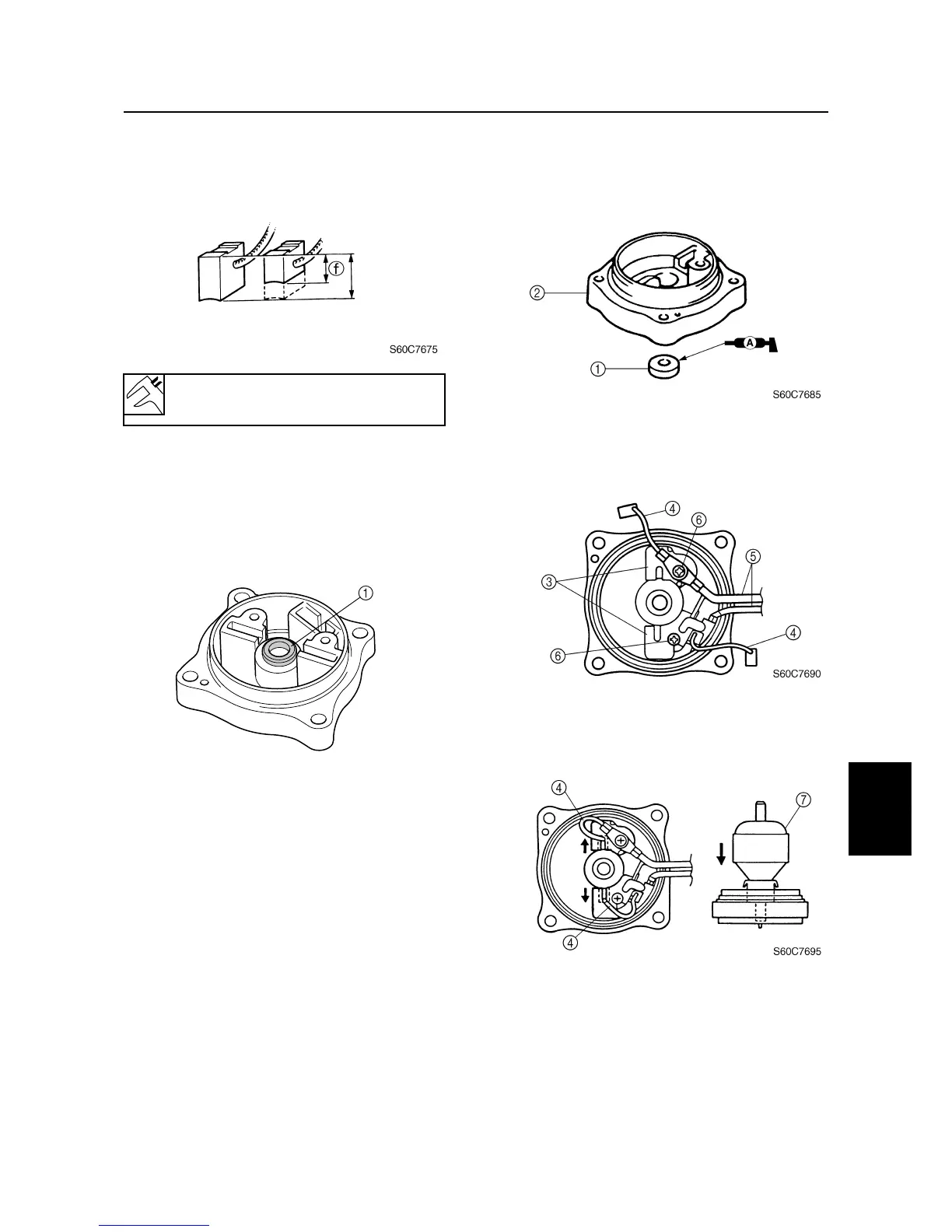

6. Measure the brush length. Replace if out
of specification.
7. Check the base for cracks or damage.
Replace if necessary.
8. Check the bearing
1
and oil seal for
damage or wear. Replace the PTT motor
base if necessary.
Assembling the power trim and tilt
motor
1. Install the oil seal
1
into the motor base
2
as shown.
2. Install the brush holders
3
, brushes
4
,
PTT motor leads
5
, and screws
6
to the
motor base as shown.
3. Install the brush springs into the motor
base, and push the brushes
4
into the
holders, and then install the armature
7
.
4. Install the new O-ring and yoke
8
to the
motor base.
Brush length limit
f
:
4.8 mm (0.19 in)
S60C7680
Power trim and tilt motor (F100B)
