NOTE:
Install an oil seal halfway into the propeller
shaft housing, then the other oil seal.
3. Install the thrust washer
6
and ball bear-
ing
7
to the reverse gear
8
using a
press.
NOTE:
Install the ball bearing with the manufacture
identification mark
e
facing outward (propel-
ler side).

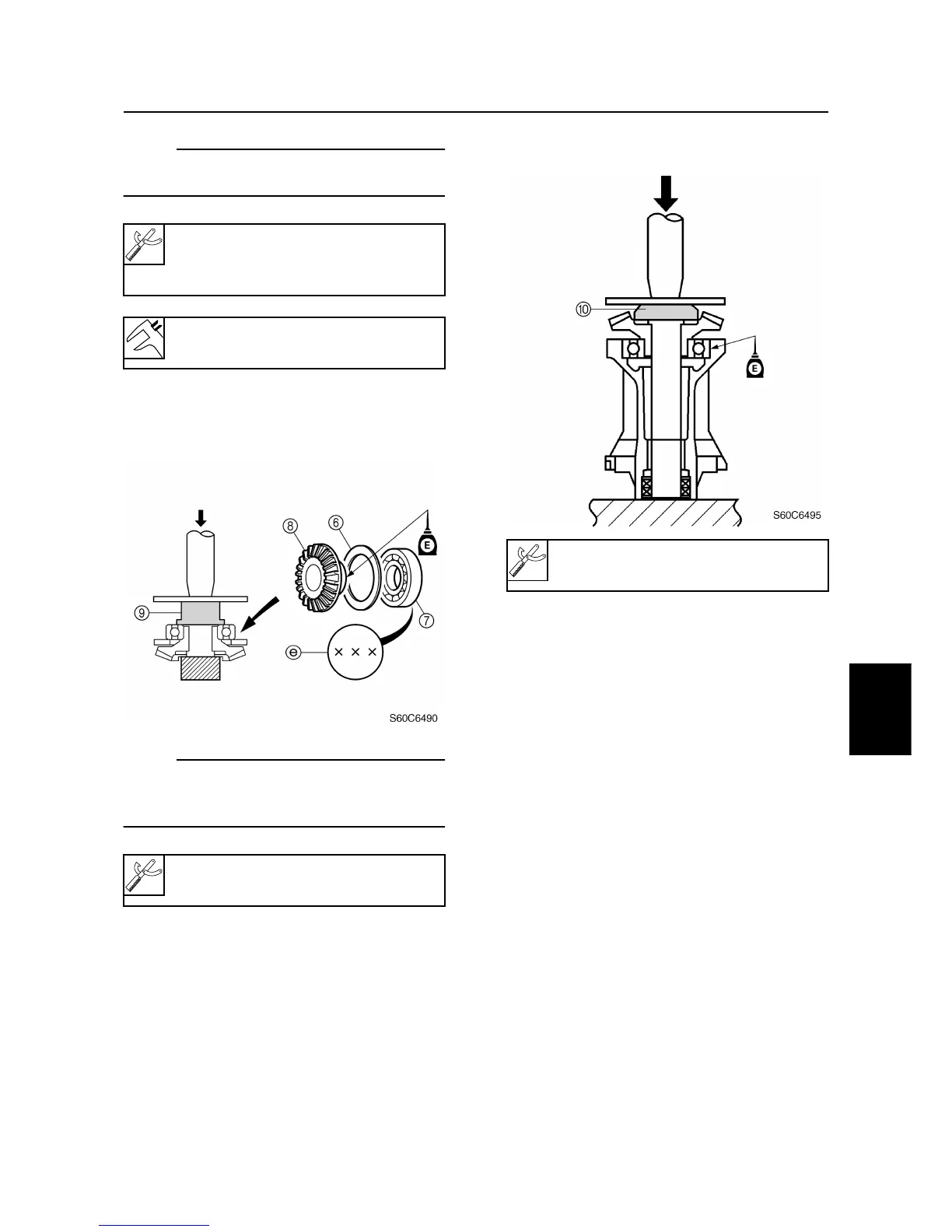

4. Install the reverse gear assembly to the
propeller shaft housing using a press.
Ball bearing attachment
4
:
90890-06633
Driver rod LS
5
: 90890-06606
Depth
d
: 4.5–5.5 mm (0.18–0.22 in)
Ball bearing attachment
9
:
90890-06631
Bearing outer race attachment
0
:
90890-06623
Propeller shaft housing (F100C)
