GEN
INFO
General information
1-9
60C5D11
Fuel pump and fuel filter
The fuel pump found in the F115A has been adopted. Although the quantity of parts has been
reduced and the necessary servicing time has been decreased as well, the ability of the fuel pump
to supply sufficient fuel has been retained.
A water separation fuel filter has been adopted. When water is mixed with fuel, it is separated and
precipitated at the bottom of the filter to prevent it from flowing to the carburetors. As water gathers
in the fuel cup, the red float inside the cup begins to rise, indicating that the accumulation of water is
taking place. After water has gathered in the fuel cup, the fuel filter can be disassembled to dispose
of the water.

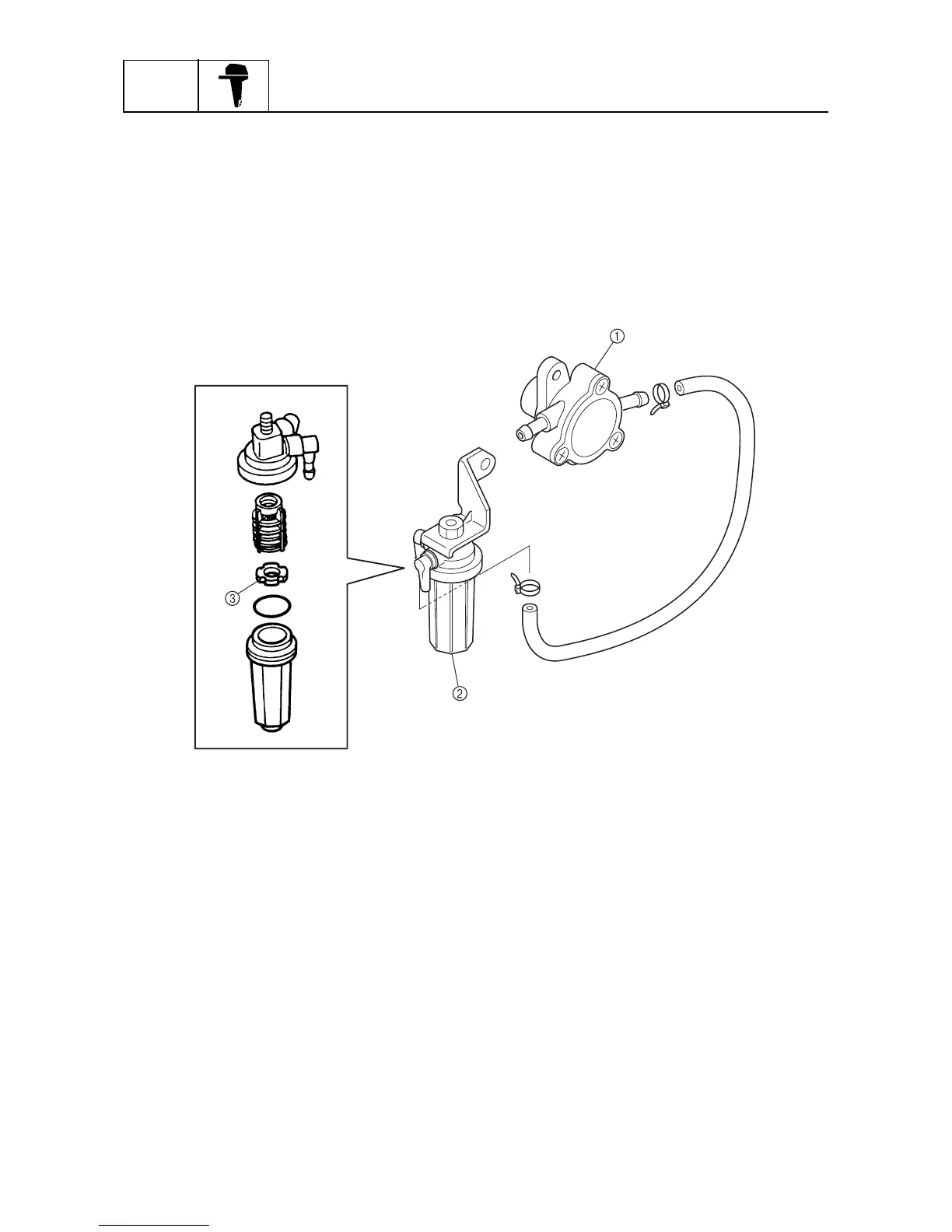

1
Fuel pump
2
Fuel filter
3
Red float
S60C1290
