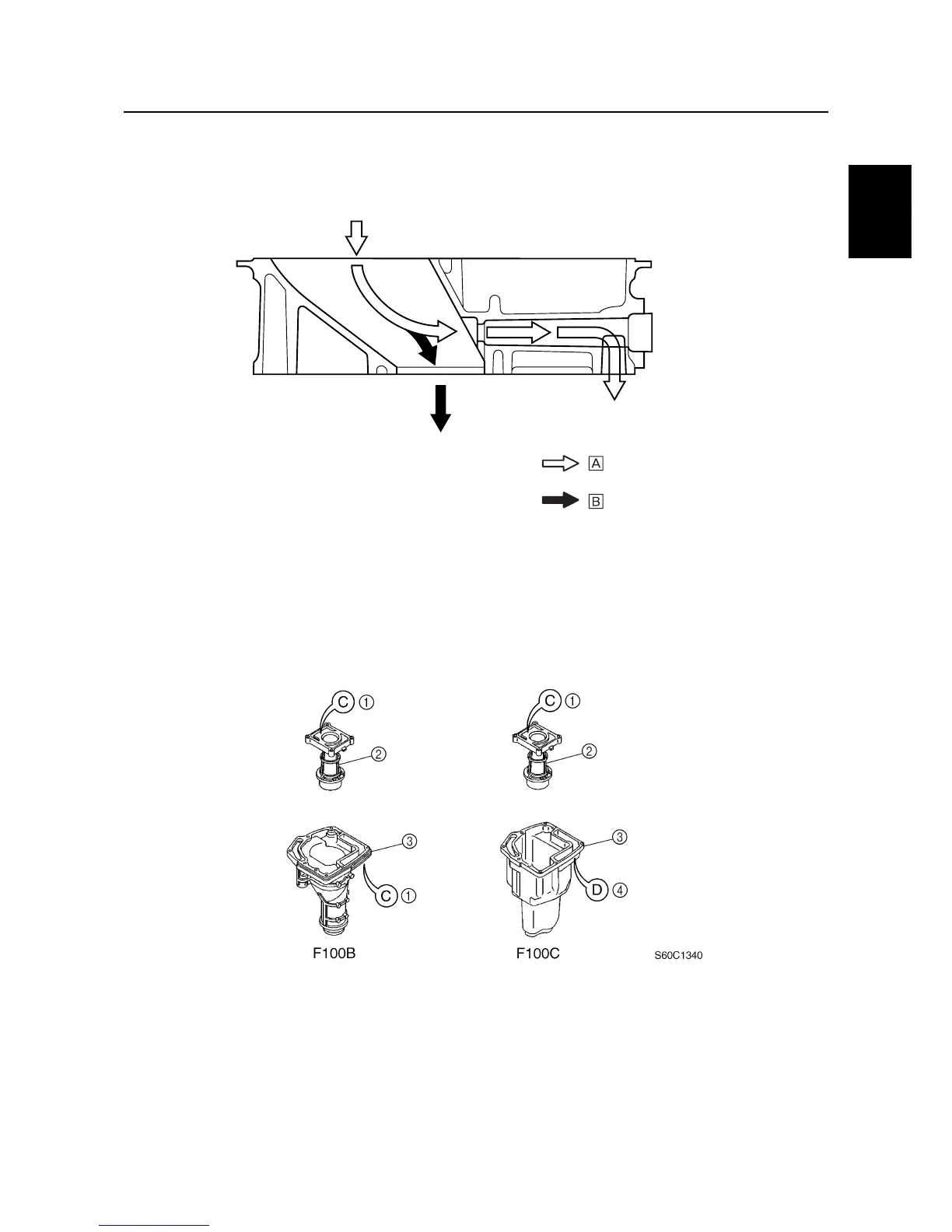

At low speeds, the exhaust gas flows into the water wall through a hole on the side of the exhaust
guide.
È
Exhaust gas flow at low speeds
É
Exhaust gas flow at high speeds
An identification mark has been stamped on the exhaust manifold and exhaust chamber.
1
Identification mark “C”
2
Exhaust manifold
3
Exhaust chamber
4
Identification mark “D”
:
:
