Yamaha F100B - Page 43

60C5D11
2-8
1
2
3
4
5
6
7
8
9
Charging system
Fuse A 20, 30
Lighting coil output peak
voltage (W – W)
at cranking
(*1)
V7.0
at 1,500 r/min
(*1)
V38
at 3,500 r/min
(*1)
V91
Lighting coil resistance
(*2)
(W – W)
Ω
0.32–0.48
Rectifier Regulator output
peak voltage (R – B)
at 1,500 r/min
(*1)
V 17.5
at 3,500 r/min
(*1)
V 19.0
Charging current V, A at
6,000 r/min
12, 20

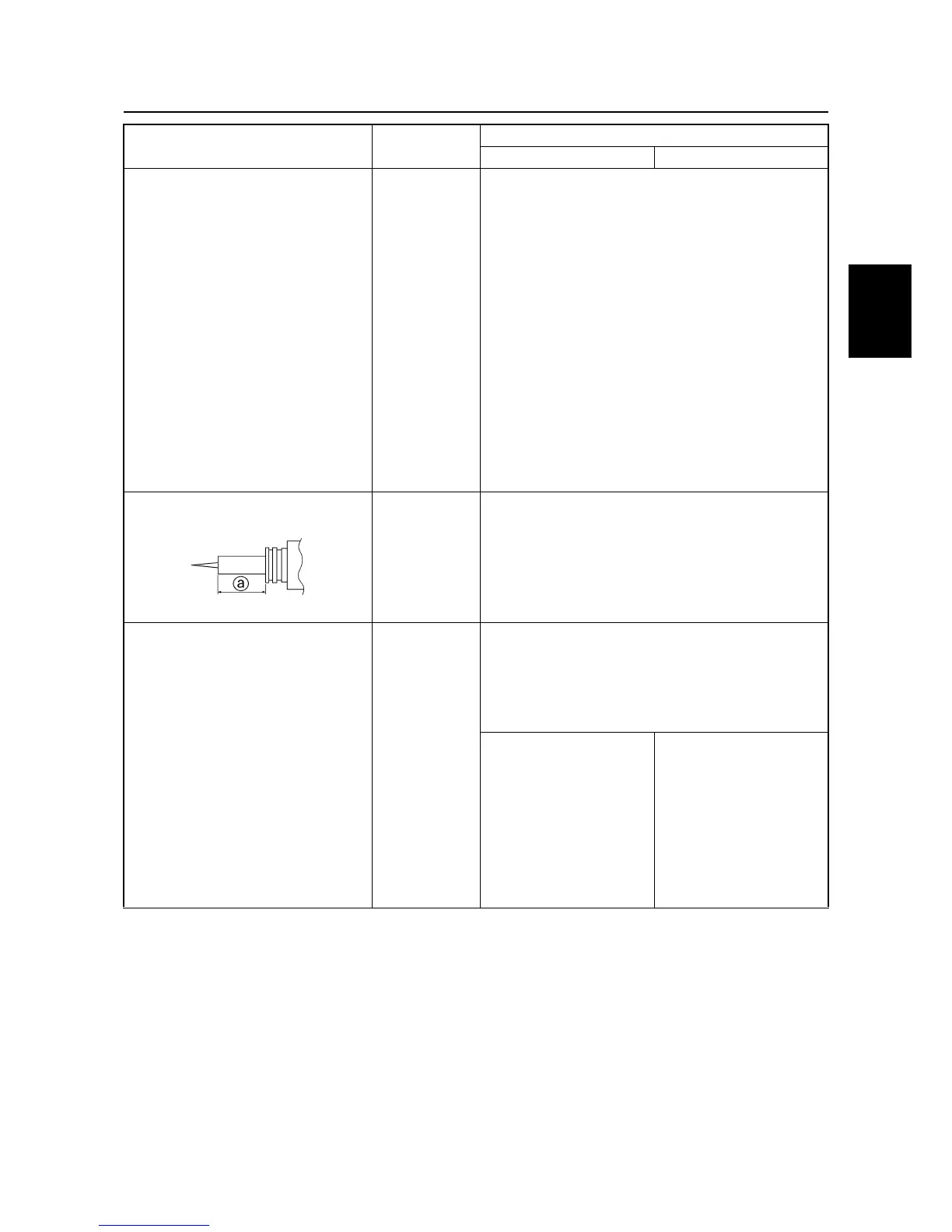

Enrichment control system
Prime Start
Plunger minimum length
a
mm (in) 15.0 (0.59)
Power trim and tilt system
Trim sensor
Setting resistance
Ω
9–11
Resistance (P – B)
Ω
9–378.8
Fluid type ATF Dexron
II
Brushes
Standard length mm (in) 9.8 (0.39) —
Wear limit mm (in) 4.8 (0.19) —
Commutator
Standard diameter mm (in) 22 (0.87) —
Wear limit mm (in) 21 (0.83) —
Mica
Standard undercut mm (in) 1.35 (0.05) —
(*1)
Unloaded
(*2)
The figures are for reference only.
Item Unit
Model
F100BET F100CET
Maintenance specifications
