Yamaha MX775 - Page 106

4-10
1
2
3
4
5
6
7
8
9
10
FUEL

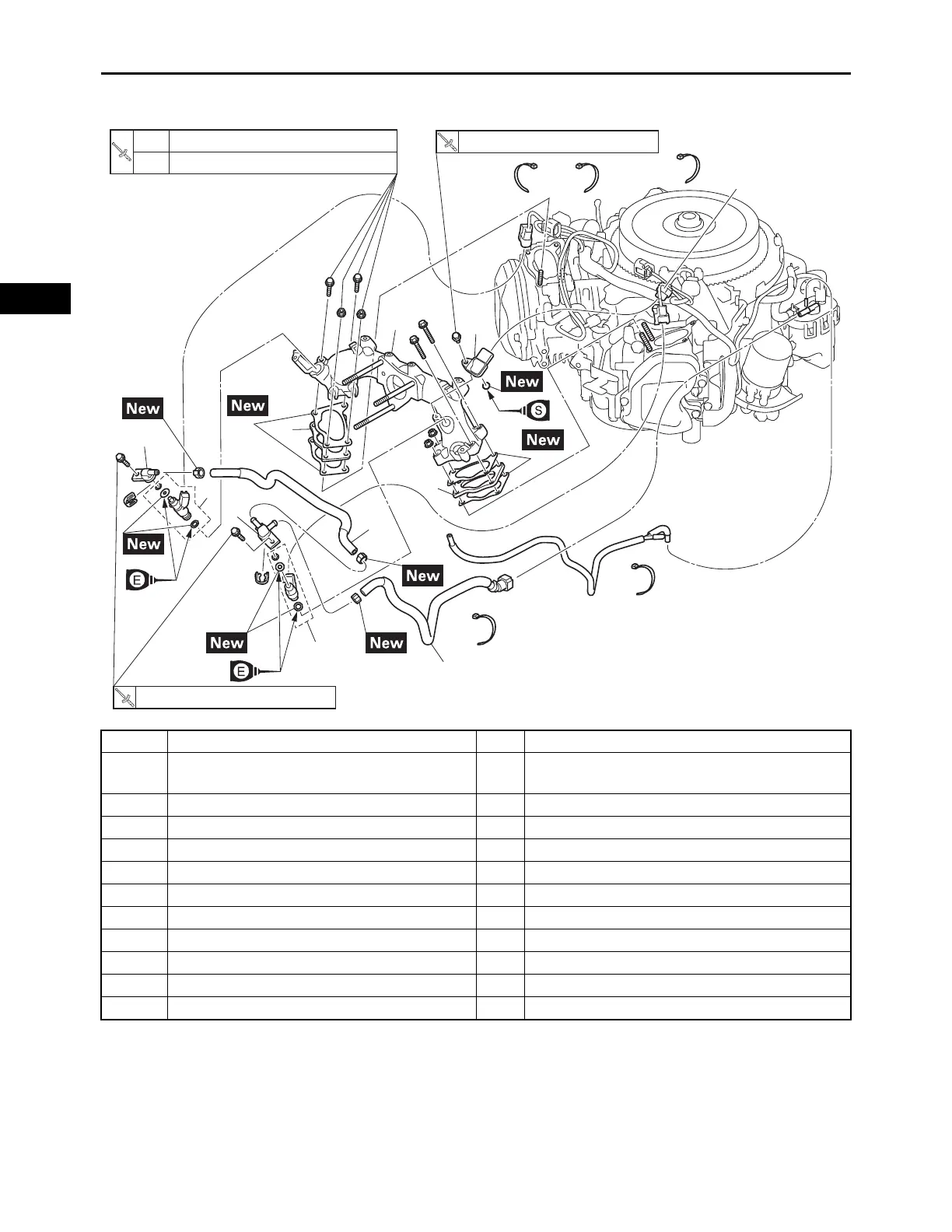

FUEL INJECTORS AND INTAKE MANIFOLD
Order Job/Parts to remove Q’ty Remarks
4
Manifold absolute pressure sensor lead
coupler
1 Disconnect.
5 Fuel injector pipe 1 1
6 Fuel injector pipe 2 1
7 Inlet pipe 1 1
8 Inlet pipe 2 1
9 Fuel injector #1 1
10 Fuel injector #2 1
11 Intake manifold 1
12 Intake manifold joint 2
13 Gasket 4
14 Manifold absolute pressure sensor 1
4
5
6
7
8
9
10
11
12
12
13
13
14
7 N・m (0.7 kgf・m, 5.1 lb・ft)
3.0 N・m (0.30 kgf・m, 2.2 lb・ft)
1st
2nd
7 N・m (0.7 kgf・m, 5.1 lb・ft)
9 N・m (0.9 kgf・m, 6.5 lb・ft)
