FUEL
FUEL PUMPS

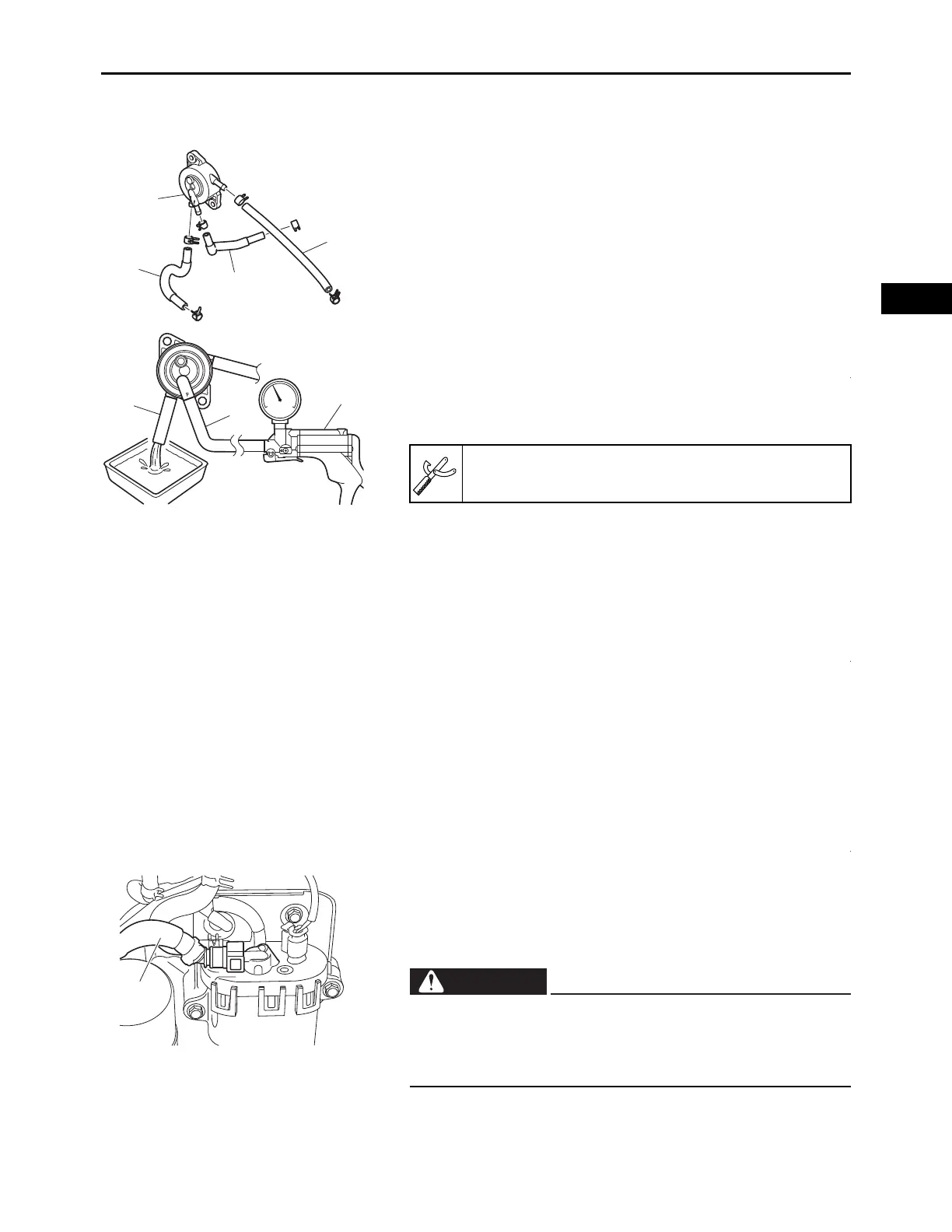

CHECKING THE LOW-PRESSURE FUEL PUMP
1. Check:
• Fuel hose “1”
• Fuel delivery hose “2”
• Pulsar hose “3”
• Low-pressure fuel pump “4”
Cracks/damage  Replace.
2. Check:
• Low-pressure fuel pump operation
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Connect the manual vacuum pump (Pressure/vac-
uum tester) “1” to the pulsar hose “2”.
b. Place the container underneath the end of the fuel
delivery hose “3”.
c. Operate the manual vacuum pump (Pressure/vac-
uum tester) “1” and check that gasoline is flowing
out of the fuel delivery hose “3”.
d. If not, replace the fuel pump assembly.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
CHECKING THE HIGH-PRESSURE FUEL PUMP
1. Check:
• High-pressure fuel pump
Cracks/damage  Replace.
2. Check:
• Fuel pressure
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Disconnect the fuel injector pipe 1 “1” from the fuel
pump.
Refer to “REMOVING THE HIGH-PRESSURE
FUEL PUMP” on page 4-2.
1
2
3
4
2
1
3
Pressure/vacuum tester:
YB-35956-B
1
Cover fuel injector pipe 1 connections with a cloth
when disconnecting them. Residual pressure in the
fuel lines could cause fuel to spurt out when removing
the fuel injector pipe 1.
WARNING
