ENGINE

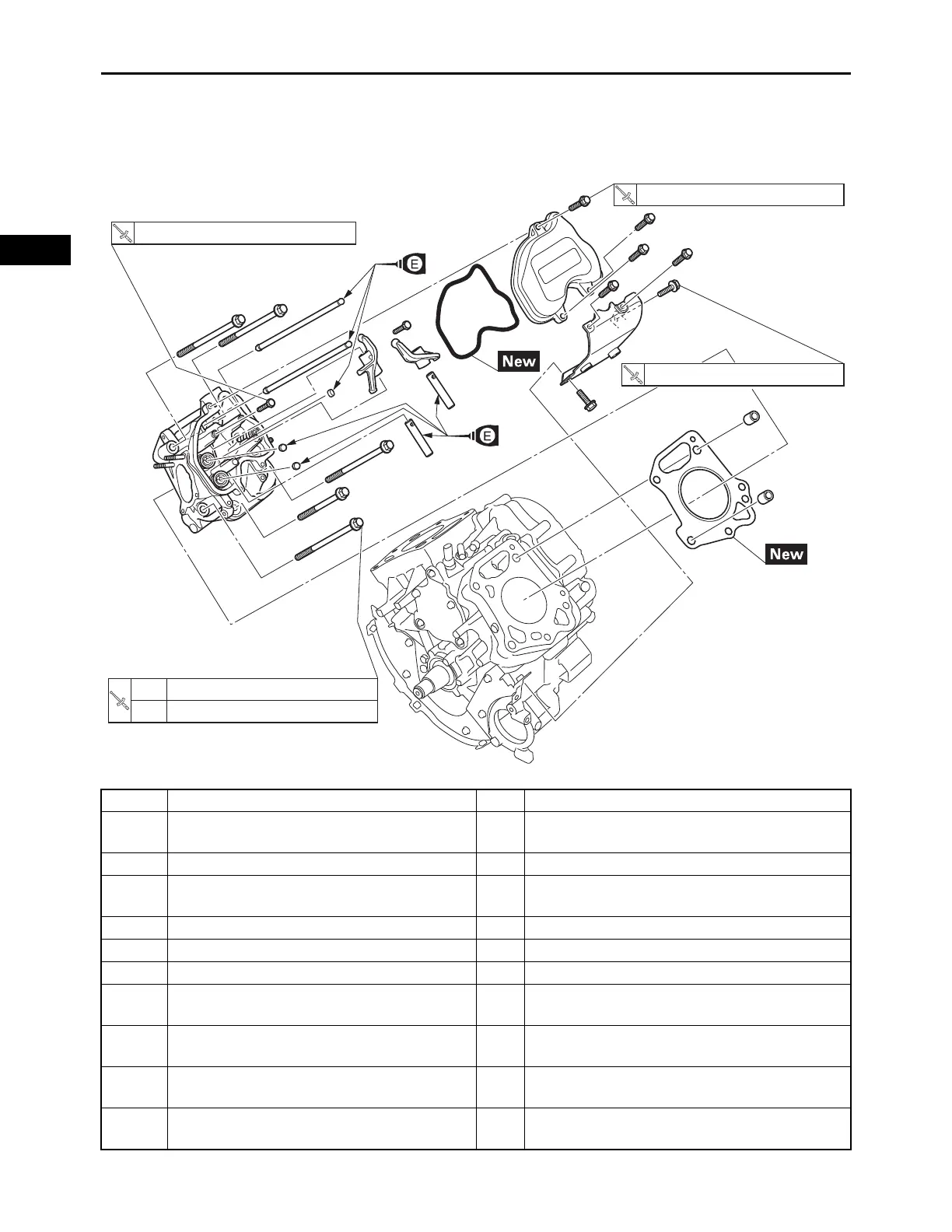

CYLINDER HEAD COVERS, CYLINDER HEADS
CYLINDER HEAD COVERS, CYLINDER HEADS
CYLINDER HEAD #1
Order Job/Parts to remove Q’ty Remarks
Removing the cylinder head covers, and
cylinder heads
Remove the parts in the order listed.
Air filter case Refer to “AIR FILTER” on page 3-3.
ECU, rectifier/regulator and fuse
Refer to “ECU, RECTIFIER/REGULATOR,
AND FUSES” on page 3-8.
High and low-pressure fuel pump Refer to “FUEL PUMPS” on page 4-1.
Oil cooler Refer to “OIL COOLER” on page 3-5.
Fan case Refer to “CASE AND FAN” on page 3-11.
Flywheel and stator coil assembly
Refer to “FLYWHEEL AND STATOR COIL
ASSEMBLY” on page 3-15.
Throttle body assembly
Refer to “THROTTLE BODY ASSEMBLY” on
page 4-6.
Intake manifold
Refer to “FUEL INJECTORS AND INTAKE
MANIFOLD” on page 4-9.
Starter motor assembly
Refer to “REMOVING THE STARTER
MOTOR” on page 5-37.
11 N・m (1.1 kgf・m, 8.0 lb・ft)
4.0 N・m (0.40 kgf・m, 2.9 lb・ft)
7 N・m (0.7 kgf・m, 5.1 lb・ft)
50 N・m (5.0 kgf・m, 36 lb・ft)
12 N・m (1.2 kgf・m, 8.7 lb・ft)
1st
2nd
