Yamaha MX775 - CASE AND FAN

3-11
1
2
3
4
5
6
7
8
9
10
ENGINE
CASE AND FAN
CASE AND FAN

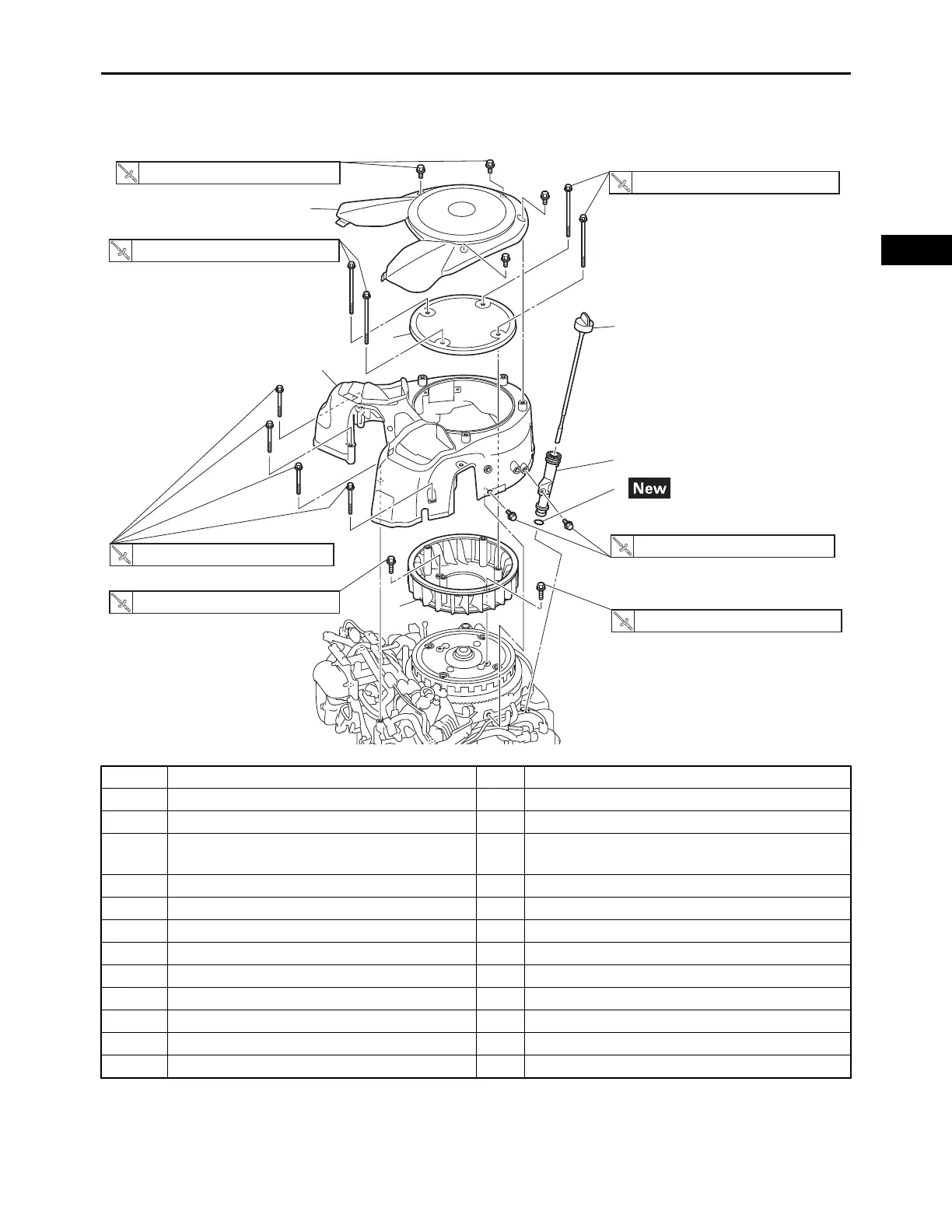

Order Job/Parts to remove Q’ty Remarks
Removing the case and fan Remove the parts in the order listed.
Air filter case Refer to “AIR FILTER” on page 3-3.
ECU and rectifier/regulator
Refer to “ECU, RECTIFIER/REGULATOR,
AND FUSES” on page 3-8.
Low-pressure fuel pump Refer to “FUEL PUMPS” on page 4-1.
Oil cooler Refer to “OIL COOLER” on page 3-5.
1 Oil filler cap 1
2 Oil filler pipe 1
3O-ring 1
4 Fan case cover 1
5 Grass screen 1
6 Fan case 1
7Fan 1
10 N・m (1.0 kgf・m, 7.2 lb・ft)
10 N・m (1.0 kgf・m, 7.2 lb・ft)
10 N・m (1.0 kgf・m, 7.2 lb・ft)
7 N・m (0.7 kgf・m, 5.1 lb・ft)
7 N・m (0.7 kgf・m, 5.1 lb・ft)
7 N・m (0.7 kgf・m, 5.1 lb・ft)
1
2
3
4
5
6
7
10 N・m (1.0 kgf・m, 7.2 lb・ft)
(4)
