Yamaha MX775 - Installing the Cover 2; Checking the Crankcase Cover 1

3-46
1
2
3
4
5
6
7
8
9
10
ENGINE
PISTONS, CAMSHAFT, CRANKCASE, AND CRANKSHAFT

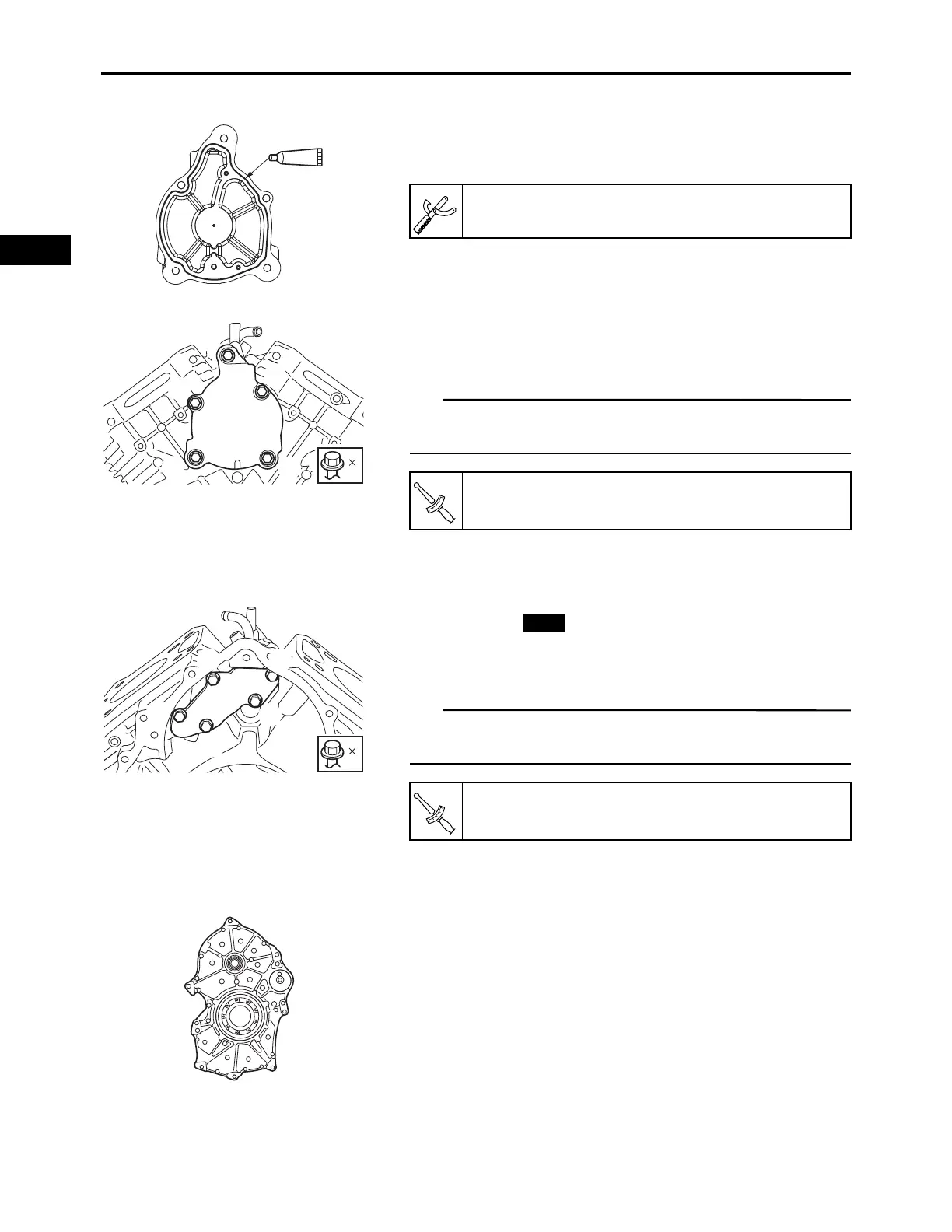

2. Apply:
• Sealant
(onto the crankcase mating surfaces)
3. Install:
•Cover 1
• Cover 1 bolts “1” to “5”
TIP
Tighten the bolts to the specified torque in order from “1” to
“5”.
INSTALLING THE COVER 2
1. Install:
•Gasket
•Cover 2
• Cover 2 bolts “1” to “5”
TIP
Tighten the bolts to the specified torque in order from “1” to
“5”.
CHECKING THE CRANKCASE COVER 1
1. Check:
• Crankcase cover 1
Damage  Replace.
• Bearing
Noise/wear/rotational failure  Replace.
Three bond No.1217G®
5
1
2
3
4
5
Cover 1 bolt:
9 N·m (0.9 kgf·m, 6.5 lb·ft)
T
R
.
.
5
1
2
3
4
5
Cover 2 bolt:
10 N·m (1.0 kgf·m, 7.2 lb·ft)
New
T
R
.
.
