Yamaha MX775 - Removing the Flywheel and Stator Coil Assembly

3-16
1
2
3
4
5
6
7
8
9
10
ENGINE
FLYWHEEL AND STATOR COIL ASSEMBLY
REMOVING THE FLYWHEEL AND STATOR COIL
ASSEMBLY
1. Remove:
• Air filter case
(Refer to “AIR FILTER” on page 3-3)
2. Remove:
• ECU and rectifier/regulator
(Refer to “ECU, RECTIFIER/REGULATOR, AND
FUSES” on page 3-8)
3. Remove:
• Low-pressure fuel pump
(Refer to “FUEL PUMPS” on page 4-1)
4. Remove:
• Oil cooler
(Refer to “OIL COOLER” on page 3-5)
5. Remove:
• Fan case cover
• Grass screen
• Fan case
•Fan
(Refer to “CASE AND FAN” on page 3-11)

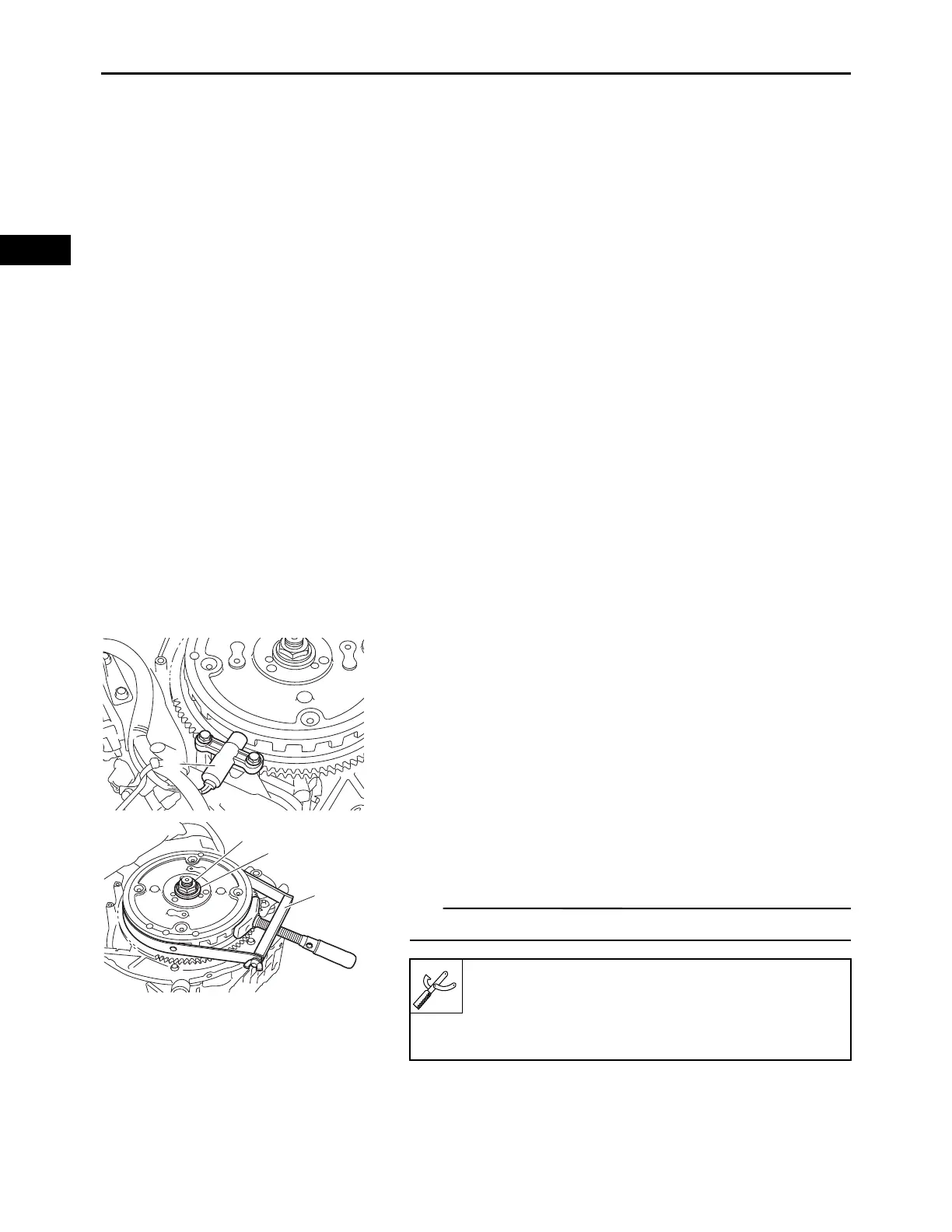

6. Remove:
• Crankshaft position sensor “1”
7. Remove:
• Flywheel nut “1”
• Washer “2”
TIP
Attach the primary clutch holder “3” to hold the flywheel.
1
1
3
2
Primary clutch holder:
YU-01235
Rotor holding tool:
90890-01235
