ENGINE
OIL COOLER

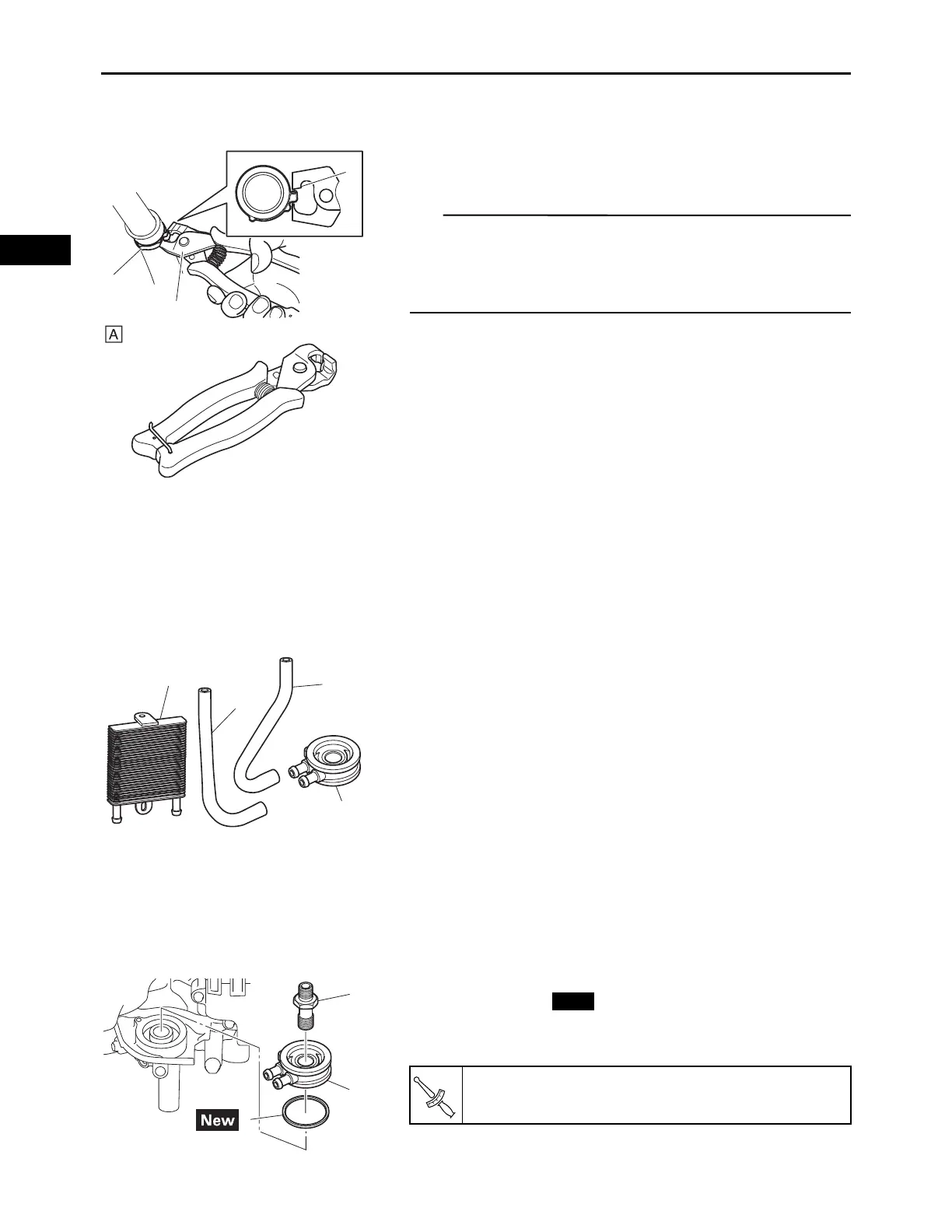

REMOVING THE OIL COOLER
1. Remove:
• Hose clamp (Clic-R) “1”
TIP
• Remove the hose clamp using the hose clamp pliers “2”.
• When removing the hose clamp, make sure that the thick
tip “a” of the hose clamp pliers is directed as shown in
the illustration.
2. Remove:
• Oil hose 1
• Oil hose 2
• Oil cooler
CHECKING THE OIL COOLER
1. Check:
• Oil cooler “1”
• Oil hose 1 “2”
• Oil hose 2 “3”
• Adapter “4”
Damage  Replace.
Dirt/clog  Clean.
INSTALLING THE OIL COOLER
1. Clean:
• Mating surfaces of the adapter and the crankcase
cover 2
(with a cloth dampened with lacquer thinner)
2. Install:
• Oil seal “1”
• Adapter “2”
• Adapter union bolt “3”
1
2
a
A. Hose clamp pliers
1
2
3
4
1
2
3
Adapter union bolt:
62 N·m (6.2 kgf·m, 45 lb·ft)
New
T
R
.
.
