Yamaha MX775 - Checking the Case and Fan; Installing the Case and Fan

3-13
1
2
3
4
5
6
7
8
9
10
ENGINE
CASE AND FAN

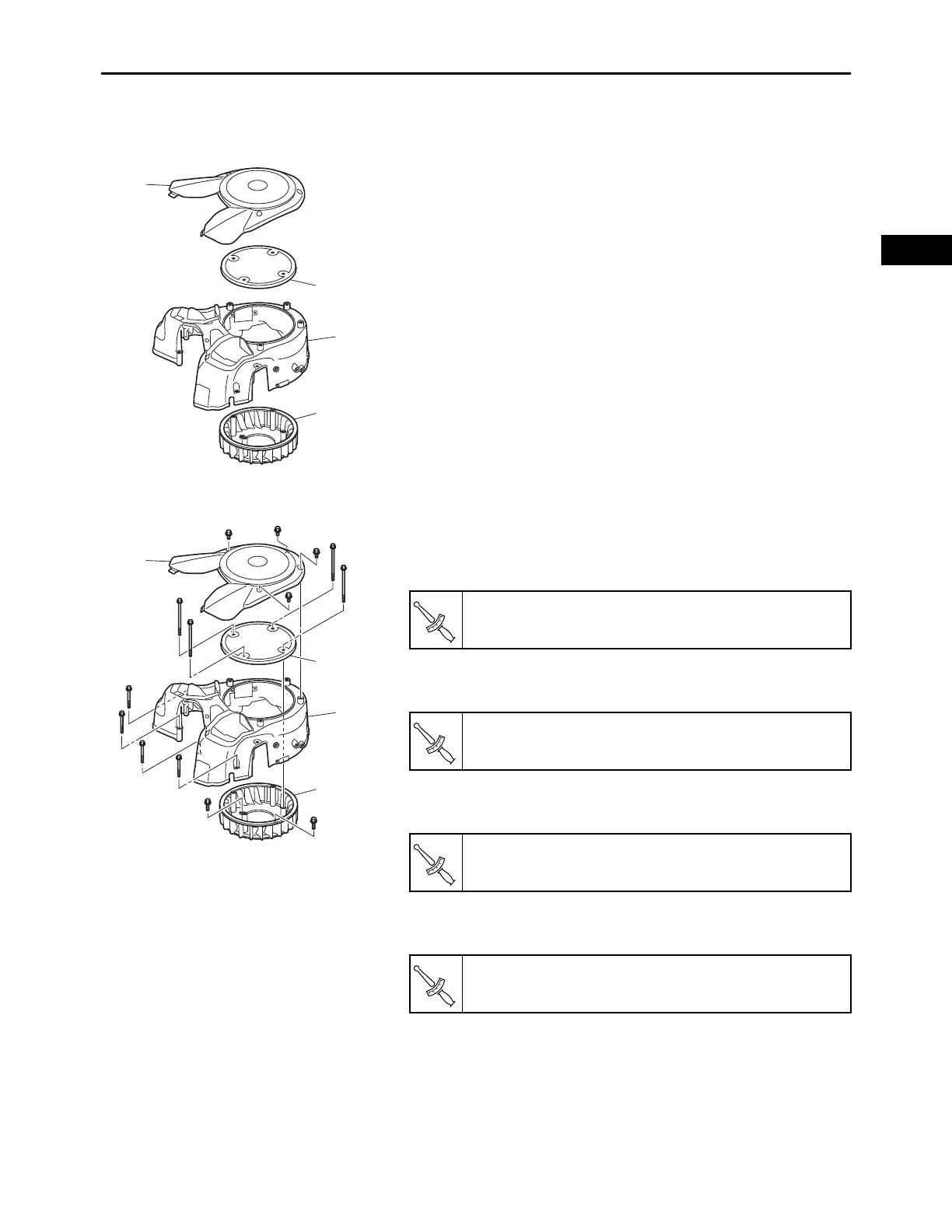

CHECKING THE CASE AND FAN
1. Check:
• Fan case cover “1”
• Grass screen “2”
• Fan case “3”
• Fan “4”
Damage  Replace.
Dirt/clog  Clean.
INSTALLING THE CASE AND FAN
1. Install:
• Fan “1”
• Fan bolts
• Fan case “2”
• Fan case bolts
• Grass screen “3”
• Grass screen bolts
• Fan case cover “4”
• Fan case cover bolts
1
2
3
4
4
3
2
1
Fan bolt:
10 N·m (1.0 kgf·m, 7.2 lb·ft)
Fan case bolt:
7 N·m (0.7 kgf·m, 5.1 lb·ft)
Grass screen bolt:
10 N·m (1.0 kgf·m, 7.2 lb·ft)
Fan case cover bolt:
7 N·m (0.7 kgf·m, 5.1 lb·ft)
T
R
.
.
T
R
.
.
T
R
.
.
T
R
.
.
