Yamaha MX775 - FLYWHEEL AND STATOR COIL ASSEMBLY

3-15
1
2
3
4
5
6
7
8
9
10
ENGINE

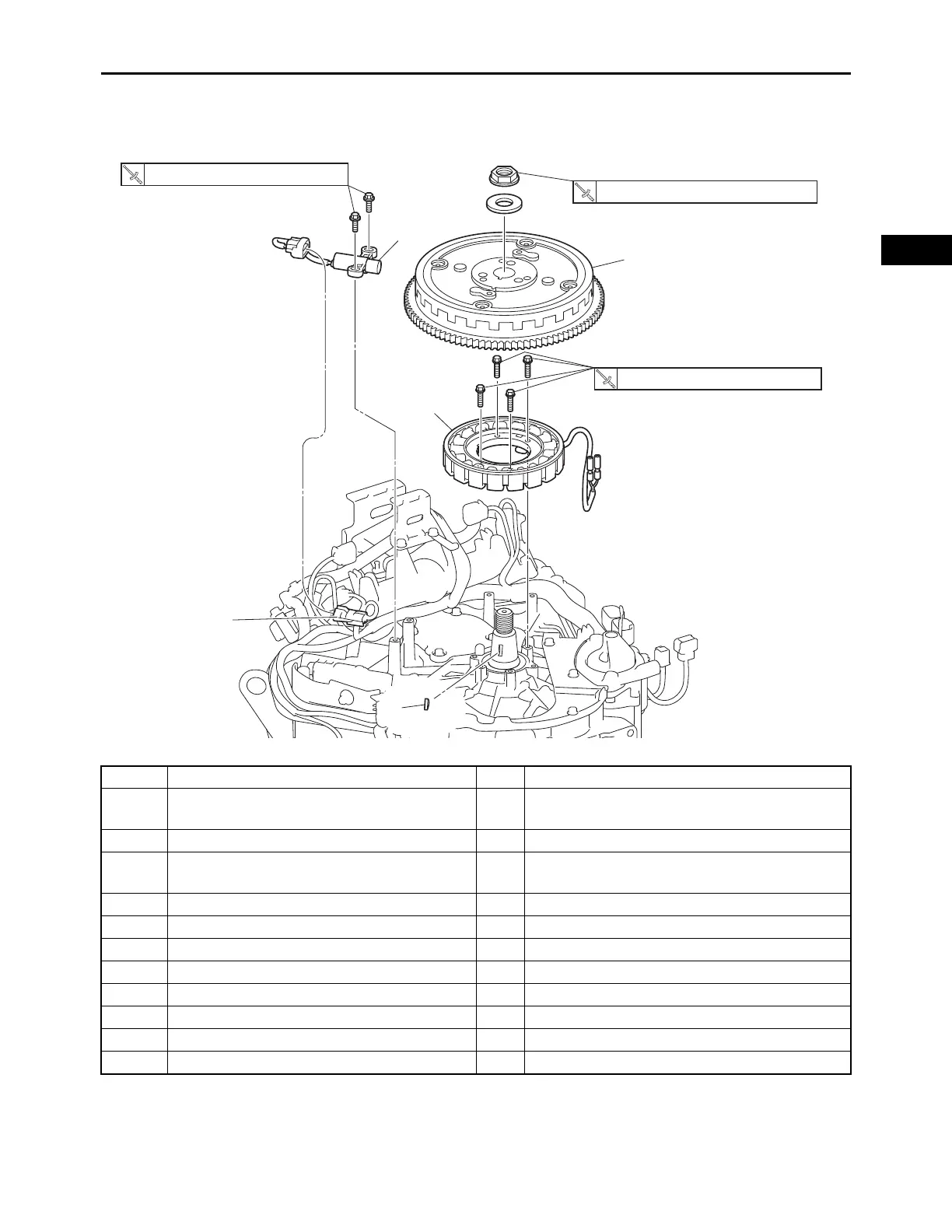

FLYWHEEL AND STATOR COIL ASSEMBLY
FLYWHEEL AND STATOR COIL ASSEMBLY
Order Job/Parts to remove Q’ty Remarks
Removing the flywheel and stator coil
assembly
Remove the parts in the order listed.
Air filter case Refer to “AIR FILTER” on page 3-3.
ECU and rectifier/regulator
Refer to “ECU, RECTIFIER/REGULATOR,
AND FUSES” on page 3-8.
Low-pressure fuel pump Refer to “FUEL PUMPS” on page 4-1.
Oil cooler Refer to “OIL COOLER” on page 3-5.
Fan case Refer to “CASE AND FAN” on page 3-11.
1 Crankshaft position sensor lead coupler 1 Disconnect.
2 Crankshaft position sensor 1
3 Flywheel 1
4 Woodruff key 1
5 Stator coil assembly 1
180 N・m (18 kgf・m, 130 lb・ft)
7 N・m (0.7 kgf・m, 5.1 lb・ft)
7 N・m (0.7 kgf・m, 5.1 lb・ft)
1
2
3
4
5
