FUEL
FUEL INJECTORS AND INTAKE MANIFOLD

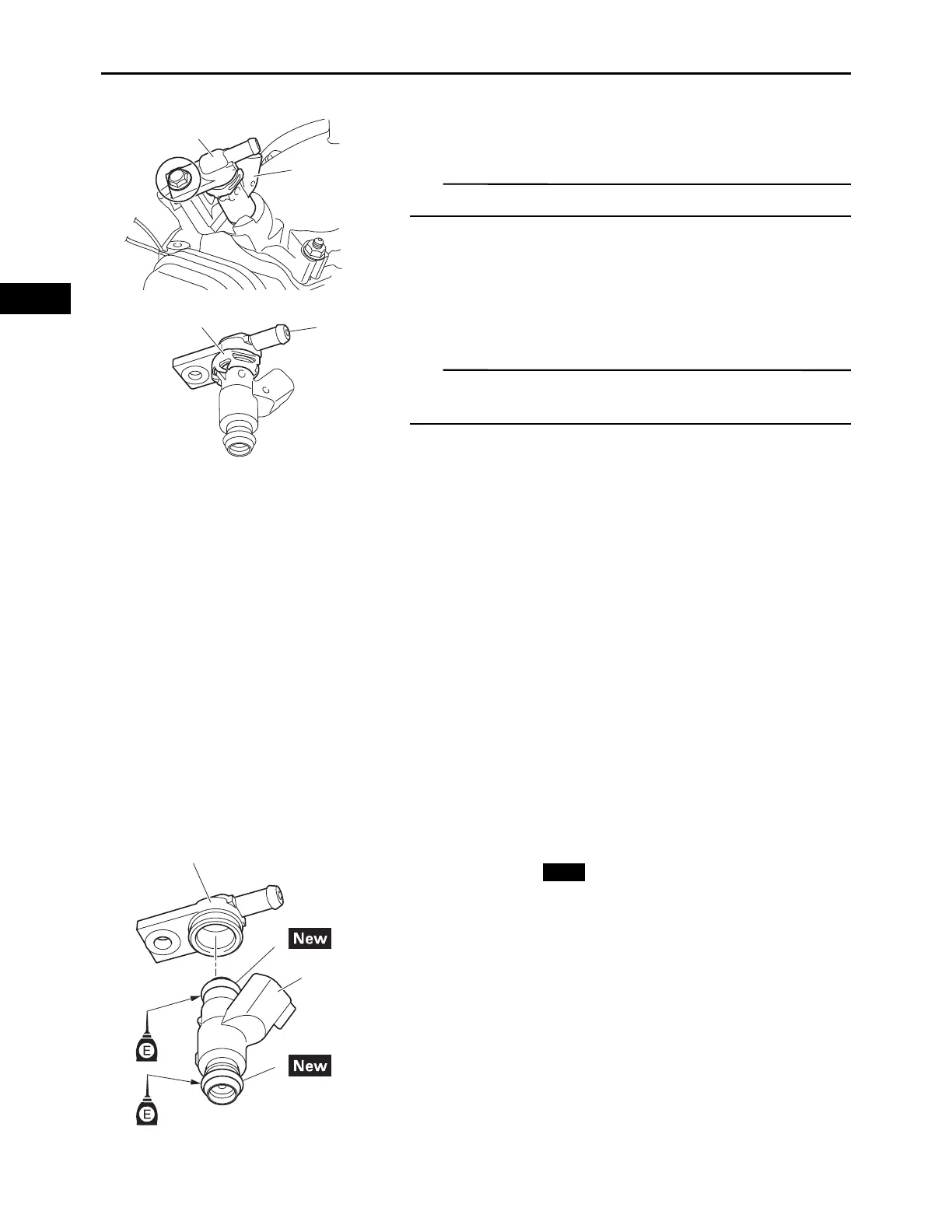

4.
Remove:
• Fuel injector
Remove the fuel injector “1” with the inlet pipe “2” installed.
5.
Remove:
• Inlet pipe
After removing the retainer “1”, remove the inlet pipe “2”
from the fuel injector.
6.
Check:
• Fuel injectors
Obstruction Replace and check the fuel pump/
fuel supply system.
Deposit Replace.
Damage Replace.
7.
Check:
• Fuel injector resistance
(Refer to “CHECKING THE FUEL INJECTORS” on
page 5-35)
INSTALLING THE FUEL INJECTORS
The following procedure applies to all of the fuel injectors
and related components.
1.
Install:
• Fuel injector “1”
• O-ring “2”
• Inlet pipe “3”
To Next Page
