ENGINE
CASE AND FAN
REMOVING THE CASE AND FAN
1. Remove:
• Air filter case
(Refer to “AIR FILTER” on page 3-3)
2. Remove:
• ECU and rectifier/regulator
(Refer to “ECU, RECTIFIER/REGULATOR, AND
FUSES” on page 3-8)
3. Remove:
• Low-pressure fuel pump
(Refer to “FUEL PUMPS” on page 4-1)
4. Remove:
• Oil cooler
(Refer to “OIL COOLER” on page 3-5)
5. Remove:
• Oil filler cap
• Oil filler pipe
6. Remove:

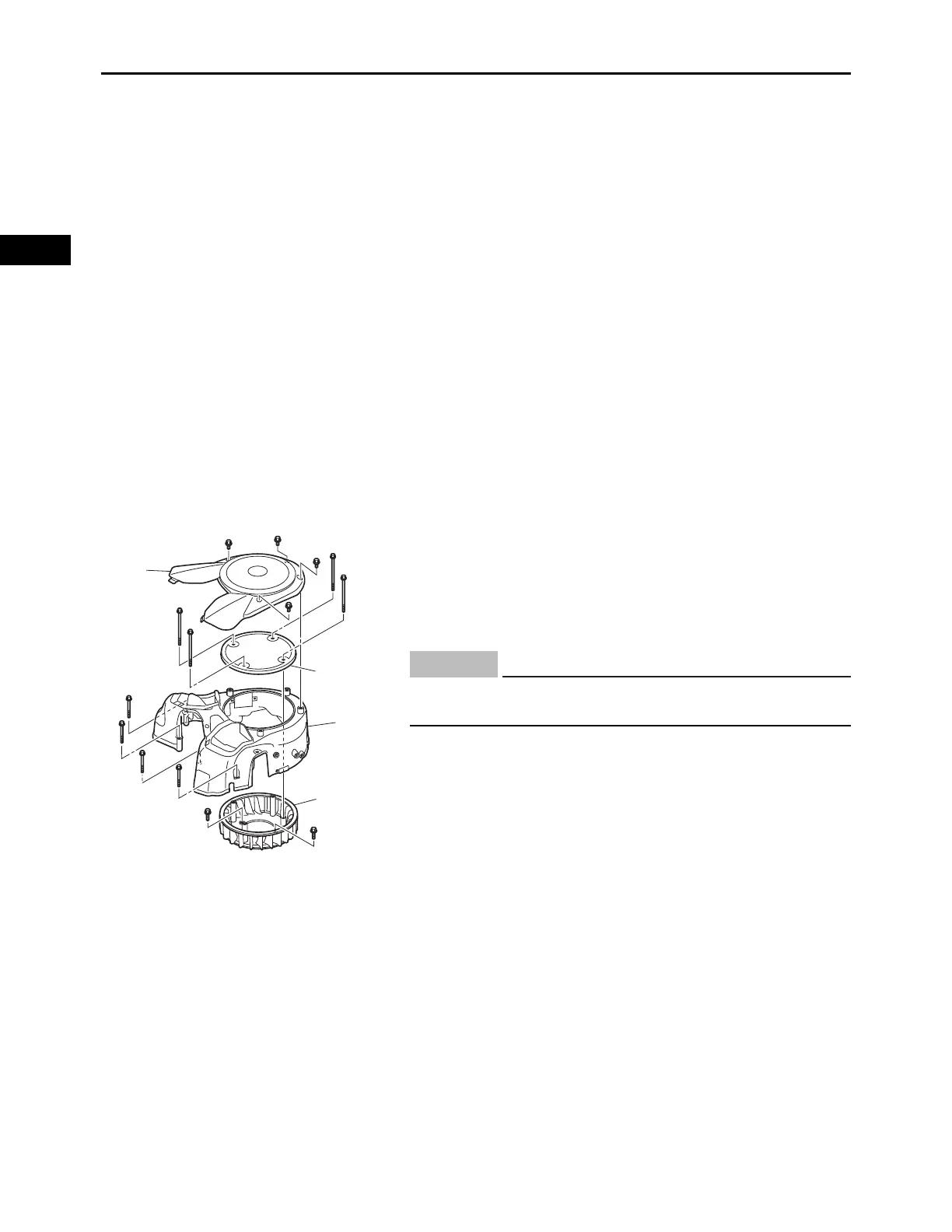

• Fan case cover “1”
• Grass screen “2”
• Fan case “3”
• Fan “4”
1
2
3
4
Because there is a risk of damage, remove the grass
screen “2” and fan case “3” in this order.
NOTICE
