Yamaha MX775 - CHECKING MANIFOLD ABSOLUTE PRESSURE SENSOR; CHECKING THE THROTTLE POSITION SENSOR

5-29
1
2
3
4
5
6
7
8
9
10
ELECTRICAL
ELECTRICAL COMPONENTS

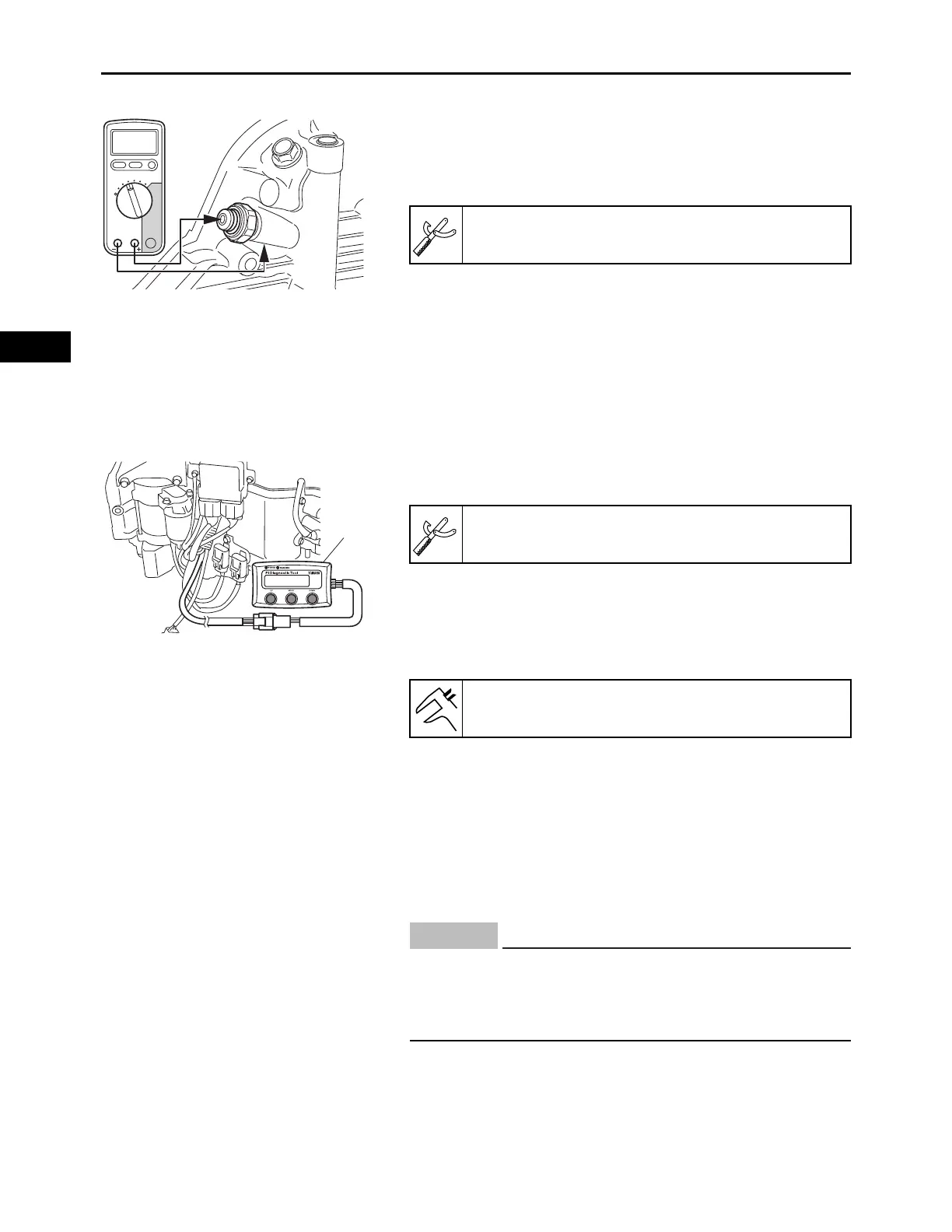

3. Connect:
• Digital circuit tester
(between the engine ground and oil pressure switch
terminal)
4. Check:
• Oil pressure switch continuity
No continuity  Replace the oil pressure switch.
CHECKING MANIFOLD ABSOLUTE PRESSURE
SENSOR
1. Connect:
• FI Diagnostic Tool “1”
2. Select Mode:
• Select “DIAG” Mode and “MAP” Diag Code.
3. Check:
• Compare “MAP” value with atomosphere pressure
Does not much  Replace the manifold absolute.
CHECKING THE THROTTLE POSITION SENSOR
1. Remove:
• Throttle body assembly
(Refer to “THROTTLE BODY ASSEMBLY” on page
4-6)
2. Check:
• Throttle position sensor maximum resistance
Out of specification  Replace the throttle position
sensor.
Model 88 Multimeter with tachometer:
YU-A1927
1
FI Diagnostic Tool:
90890-03253
Atomosphere pressure (Reference):
14–15 Psi
• Handle the throttle body assembly with special care.
• Never subject the throttle body assembly to strong
shocks. If the throttle body assembly is dropped,
replace it.
NOTICE
