Yamaha MX775 - IGNITION COILS

3-10
1
2
3
4
5
6
7
8
9
10
ENGINE

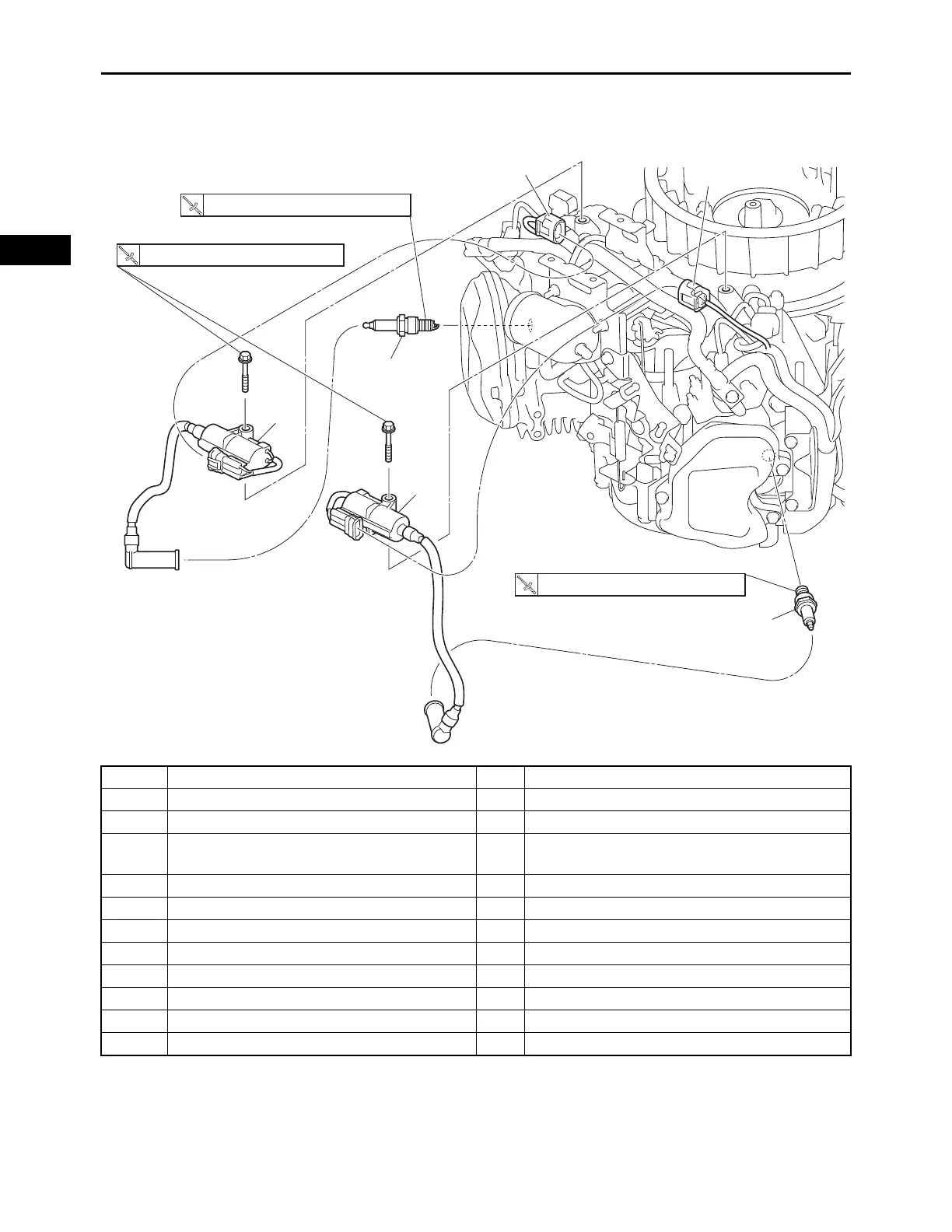

IGNITION COILS
IGNITION COILS
Order Job/Parts to remove Q’ty Remarks
Removing the ignition coils Remove the parts in the order listed.
Air filter case Refer to “AIR FILTER” on page 3-3.
ECU and rectifier/regulator
Refer to “ECU, RECTIFIER/REGULATOR,
AND FUSES” on page 3-8.
Low-pressure fuel pump Refer to “FUEL PUMPS” on page 4-1.
Oil cooler Refer to “OIL COOLER” on page 3-5.
Fan case Refer to “CASE AND FAN” on page 3-11.
1 Ignition coil #1 lead coupler 1 Disconnect.
2 Ignition coil #2 lead coupler 1 Disconnect.
3 Ignition coil #1 1
4 Ignition coil #2 1
5 Spark plug 2
20 N・m (2.0 kgf・m, 14 lb・ft)
20 N・m (2.0 kgf・m, 14 lb・ft)
7 N・m (0.7 kgf・m, 5.1 lb・ft)
1
2
4
3
5
5
