Yamaha MX775 - PISTONS, CAMSHAFT, CRANKCASE, AND CRANKSHAFT

3-38
1
2
3
4
5
6
7
8
9
10
ENGINE
PISTONS, CAMSHAFT, CRANKCASE, AND CRANKSHAFT
PISTONS, CAMSHAFT, CRANKCASE, AND CRANKSHAFT

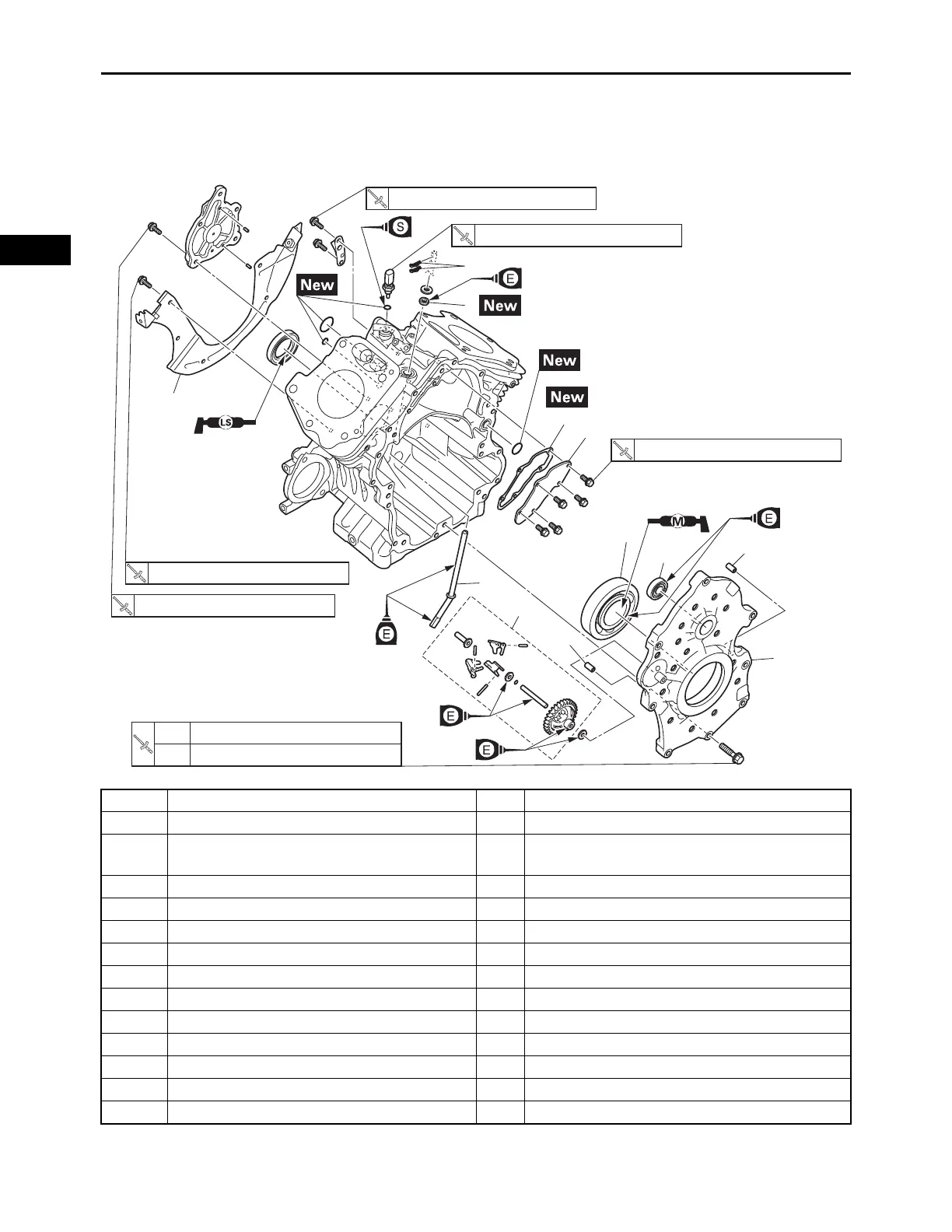

CRANKCASE
Order Job/Parts to remove Q’ty Remarks
Removing the crankcase Remove the parts in the order listed.
Cylinder head assembly
Refer to “CYLINDER HEAD COVERS, CYL-
INDER HEADS” on page 3-20.
1 Crankcase cover 1 1
2 Dowel pin 2
3 Bearing 1
4 Bearing 1
5 Clip 2
6Governor fork 1
7 Flyweight shaft assembly 1
8 Oil seal 1
9Cover 2 1
10 Gasket 1
11 Scroll air shroud 1
1
2
2
3
4
5
6
7
8
9
10
11
(8)
(5)
(5)
9 N・m (0.9 kgf・m, 6.5 lb・ft)
10 N・m (1.0 kgf・m, 7.2 lb・ft)
10 N・m (1.0 kgf・m, 7.2 lb・ft)
12 N・m (1.2 kgf・m, 8.7 lb・ft)
7 N・m (0.7 kgf・m, 5.1 lb・ft)
30 N・m (3.0 kgf・m, 22 lb・ft)
12 N・m (1.2 kgf・m, 8.7 lb・ft)
1st
2nd
