Yamaha MX775 - Page 79

3-39
1
2
3
4
5
6
7
8
9
10
ENGINE

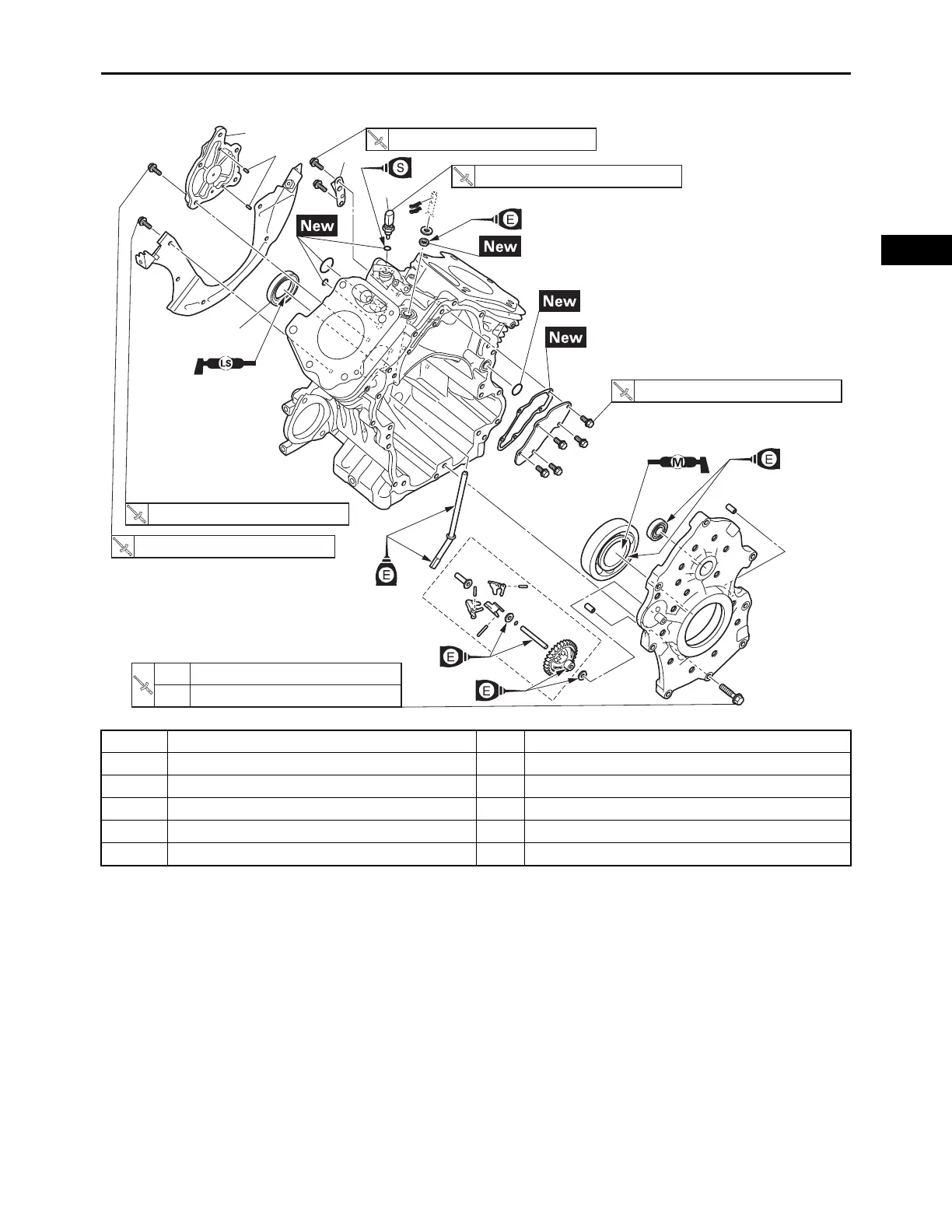

PISTONS, CAMSHAFT, CRANKCASE, AND CRANKSHAFT
Order Job/Parts to remove Q’ty Remarks
12 Cover 1 1
13 Dowel pin 2
14 Reed valve 1
15 Engine temperature sensor 1
16 Oil seal 1
12
13
14
15
16
(8)
(5)
(5)
9 N・m (0.9 kgf・m, 6.5 lb・ft)
10 N・m (1.0 kgf・m, 7.2 lb・ft)
10 N・m (1.0 kgf・m, 7.2 lb・ft)
12 N・m (1.2 kgf・m, 8.7 lb・ft)
7 N・m (0.7 kgf・m, 5.1 lb・ft)
30 N・m (3.0 kgf・m, 22 lb・ft)
12 N・m (1.2 kgf・m, 8.7 lb・ft)
1st
2nd
