Yamaha MX775 - Pistons, Camshaft, and Crankshaft

3-40
1
2
3
4
5
6
7
8
9
10
ENGINE

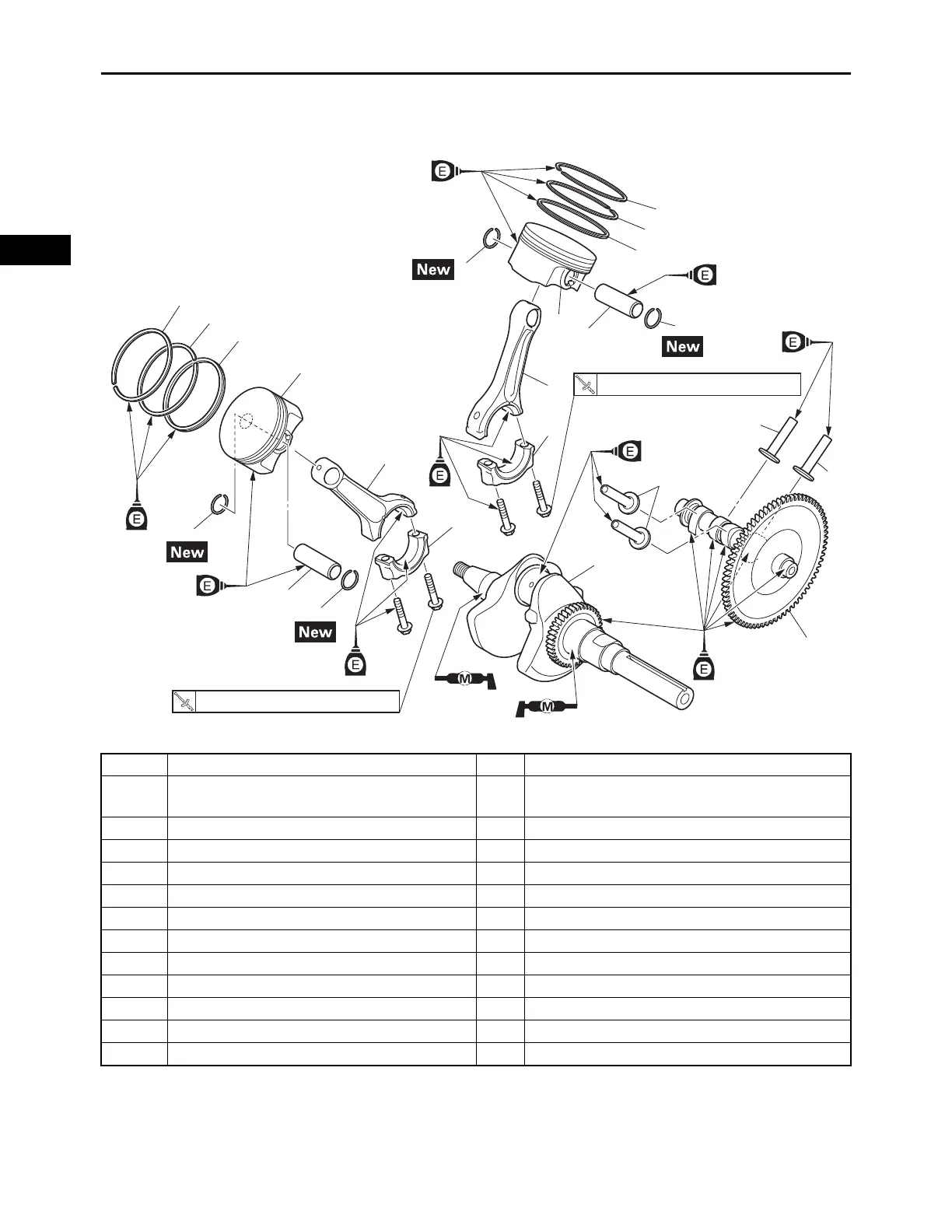

PISTONS, CAMSHAFT, CRANKCASE, AND CRANKSHAFT
PISTONS, CAMSHAFT, AND CRANKSHAFT
Order Job/Parts to remove Q’ty Remarks
Removing the pistons, camshaft, and
crankshaft
Remove the parts in the order listed.
1 Camshaft 1
2 Valve lifter 4
3 Connecting rod cap 2
4 Crankshaft 1
5 Connecting rod 2
6 Piston pin circlip 4
7 Piston pin 2
8Piston 2
9Top ring 2
10 2nd ring 2
11 Oil ring 2
1
2
2
2
3
4
5
6
6
7
8
9
10
11
3
5
6
6
7
8
9
10
11
20 N・m (2.0 kgf・m, 14 lb・ft)
20 N・m (2.0 kgf・m, 14 lb・ft)
