Yamaha MX775 - DISASSEMBLING THE STARTER MOTOR

5-38
1
2
3
4
5
6
7
8
9
10
ELECTRICAL
ELECTRIC STARTING SYSTEM

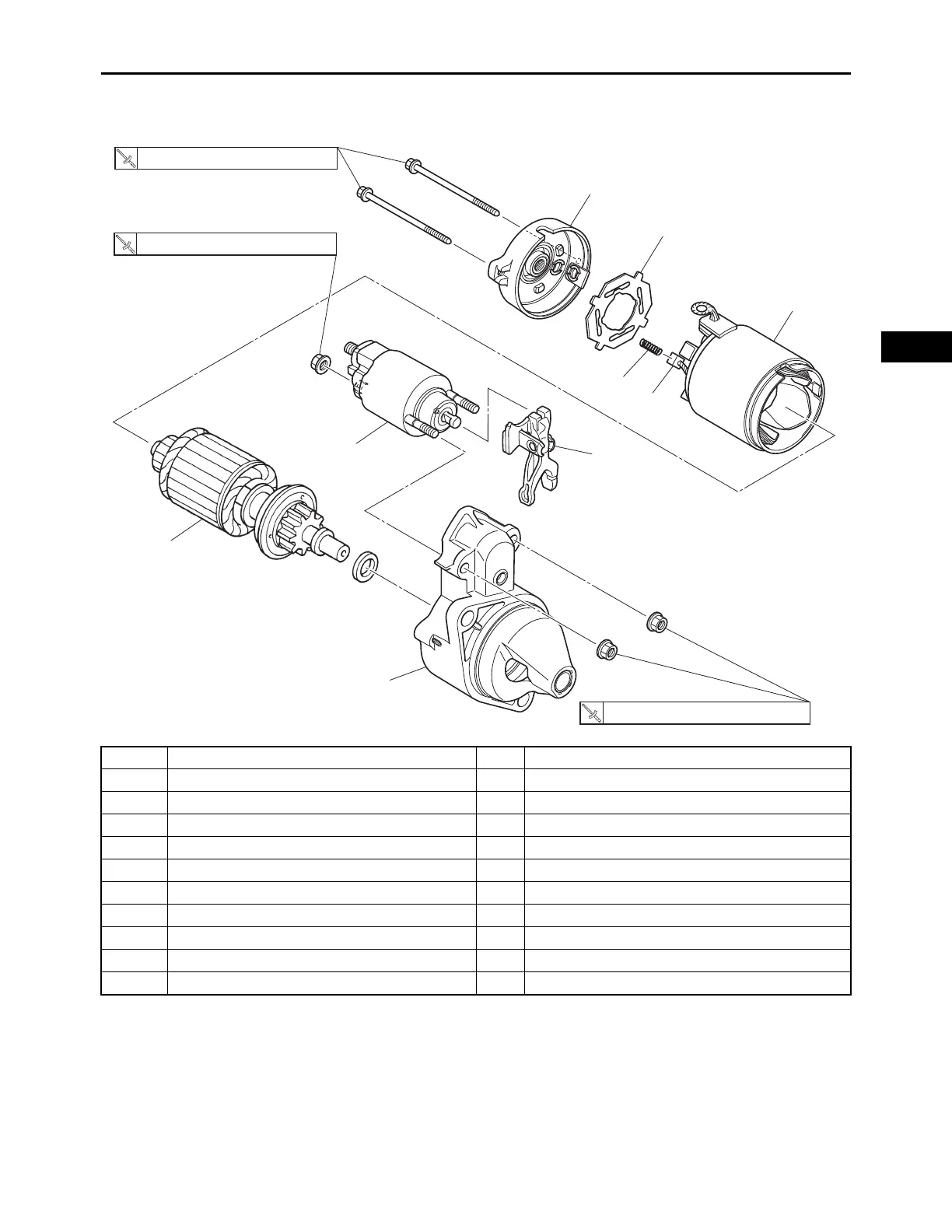

DISASSEMBLING THE STARTER MOTOR
Order Job/Parts to remove Q’ty Remarks
Disassembling the starter motor Disassemble the parts in the order listed.
1 Rear bracket 1
2 Insulator 1
3 Brush spring 4
4 Brush 4
5Yoke 1
6 Armature 1
7 Starter relay 1
8 Starter drive lever 1
9 Starter case 1
1
2
3
4
5
6
7
8
9
11 N・m (1.1 kgf・m, 8.0 lb・ft)
9 N・m (0.9 kgf・m, 6.5 lb・ft)
6 N・m (0.6 kgf・m, 4.3 lb・ft)
