OIL PUMP
with the crankcase cover 2, apply LOCTITE®, and tighten
to the specified torque.

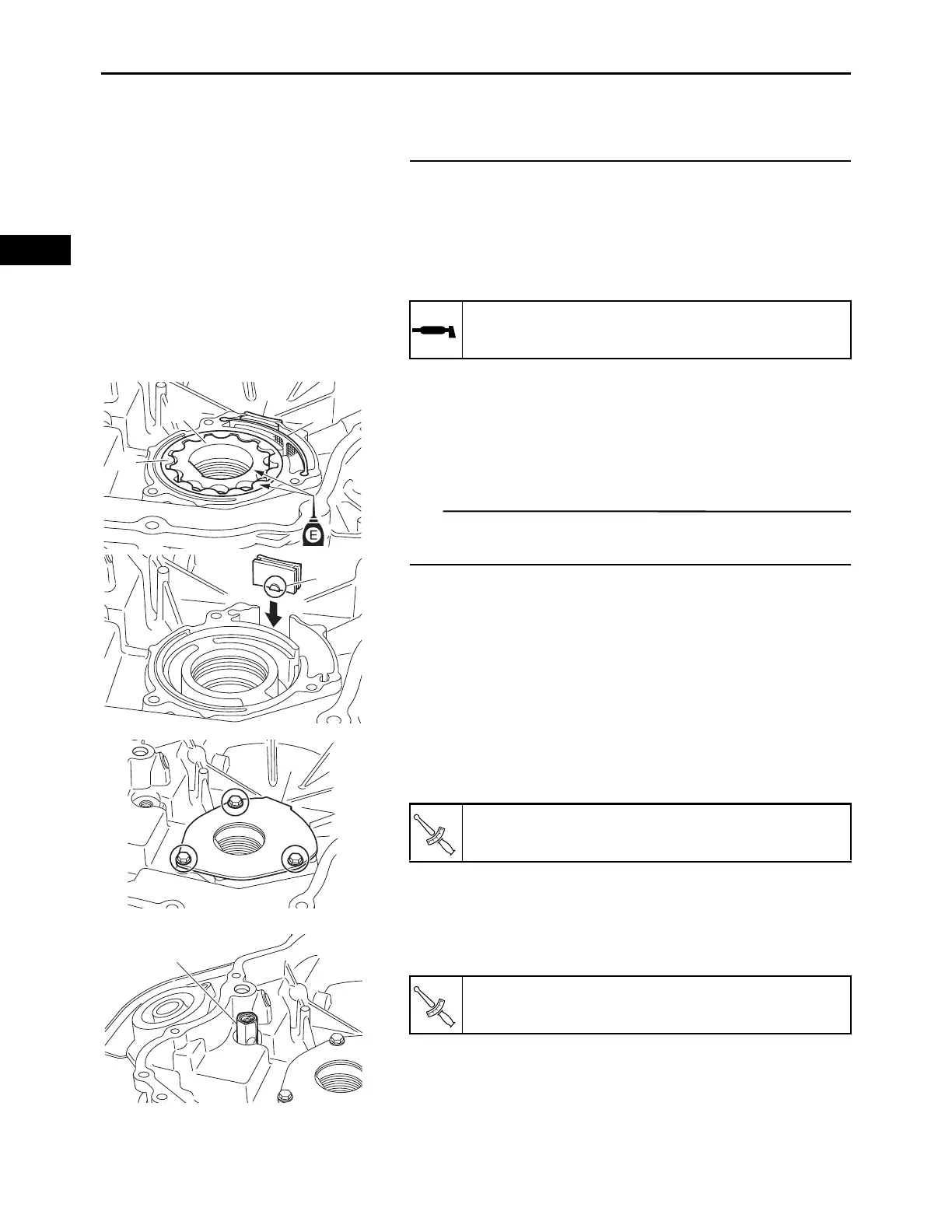

ASSEMBLING THE OIL PUMP
1. Lubricate:
• Inner rotor
• Outer rotor
2. Install:
• Outer rotor “1”
• Inner rotor “2”
• Oil strainer “3”
• Oil strainer cover “4”
TIP
Face portion “a” of the oil strainer cover downward as
shown in the illustration, and install it.
3. Install:
• Oil pump cover “1”
• Oil pump cover bolts
4. Install:
• Relief valve “1”
Recommended lubricant:
Engine oil
1
2
3
4
a
1
Oil pump cover bolt:
10 N·m (1.0 kgf·m, 7.2 lb·ft)
T
R
.
.
1
Relief valve:
30 N·m (3.0 kgf·m, 22 lb·ft)
T
R
.
.
