Yamaha MX775 - OIL PUMP

3-33
1
2
3
4
5
6
7
8
9
10
ENGINE

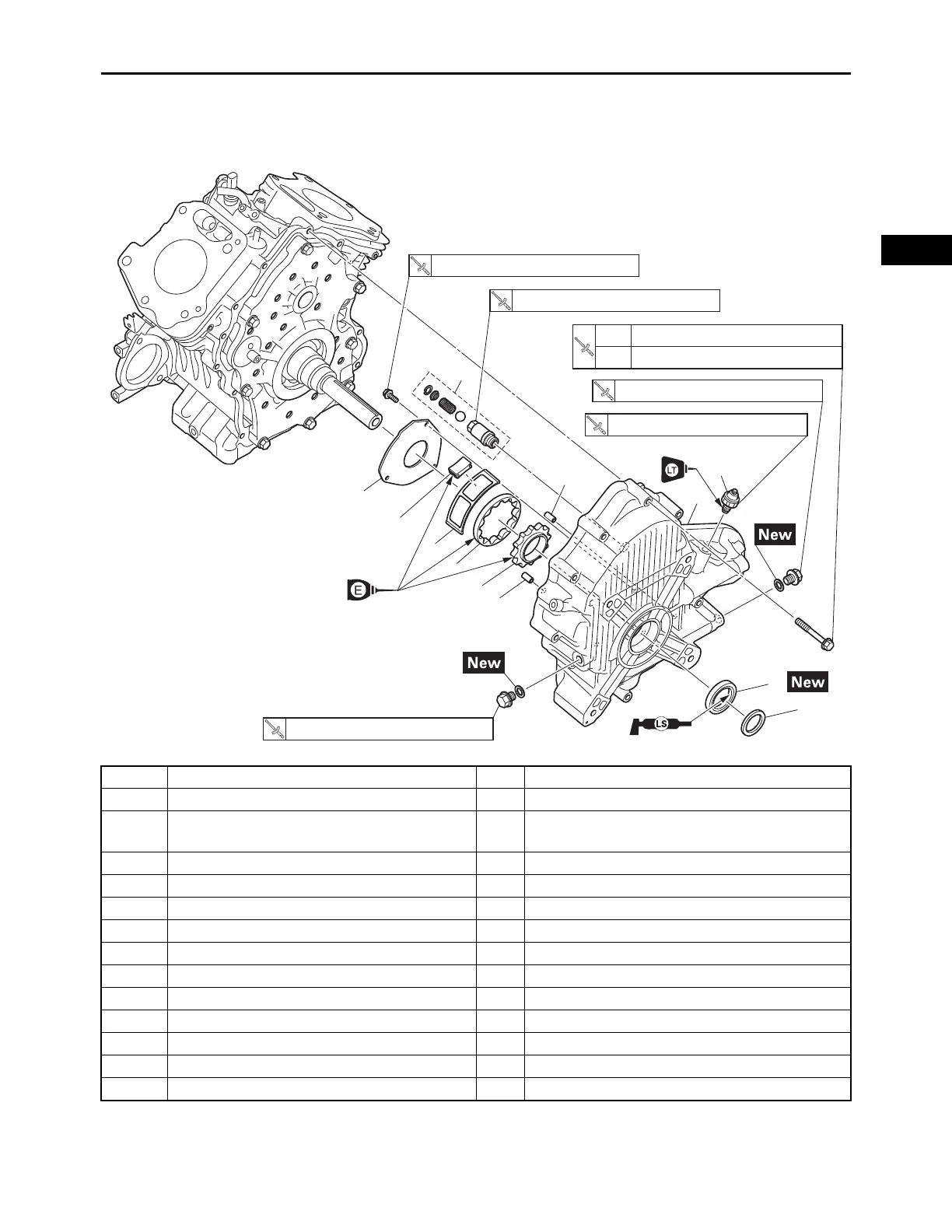

OIL PUMP
OIL PUMP
Order Job/Parts to remove Q’ty Remarks
Removing the oil pump Remove the parts in the order listed.
Cylinder head assembly
Refer to “CYLINDER HEAD COVERS, CYL-
INDER HEADS” on page 3-20.
1 Collar 1
2 Crankcase cover 2 1
3 Dowel pin 2
4 Relief valve 1
5 Oil pump cover 1
6 Oil strainer cover 1
7 Oil strainer 1
8 Inner rotor 1
9 Outer rotor 1
10 Oil seal 1
11 Oil pressure switch 1
10 N・m (1.0 kgf・m, 7.2 lb・ft)
27 N・m (2.7 kgf・m, 20 lb・ft)
27 N・m (2.7 kgf・m, 20 lb・ft)
30 N・m (3.0 kgf・m, 22 lb・ft)
30 N・m (3.0 kgf・m, 22 lb・ft)
12 N・m (1.2 kgf・m, 8.7 lb・ft)
1st
2nd
1
2
3
3
4
5
6
7
9
8
10
(11)
(3)
11
8 N・m (0.8 kgf・m, 5.8 lb・ft)
