3-7
1
2
3
4
5
6
7
8
9
10

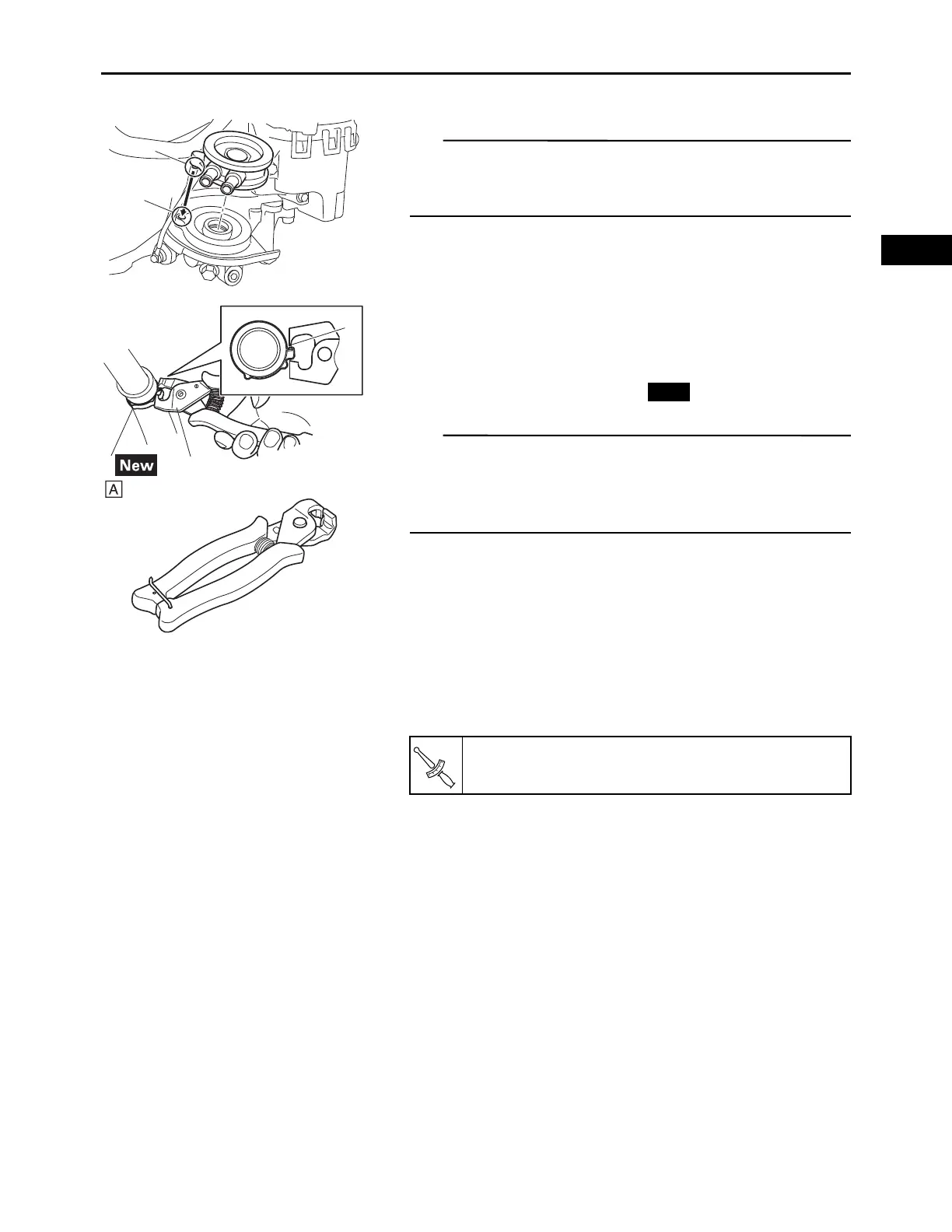

ENGINE
OIL COOLER
TIP
• Make sure the oil seal is positioned properly.
• Align the projection “a” on the adapter with the hole “b” in
the crankcase cover 2.
3. Install:
•Oil filter
• Oil hose 2
• Oil hose 1
• Hose clamp (Clic-R) “1”
TIP
• Install the hose clamp using the hose clamp pliers “2”.
• When installing the hose clamp, make sure that the thin
tip “a” of the hose clamp pliers is directed as shown in
the illustration.
4. Install:
• Oil cooler
• Oil cooler bolts
a
b
1
2
a
A. Hose clamp pliers
New
Oil cooler bolt:
9 N·m (0.9 kgf·m, 6.5 lb·ft)
T
R
.
.
