3-18
1
2
3
4
5
6
7
8
9
10
ENGINE
FLYWHEEL AND STATOR COIL ASSEMBLY

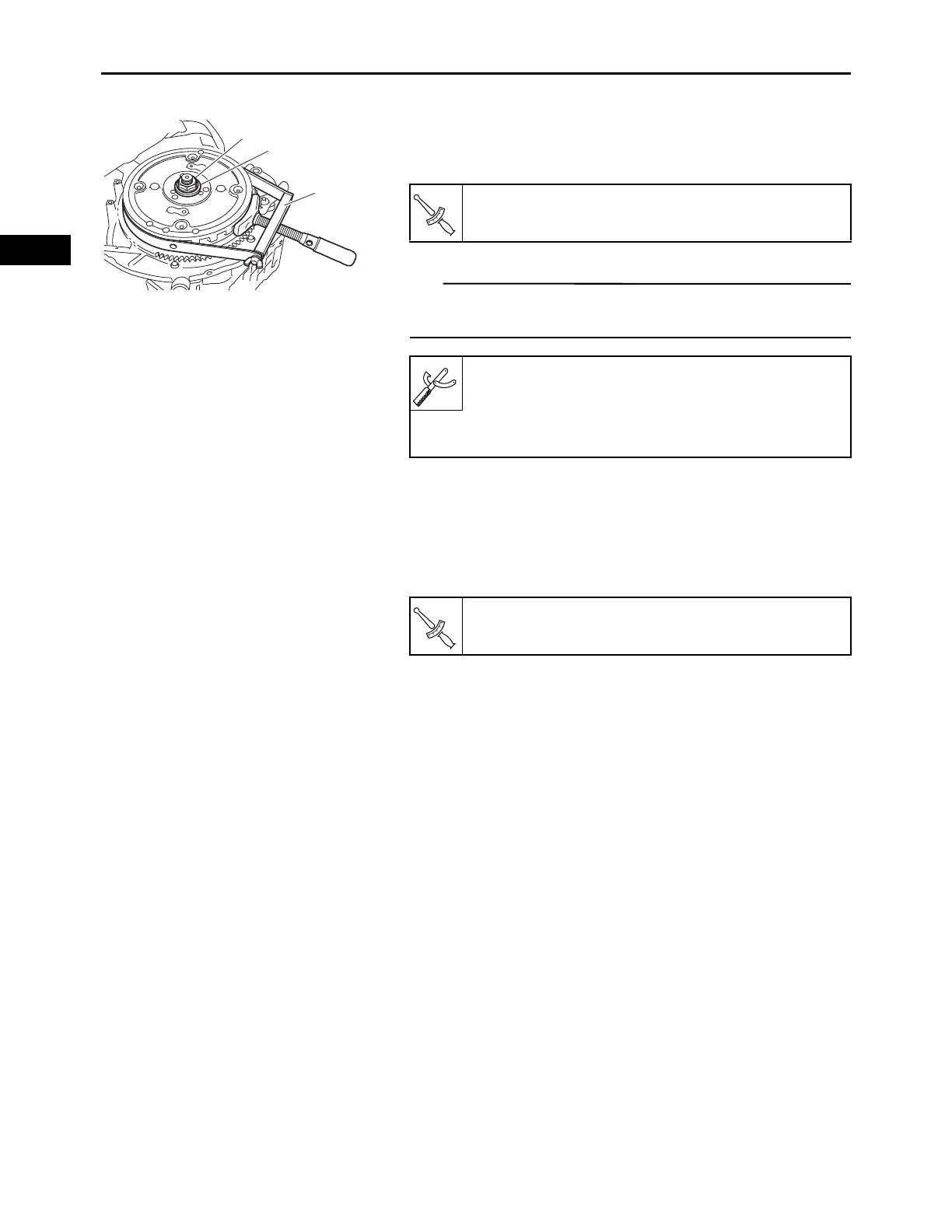

3. Install:
• Washer “1”
• Flywheel nut “2”
TIP
Tighten the flywheel nut “2” using the primary clutch holder
“3” to hold the flywheel.
4. Install:
• Crankshaft position sensor
• Crankshaft position sensor bolts
(Refer to “INSTALLING THE CRANKSHAFT POSI-
TION SENSOR” on page 3-19)
5. Install:
•Fan
• Fan case
• Grass screen
• Fan case cover
(Refer to “CASE AND FAN” on page 3-11)
6. Install:
• Low-pressure fuel pump
(Refer to “FUEL PUMPS” on page 4-1)
7. Install:
• ECU and rectifier/regulator
(Refer to “ECU, RECTIFIER/REGULATOR, AND
FUSES” on page 3-8)
8. Install:
• Air filter case
(Refer to “AIR FILTER” on page 3-3)
1
3
2
Flywheel nut:
180 N·m (18 kgf·m, 130 lb·ft)
Primary clutch holder:
YU-01235
Rotor holding tool:
90890-01235
T
R
.
.
Crankshaft position sensor bolt:
7 N·m (0.7 kgf·m, 5.1 lb·ft)
T
R
.
.
